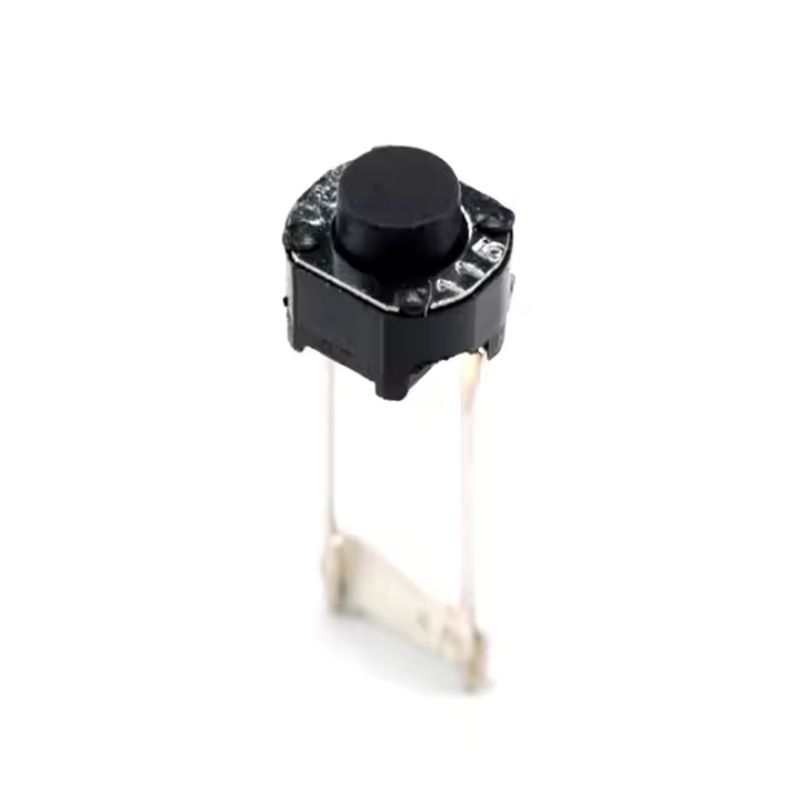

5.3*6 Mini 50mA 12VDC Tact Switch 2 Long Pin Tactile Switches

This product has a minimum quantity of 1000

Buy Now

Technical Parameters

LED

Item

Tactile Switch 6x6 Dip

Life Cycles

100/200/500/1000 thousand cycles

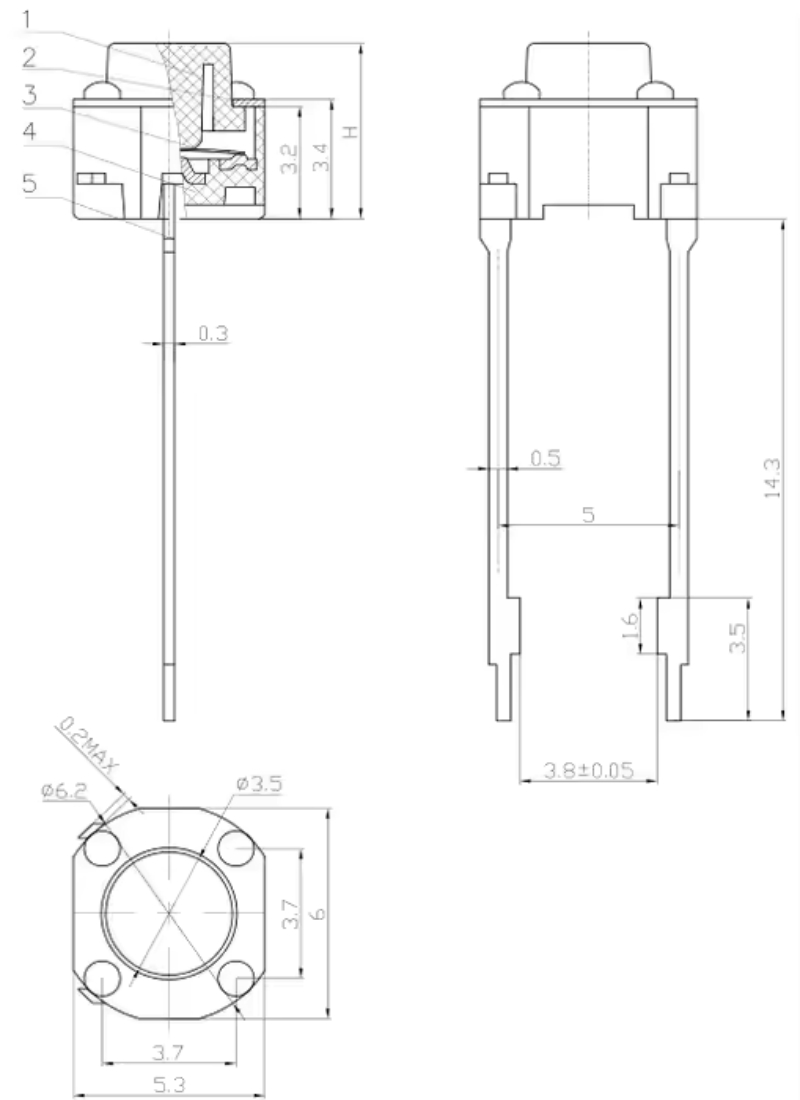

Dimension

6*6*H/H=4.3mm/5mm

Travel

0.25±0.1mm

Operating Force

100gf/160gf/260gf

Max.Contact Resistance

100mΩ

Insulation Resistance

100mΩ min.100VDC

Dielectric Strength

250VAC/min

Certificate

CE,Rohs,CQC

Button color

Black

Description

5.3*6 Mini 50mA 12VDC Tact Switch 2 Long Pin Tactile Switches

Rating	50mA 120VDC
Dielectric strength	250VAC for 1 min
Contact resistance	Max.100mΩ
Operating Force	100gf/160gf/260gf
Insulation Resistance	100mΩ min.100V DC
Life Cycles	100/200/500/1000 thousand cycles
Operating Temperature	-20℃~+70℃
Dimension	6×6×H/H=4.3mm/5mm
