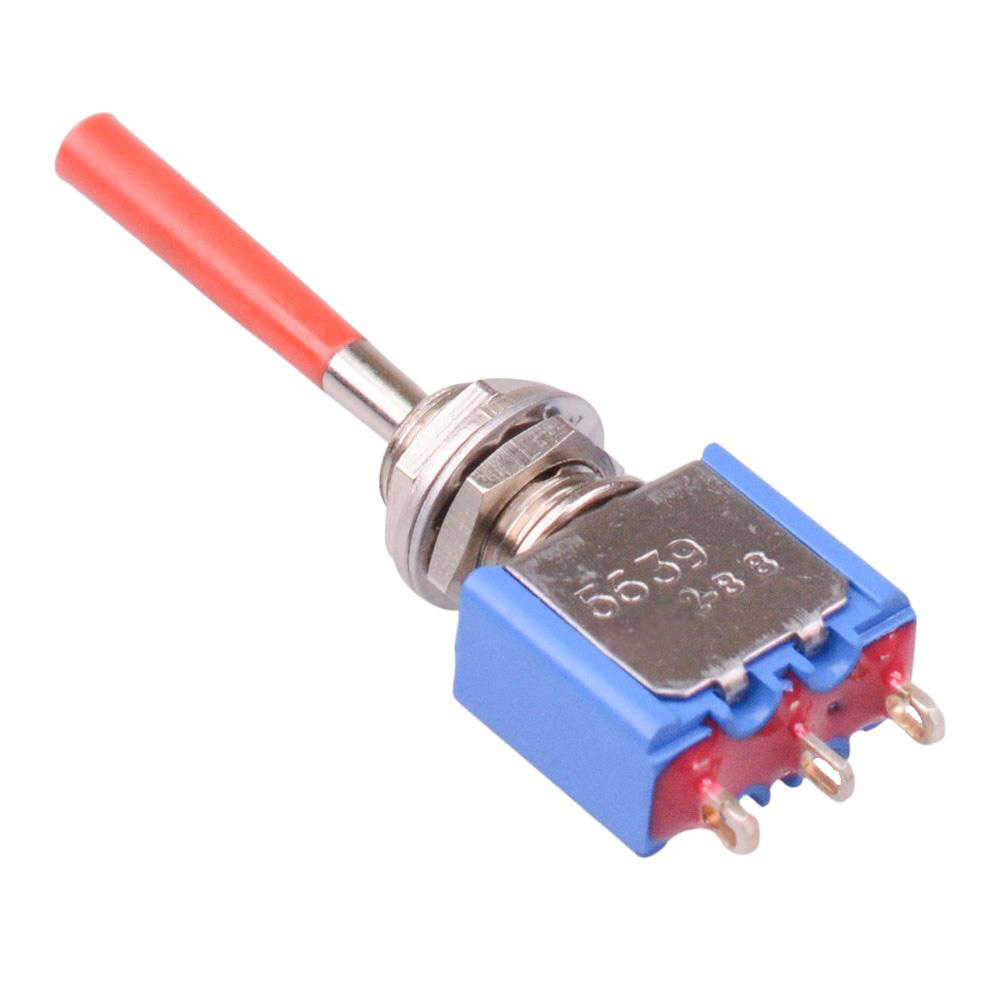

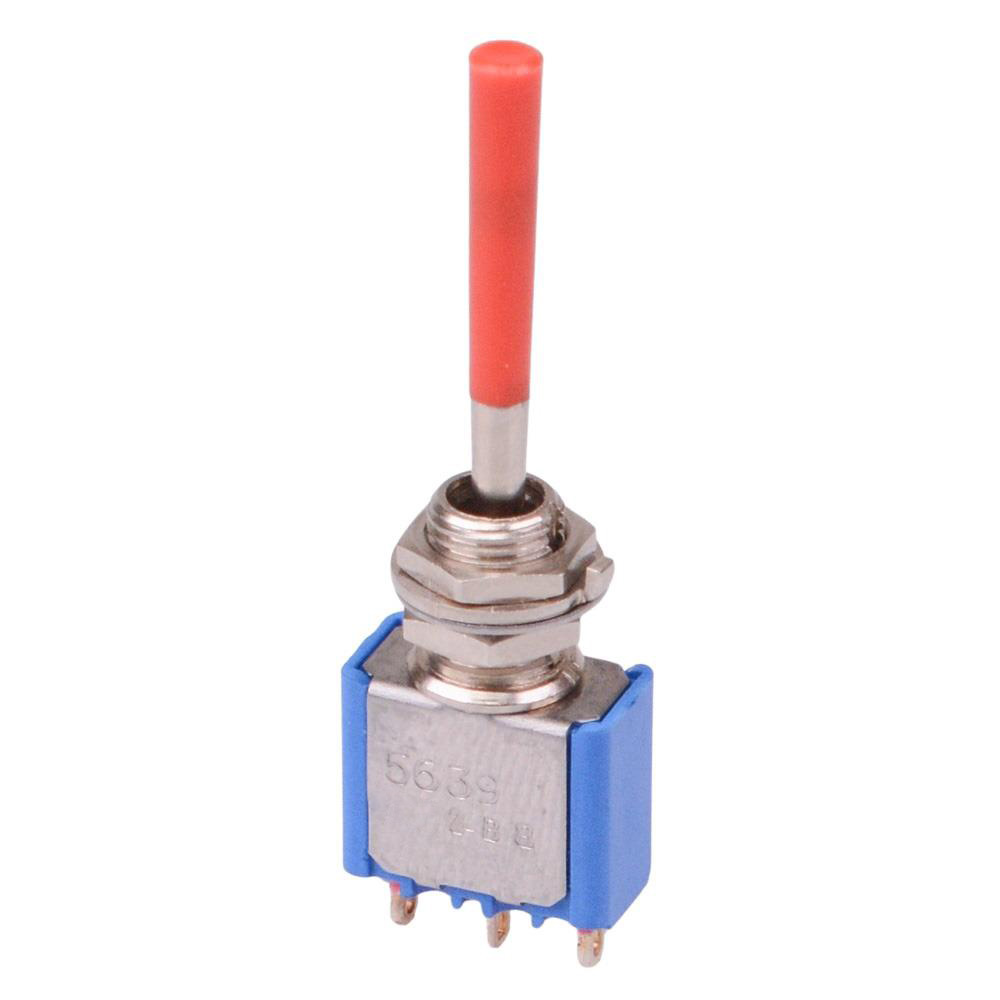

Red Long Lever On-Off-On Miniature Toggle Switch SPDT

Buy Now

Specifications

Attributes List
Actuation	Latching
MOQ	1
Contact Configuration	SPDT
Contact Material	Silver
Contact Rating	4A 30VDC
Current Rating	4A
Illuminated	No
Electrical Life	50,000 Cycles
Mounting Style	Panel
Number of Poles	1
Number of Positions	3
Operating Temperature	-40°C to +85°C
Panel Cut Out	6.5mm
Panel Thickness	2.5mm
Product Series	5000
Switch Operation	On-Off-On
Terminal Type	Solder
Voltage Rating	30VDC

Description

Red Long Lever On-Off-On Miniature Toggle Switch SPDT 5639AB-21+U646

The 5639AB-21+U646 is a miniature toggle switch featuring On-Off-On SPDT contacts, from the socoje 5000 series of switches. The switches feature solder lug terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.

Solder lug terminals

Contact rating: 4A 30VDC

Panel cut-out: 6.5mm

23.1mm length lever

Silver contacts

Epoxy sealed terminals

Dimensions: 34.2 x 7.0 x 13.2mm (height x depth x length)

UL, CSA, CECC approved

socoje 5000 series
