6 W AC Gear Motor, Torque Motor with Gearbox, single phase
from
$154.68
Ex Tax: $154.68
- Stock: In Stock
- Model: SCJ009237
- SKU: SCJ009237
Products Sold: 0
Product Views: 584
Ask a Question About This Product
- Description
6 W AC Gear Motor, Torque Motor with Gearbox, single phase
Brief
The provided torque motor is 6 W AC gear motor with gearbox, works at single phase 110V/220V voltage. It has high starting torque and sloping characteristics, allowing easily adjust the torque by changing the voltage going to the motor.
Description
6 W single phase AC gear motor & torque motor can act as a brake when back driven, or a simple device to provide tension. Depending on the torque setting, the motor will provide tension to the material while taking up slack in the line automatically, essentially matching the line speed. A high performance torque motor is an excellent product for winding and unwinding type applications.
Specifications
| Model | 3TK6GN-A | 3TK6GN-C | ||||||
| Shaft Type | Pinion Shaft | |||||||
| Power | 6 W | |||||||
| Frequency | 50 Hz | 60 Hz | 50 Hz | 60 Hz | ||||
| Rating at Locked rotor | 5 Min Continuous | 5 Min Continuous | 5 Min Continuous | 5 Min Continuous | ||||
| Voltage | 110V | 110V | 220V | 220V | ||||
| Starting Torque | 134 mN.m | 134 mN.m | 134 mN.m | 134 mN.m | ||||
| Max. Output Power | 6 W | 6.5 W | 6 W | 6.5 W | ||||
| Torque at Max. Output Power | 80 mN.m | 74 mN.m | 80 mN.m | 74 mN.m | ||||
| Speed at Max. Output Power | 750 r/min | 900 r/min | 750 r/min | 900 r/min | ||||
| Capacitor | 8.0/250 | 7.0/250 | 2.0/450 | 1.5/450 | ||||
| Weight | Motor: 1.1 Kg; Gear head: 0.5 Kg | |||||||
| Gearbox Model | 3GN[]K | |||||||
| Gear Ratio | 3, 3.6, 5, 6, 7.5, 9, 12.5, 15, 18, 25, 30, 36, 50, 60, 75, 90, 100, 120, 150, 180,200 Enter the gear ratio into the box ([]) within the model name | |||||||

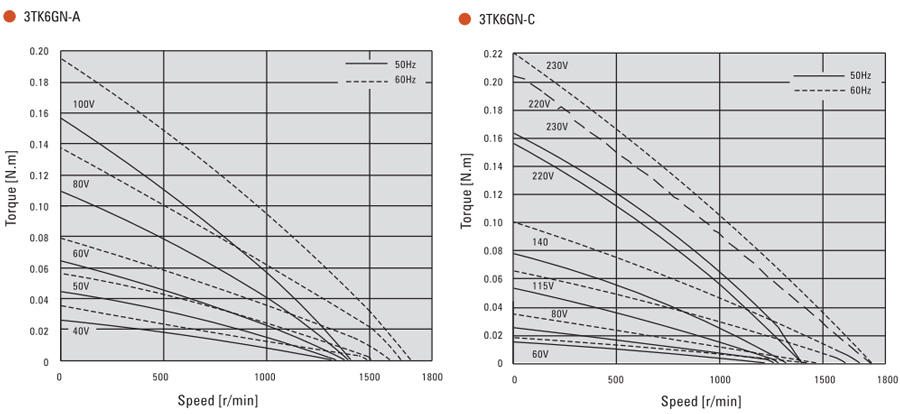

Speed-Torque Characteristics (Reference Values)

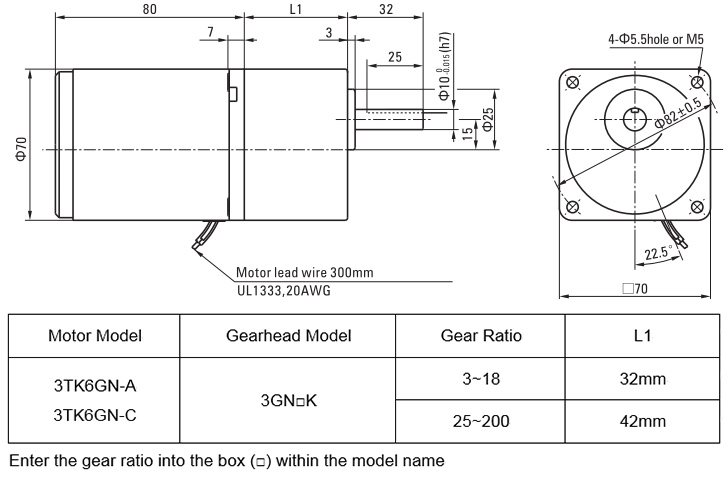

Dimensions (Unit=mm)
Wiring Diagram
Details
Tips
- Torque motors have high starting torque and sloping characteristics, allowing speed control simply by changing the voltage of the power supply. (The motor torque changes approximately proportion to the square of the voltage.)
- Suitable for winding applications. In an application where an object is released continuously at a constant speed and wound up with constant tension, the torque must be doubled and the speed must be halved if the diameter of the winding spool is doubled.
- Use as a brake. By using the motor in the braking region of the speed - torque characteristics, it can serve as a brake. In addition, constant tension operation can be achieved by applying a DC voltage.
