600 W DC Worm Gear Motor, 24V/48V, 2000 rpm
from
$759.88
Ex Tax: $759.88
- Stock: In Stock
- Model: SCJ009266
- SKU: SCJ009266
Products Sold: 0
Product Views: 565
Ask a Question About This Product
- Description
600 W DC Worm Gear Motor, 24V/48V, 2000 rpm
Brief
High torque 600 W DC worm gear motor with gear ratio from 7.5:1 to 100:1, provides 2000 rpm rated speed at 24V, 36V or 48V, rated torque at 1.91N·m and peak torque at 5.73N·m. This BLDC gear motor is easy for speed adjustment and reversible direction.
Description
600 W 3 phase BLDC motor matches with worm gearbox providing high torque at 24V, 36V or 48V power supply, gear ratio from 7.5:1 to 100:1 available, high speed and high performance.
Specification
| Motor Model | SOCOJED110BLD600-24A | SOCOJED110BLD600-36A | SOCOJED110BLD600-48A |
| Motor Type | BLDC Motor | ||
| Power | 600W | ||
| Voltage | 24V DC | 36V DC | 48V DC |
| Rated Current | 31.25A | 20.83A | 15.63A |
| No Load Current | ＜7.5A | ＜5A | ＜3.8A |
| No Load Speed | 2700 rpm | ||
| Rated Speed | 2000 rpm | ||
| Rated Torque | 1.91N·m | ||
| Peak Torque | 5.73N·m | ||
| Motor Dimension | 110mm | ||
| Shaft Diameter | 11mm | ||
| Construction | Permanent Magnet | ||
| Direction of Rotation | CW/CCW | ||
| Certificate | CCC, CE, ROSH, LVD, EMC | ||
| Gear Ratio | 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100 | ||
| Recommended Drive Model | SCJ009266 | SOCOJE-BLD50A | SOCOJE-BLD750 |
| What Parameters of SOCOJE Worm Gear Motors Can Be Customized? | |||
| Power | Yes | ||
| Voltage | Yes | ||
| Speed | Yes | ||
| Shaft | Yes | ||
| Motor Length | Yes | ||
| Motor Lead | Yes | ||
Allowable Torque with Gear Head
| Gear Ratio | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 |
| Rated Output Speed (rpm) | 267 | 200 | 133 | 100 | 80 | 67 | 50 | 40 | 33 | 25 | 20 |
| Rated Output Torque (Nm) | 17.2 | 22.9 | 34.4 | 44.7 | 54.4 | 63.6 | 68.0 | 54.0 | 60.0 | 52.0 | 40.0 |
Note:
- This torque value is the rated output value of the reducer, not the final motor + output torque value T after reducer.
- The formula for calculating the output torque after the final motor + reducer: T = rated torque of the motor * reduction ratio * 0.6, and T≤ rated allowable output torque value of the reducer.

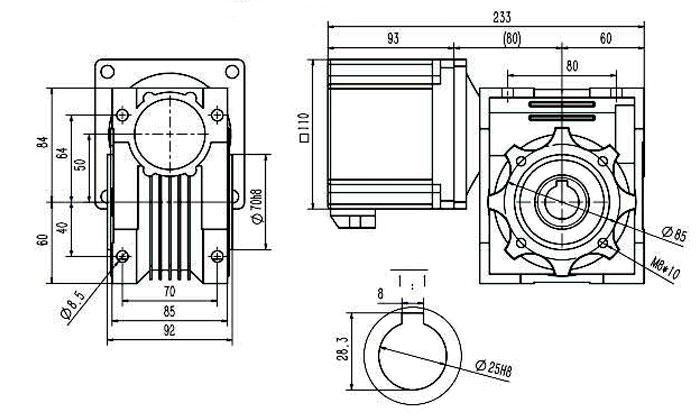

Dimensions (Unit: mm)
Mounting screws are included with gearhead

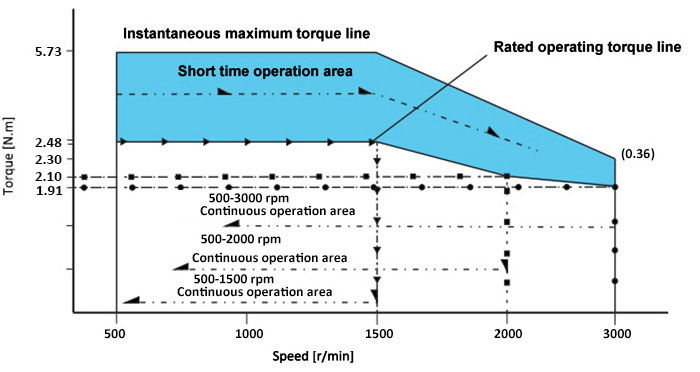

Speed-Torque Curve
- Instantaneous maximum torque line
The maximum torque momentarily impacts the load when the motor is started.
Beyond this torque, the over-current protection of the driver will cause the motor to stop. - Short time operation area
The motor can run at a short time within this torque range at different speeds.
If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn. - Rated operating torque line
The rated torque of motor running at different speeds, and the motor can run for a long time at this torque. - Continuous operating area
When the motor rotates at different speeds, it runs continuously in this corresponding zone.
Details
Tips: Why does DC worm gear motor produce vibration?
- The motor, worm gearbox and working machine are not fixed well, check the fixing bolts.
- The teeth of the worm gear pair are excessively worn and damaged. It is recommended to replace the worm gear pair teeth.
- The bearing is worn and the gap is large, and it needs to be replaced with a new bearing.
- The bolts are not fixed properly, check the fixing bolts of each part and tighten them.
