from
$1,590.00
Ex Tax: $1,590.00
  • Stock: In Stock
  • Model: SCJ004069
  • SKU: SCJ004069
Products Sold: 0
Product Views: 179

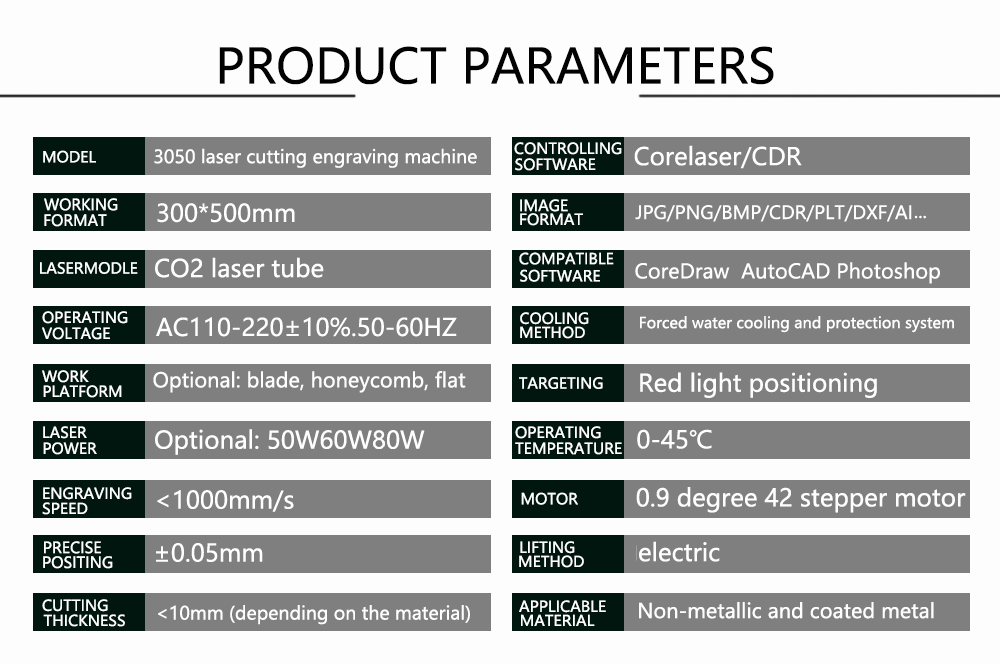

  • Specifications
attribute-list
Voltage1 phase, AC 110 V ± 10%, 60 Hz
Laser Power60w
Power400w
Working Area19-11/16" x 11-13/16" (500 x 300mm)
Laser TypeCO2 Sealed Glass 10.64 um
Laser Tube BrandSOCOJE
Water ChillerNo

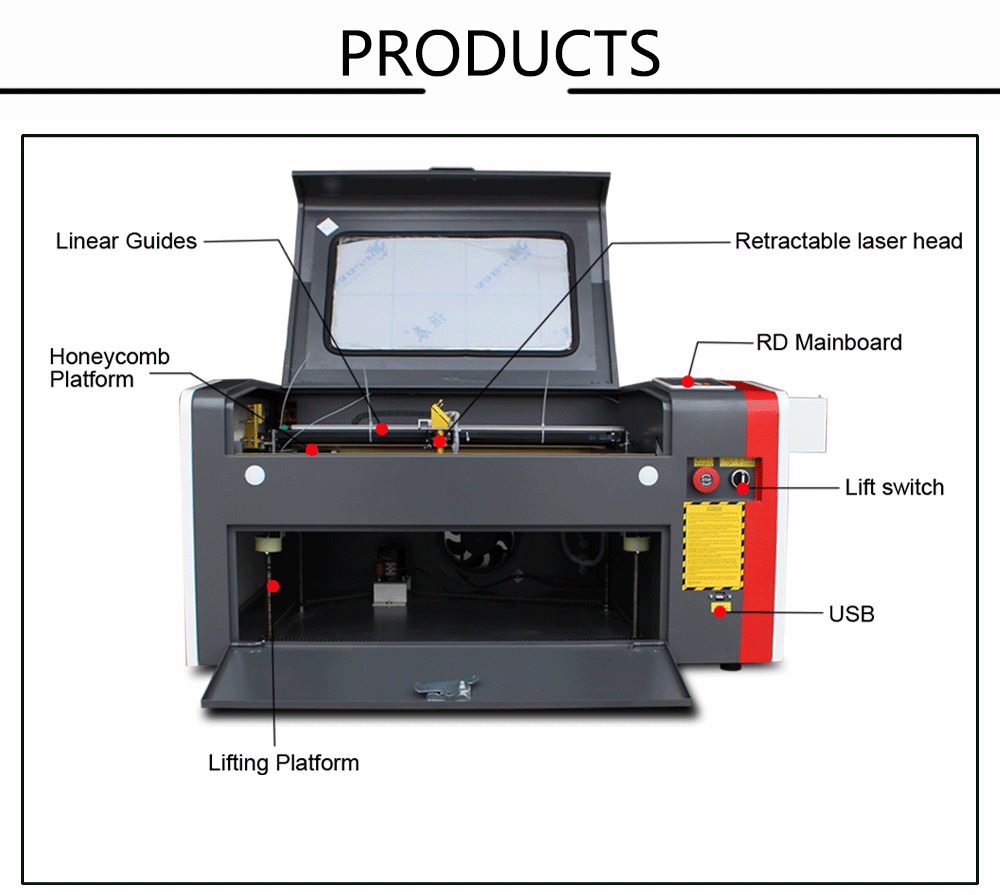

WorktableHoneycomb (Electric Lifting platform)

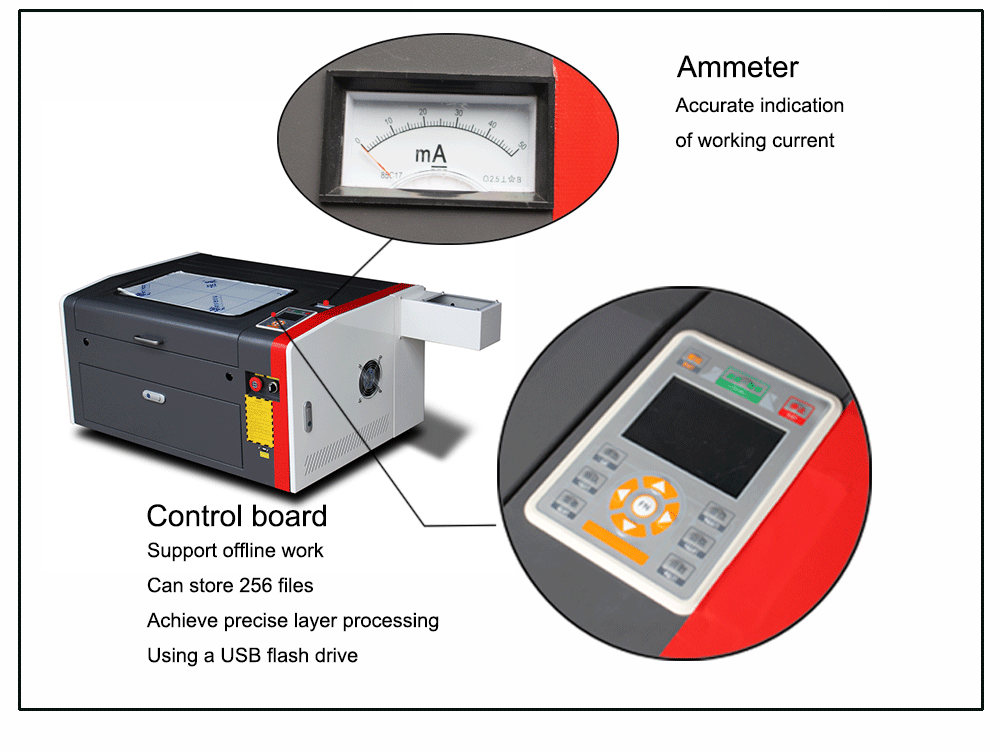

Control systemRuiDa 7132
Lifting WorktableYes (Electric Lifting platform)
Motor & Driver42 Stepper
Worktable Lift Depth5-7/8" (150mm)

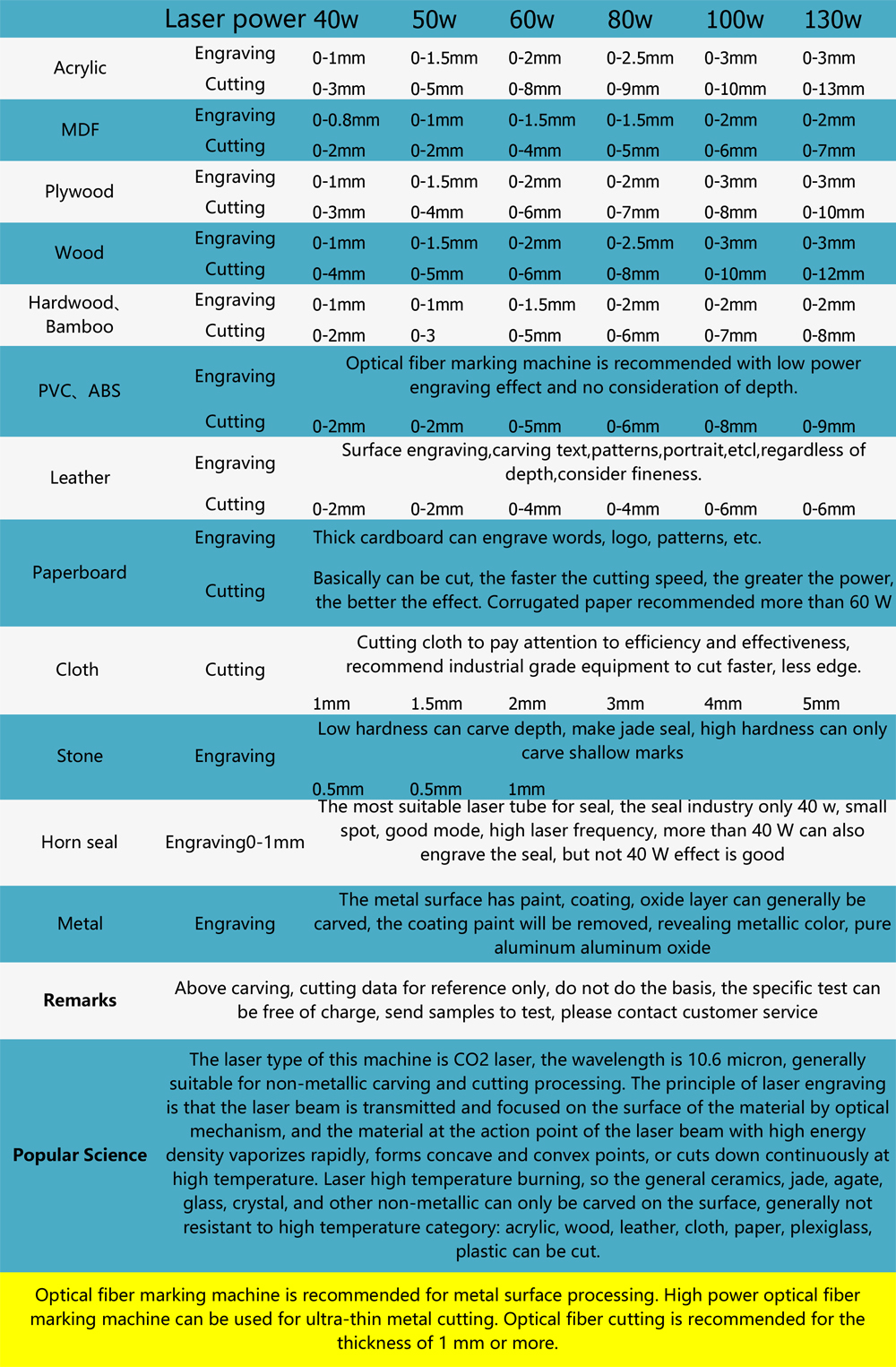

Engraving Thickness0 - 3/16" (0 - 5 mm) depends on material
Max. Engraver Speed23-5/8"/s (600 mm/s)
Locating Precision± 0.0004" ( 0.01 mm)
Resolution ratio≤ 1,000 dpi
Rotation AxisOptions
Focus ModeRed Light Focusing
Min. Character Letter1 mm × 1 mm
Operating Temperature41℉ - 122 ℉ (5 ℃- 50 ℃)
Data Transfer InterfaceUSB 2.0
Max. CUTTING SPEED7-1/8"/s (200 mm/s)
System EnvironmentWindows XP/2000/7/8/10
Guides12 Linear Guides
Color SeparationUp To 256 Colors
Max. Current6A
Graphic format supportedFiles CorelDraw Identify (BMP, JPEG, AI, PLT etc.)
Cutting thickness0 - 3/8" (0 - 10 mm) depends on material
Life time of laser tube2000-2500 hours
Certificate:CE, FDA
Cooling ModeWater Cooling
Water PumpYes
Air PumpYes
  • Description

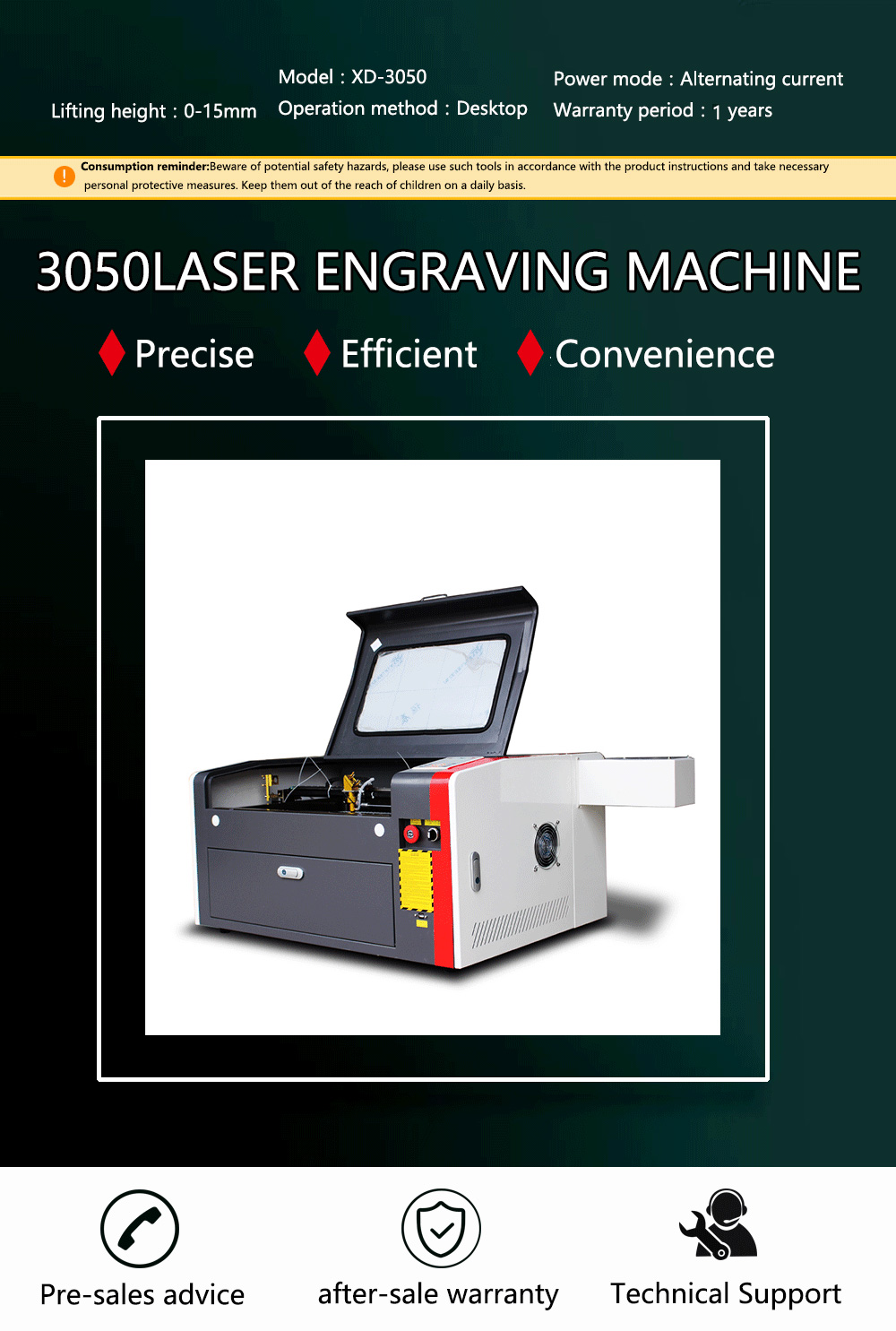

60W DIY 3050 CO2 Laser Engraving Machine 20" x 12" RuiDa Cutter Wood 1 set

About this product

1. Laser Power: CO2 Sealed Glass 60W

2. Working Area: 19-11/16" x 11-13/16"

3. Certification: FDA Certified

4. Power Supply: AC 110 V ± 10%, 60 Hz

5. System Environment: Windows XP/2000/7/8/10

6. Electric Lifting platform

60W DIY 3050 CO2 Laser Engraving Machine 20" x 12" RuiDa Cutter Wood60W DIY 3050 CO2 Laser Engraving Machine 20" x 12" RuiDa Cutter Wood60W DIY 3050 CO2 Laser Engraving Machine 20" x 12" RuiDa Cutter Wood60W DIY 3050 CO2 Laser Engraving Machine 20" x 12" RuiDa Cutter Wood60W DIY 3050 CO2 Laser Engraving Machine 20" x 12" RuiDa Cutter Wood60W DIY 3050 CO2 Laser Engraving Machine 20" x 12" RuiDa Cutter Wood60W DIY 3050 CO2 Laser Engraving Machine 20" x 12" RuiDa Cutter Wood60W DIY 3050 CO2 Laser Engraving Machine 20" x 12" RuiDa Cutter Wood60W DIY 3050 CO2 Laser Engraving Machine 20" x 12" RuiDa Cutter Wood

60W DIY 3050 CO2 Laser Engraving Machine 20" x 12" RuiDa Cutter Wood60W DIY 3050 CO2 Laser Engraving Machine 20" x 12" RuiDa Cutter Wood60W DIY 3050 CO2 Laser Engraving Machine 20" x 12" RuiDa Cutter Wood
