60W MOPA Fiber Laser Marking Machine,Fiber Laser Engraver 6.9in 1pc
from
$8,649.00
Ex Tax: $8,649.00
- Stock: In Stock
- Model: SCJ004124
- SKU: SCJ004124
Products Sold: 0
Product Views: 209
Ask a Question About This Product
- Specifications
attribute-list | |
Laser Power | 60W |
Laser Type | JPT MOPA JPT M7 |
Marking Area | 175*175mm(6.9*6.9in) |
Lens Size | 175*175mm(6.9*6.9in) 1064nm |
Lens Brand | SOCOJE |
Max. Material Thickness | 206mm(8.1in) |
Repetition Rate | 1-4000kHZ. |
Pulse Duration Modulation | 2-500ns |
Control board | BJ JCZ board(Original) |
Package Weight | 62KG by Wooden Box |
Program | EZCAD Stable performance and high reliability. |
Engraving Depth | ≤1mm(0.039in) |
Output Power Adjustment Range | 10%-100% |
Marking Speed | 7m/s(275.6in/s) |
Min. Line Width | 0.01mm(0.0004in) Depends on the material |
MIn. Character | 0.2mm(0.008in) Depends on the material |
Electrical Requirements | 110V 50hz |
PACKAGE SIZE | 785*485*810cm |
Marking Interface | USB connection.Compatible with Windows XP/Vista/7/8/10. |
Power Consumption | 1200W |
Communication MODE For Automation | TCP/IP, IO, RS232 |
Marking Content | Barcodes,serial number,text,vector,and logos |
- Description

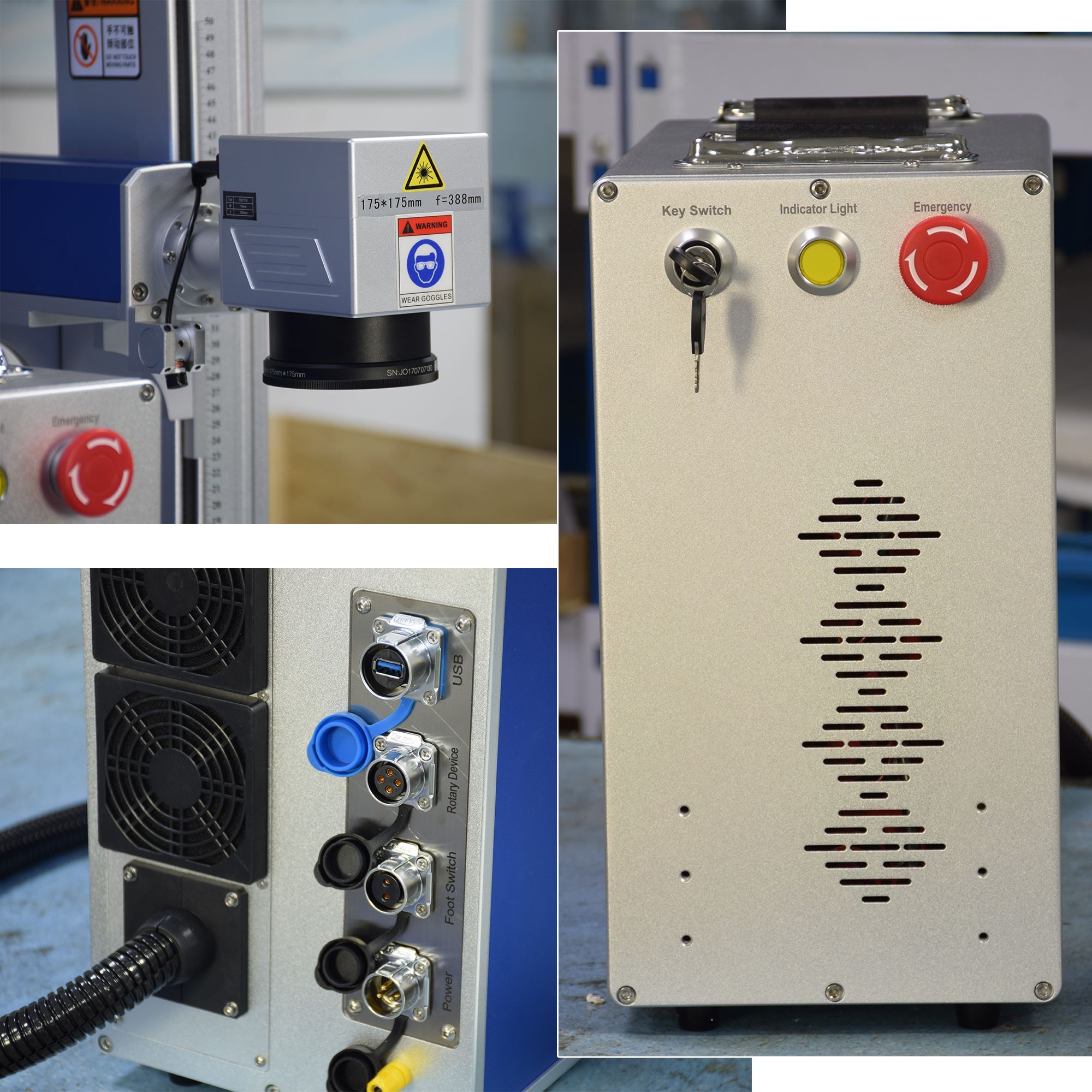

60W MOPA Fiber Laser Marking Machine,Fiber Laser Engraver 6.9in 1pc
About this product
1.-Color marking on stainless steel
2.- Metal Deep Engraving
3.- Metal Surface Processing
4.- High Frequency Line Processing
5.-Anodized alumina blackened.
6.-Strip the anode from the surface of the thin aluminium oxide plate.
7.-Electronic, semiconductor, ITO precision processing applications.
8.F-theta Scan Lens.Typically distortion less than 1%, Air-spaced design and high efficiency AR coatings excellent throughput and durability.
9.Compared with Q-switched fiber laser,MOPA Fiber Lasers with Excellent laser performance and good pulse shaping controllability.
60W MOPA Fiber Marking Machine 60W MOPA Laser Engraving Machine Laser Marker with 175mm Lens Color Marking on Stainless Steel
- Marking Area: 175×175mm (6.9×6.9in)
- Max. Material Thickness:206mm(8.1in)
- Control board : BJ JCZ board(Original)
- Max. Pulse Energy:1.5 mJ
- Power consumption: 1000W
- Engraving Depth:≤1.2mm(0.047in)
- Marking Speed:≤7000mm/s(275.6in/s)
- Output power adjustment range:10%-100%
- Communication Mode For AutomationTCP/IP, IO, RS232
- Min. Line Width:0.01 mm(0.0004in) Depends on the material
- Min.Character:0.2mm(0.008in) Depends on the material
- Electrical Requirements:110V-240V/50Hz-60Hz(According to local electricity supply).
- Software Program : EZCAD Stable performance and high reliability. Compatible with Windows XP/Vista/7/8/10.
- Laser Source and Repetition Rate(Frequency): MOPA M7+; Repetition Rate Frequency : 1-4000kHZ; Pulse Duration: 2-250ns
80mm (3.15in) Three-jaw Rotary Axis
- -- Internal Clamping Range:2-22mm. External Clamping Range:22-63mm
- --This rotary fixture is mainly for small hardware such as rings, bracelets,Cigarette holder, Pen, Bearinge,tc.
Advantages:
- Compared with Q-switched fiber laser,MOPA Fiber Lasers with Excellent laser performance and good pulse shaping controllability.
- Strip the anode from the surface of the thin aluminium oxide plate.
- Anodized alumina blackened.
- Electronic, semiconductor, ITO precision processing applications.
- Color marking on stainless steel.
Package:1 set 60W Fiber Laser Marking Machine+ M7+ Laser Source+175mm lens + 80mm Rotary Axis

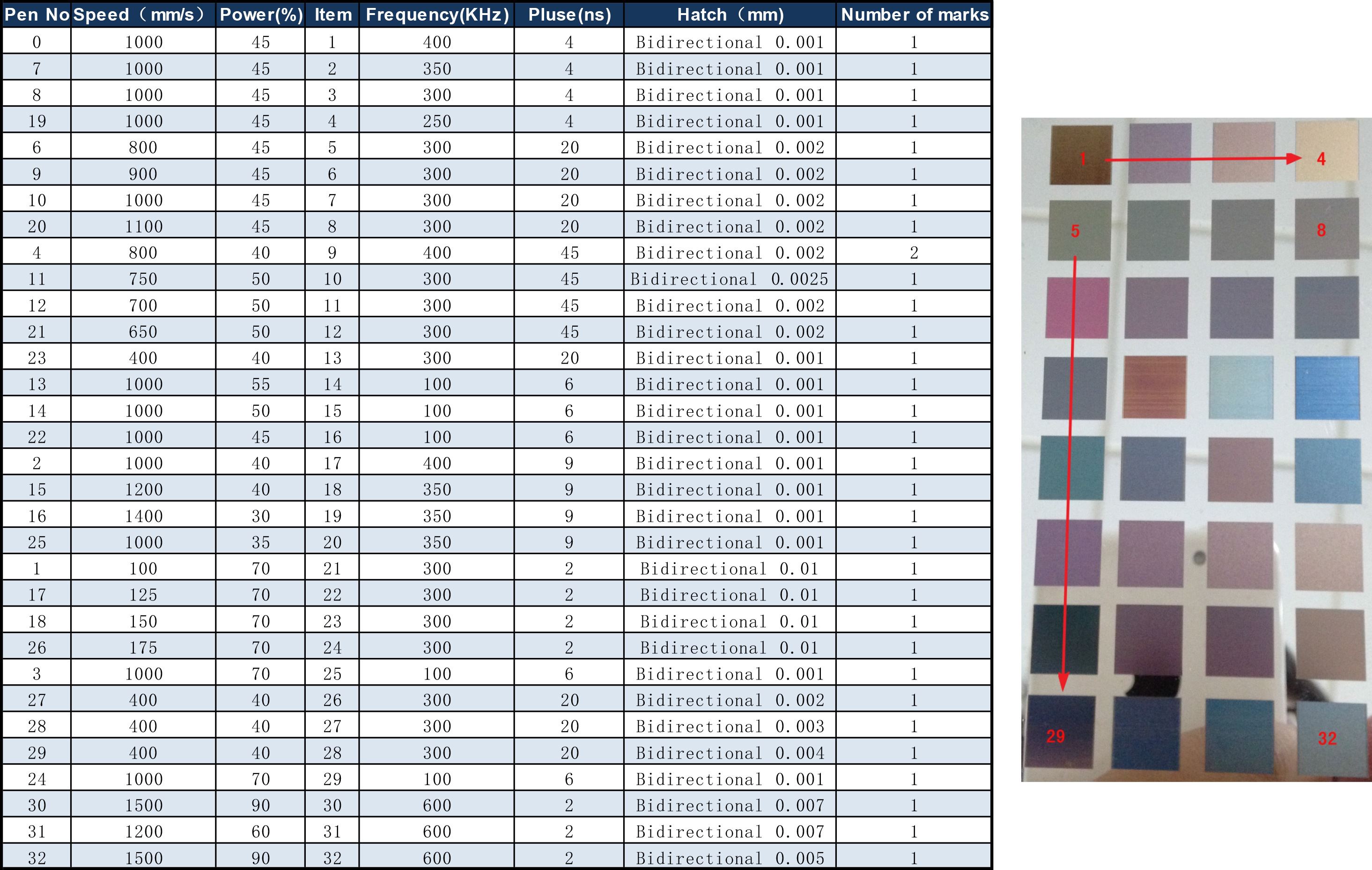

Parameter-for-Mopa-color-ss
