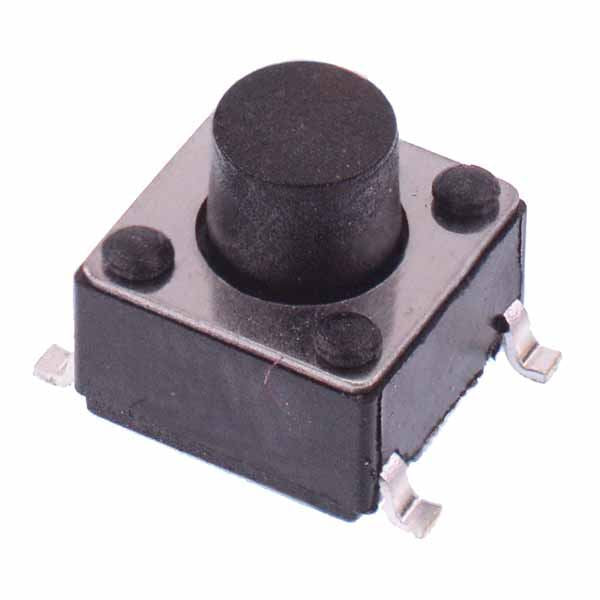

6x6x6mm SMT Momentary PCB Tactile Switch

Buy Now

Specifications

Attributes List
Actuation	Momentary
Height	6mm
MOQ	10
Contact Configuration	SPST
Contact Rating	50mA 12VDC
Current Rating	50mA
Electrical Life	100,000 Cycles
Mounting Style	PCB
Number of Positions	2
Operating Force	180gf
Operating Temperature	-20°C to +70°C
Switch Operation	Off-(On)
Terminal Type	Through Hole
Voltage Rating	12VDC

Description

6mm height miniature tactile switch housed in a standard 6 x 6mm package suitable for PCB mounting.

6mm height

SPST normally open contacts

Positive click action

4 terminal mounting

Rating: 50mA 12VDC

180gf operating force
