7.5 kW Air Cooled CNC Spindle Motor 18000 rpm ER32

7.5 kW CNC spindle motor, 18000 rpm speed, 3.58 Nm torque, 300Hz frequency, 3 phase 380V AC operating voltage, ER32 (φ3.175 mm - φ20 mm) collet.

Feature

• Spindle motor with air cooling fan and ER32 collet ensures smooth running.
• Fast response, strong overload capacity, low noise and high mechanical precision.
• High quality 4 pcs bearings (7008Cx2 + 7004Cx2), runout off less than 0.01mm, tapered bore less than 0.005mm.
• P4 grade ceramic ball bearings used as spindle bearing, which improves the service life under high speed revolution.
• Lubricated with grease, which is resistant to 200 degrees high temperature.
• Tight sealing and two-layer dustproof design.

Application

This series air-cooled electric spindle motors mainly match with variable frequency drives or engraving machines, CNC router machine, and used for high speed profiling, drilling, cutting, engraving and groove milling of wood, metal, plastics, foam, rubber and other materials.

Note: The spindle motor and VFD shall be suitable with each other. The specifications and parameter settings of the VFD shall match the nominal parameters of the spindle motor. Otherwise, it will burn the spindle motor if the settings are not correct.

Specification

Model	STF60-103-7.5
Matched VFD Model	GK3000-4T00110G (15 hp three phase VFD) GK3000-CS00110G (15 hp 1-phase 220V to 3-phase 380V VFD)
Power	7.5 kW
Phase	Three phase
Speed	18000 rpm
Voltage	3-phase 380V±10% AC
Current	15.3A
Frequency	300Hz
Torque	3.58 Nm
Number of Pole	2 poles
Cooling Type	Air-cooled
Installation Method	Horizontally or Vertically (When the motor is installed, the radial runout standard is required to be within 5um, and the chuck is generally 10um-15um.)
Lubrication	Grease
Thermal Class	Class F
Protection Class	IP50
Certification	CE
Warranty	Bearings for half a year, other parts for one year
Joint of Nose	ER32 (φ3.175 mm - φ20 mm)
Bearings Type	7008C P4*2 & 7004C P4*2
Application	Woodworking & Plastic
Weight	16 kg
Download Attachments	7.5kW Air Cooled Spindle Motor CAD Drawings

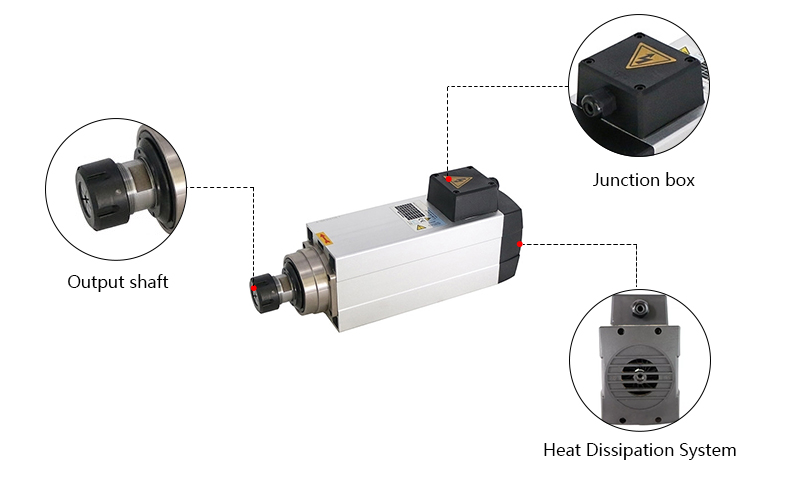

Details

Tips: How to Choose Right VFD Matching Spindle Motor?

Variable frequency drive adopts frequency conversion technology and micro-electronic technology, by changing the working power frequency of the spindle motor, so as to achieve the purpose of energy saving speed regulation. The selection of frequency inverter should match the voltage, power and frequency of the spindle motor to maximize its utility.

1. Set the VFD reference frequency. The reference frequency of the VFD is set according to the highest frequency of the motorized spindle. If the reference frequency of the VFD is not set, the spindle motor will burn out immediately after it starts running.
2. The maximum frequency, rotation frequency and corresponding voltage of the VFD are set according to the curve in the instruction.
3. The current of the VFD is set according to the rated current of the spindle motor.
4. Set the overload current to 120% of the rated current of the spindle motor.
5. Set the overload trip level to 100% and the overload trip time to 5s. Carrier frequency Settings are related to spindle motor power, with spindle motors less than 10 kW set at 8 KHz, spindle motors over 10 kW set at 5 KHz, and acceleration and deceleration times set at 10 S-20s. When the starting current exceeds the rated current protection, the acceleration time should be extended.
6. After the power is switched on, VFD starts to observe whether the rotation direction of the spindle motor is consistent with the direction indicated by the motorized spindle. If the rotation direction is inconsistent, the power supply should be cut off immediately, and check the three-phase power mode connected with the inverter and spindle motor. It is strictly prohibited to run the spindle motor wrong in the direction of rotation.
