70 MHz Digital Oscilloscope, 2 Channels, 2 GSa/s
from
$1,348.56
Ex Tax: $1,348.56
- Stock: In Stock
- Model: SCJ009644
- SKU: SCJ009644
- UPC: 315972717598
Products Sold: 0
Product Views: 320
Ask a Question About This Product
- Description
Brief
Two channel digital storage oscilloscope with 70 MHz bandwidth and 2 GSa/s sample rate which is designed and produced by SOCOJE. Up to 256 levels intensity grading waveform display, and wider vertical range is 500uV/div ~ 10V/div, lower noise floor, better for small signal capturing.
Description
70 MHz Digital Oscilloscope Features
- 2 channels, 70 MHz bandwidth
- Sample Rate: Analog channel up to 2 GSa/s, digital channel up to 1 GSa/s (MSO model)
- Memory Depth: Analog channel up to 14 Mpts (standard)/56 Mpts (optional), digital channel up to 14 Mpts (standard)/28 Mpts (optional)
- Innovative ''UltraVision'' technology
- Up to 52,000 wfms/s Waveform capture rate
- 8 inch TFT (800x480) WVGA
- A variety of Trigger Functions
Models and Key Specifications
| Brand Name | SOCOJE | |
| Model | DS2072A | MSO2072A |
| Number of Analog Channels | 2 | |
| Number of Digital Channels (For MSO Series) | 16 | |
| Bandwidth | 70 MHz | |
| Max. Real-time Sample Rate | Analog channel up to 2 GSa/s Digital channel up to 1 GSa/s (MSO Series) | |
| Max. Memory Depth | Analog channel up to 14 Mpts (standard)/ 56 Mpts (optional) Digital channel up to up to 14 Mpts (standard)/ 28 Mpts (optional) | |
| Max. Waveform Capture Rate | up to 52,000 wfms/s | |
| Real-time, Hardware Waveform Recording, Playback, and Analysis Functions | Analog channel up to 65,000 frames Digital channel up to 32,000 frames (MSO Series) | |
| Multi-level Intensity Grading Display | up to 256 levels | |
| Standard probes | 2 sets PVP2350 350 MHz BW Passive Probe 1 sets RPL2316 LA Probe (MSO series only) | |
| Dimension | Width x Height x Depth = 362 mm x 180 mm x 131 mm | |
| Weight | 6 Kg (Package Included) | |
| Packing Included | 1 x Digital Oscilloscope; 2 x Probes; 1 x USB Cable; 1 x Power Cord; 1 x Quick Guide | |

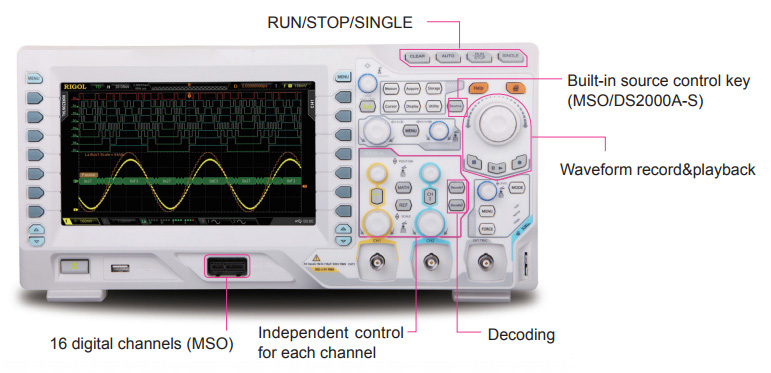

Digital Oscilloscope Detail
Tips: The triggering function of oscilloscope
The trigger of the oscilloscope can enable the signal to be scanned at the correct position point to make the signal characteristic clear. The trigger control button can stabilize the repeated waveform and capture the single waveform.
The digital oscilloscopes provided by SOCOJE has advanced trigger capability. The triggering ability mainly surrounds three aspects:
- The amplitude of the vertical direction, the transient peak trigger, the over pulse or the short pulse trigger, etc..
- The triggering of the time related triggering in the horizontal direction, the pulse width, the narrow pulse, the setting / holding time and other setting time width.
- The combination ability of the extended and conventional triggering functions, for example, video signal or other difficult to capture. The captured signal is triggered by combination of time and amplitude triggering conditions. The increase of trigger ability can greatly improve the flexibility of the test process and simplify the work, especially the current oscilloscope has greatly improved the trigger ability of the data bus, such as CAN, I2C and so on.
