750W Gear Hub Motor 36V/ 48V/ 60V 40 N.m

Brief

750w high power electric gear hub motor for sale on SOCOJE. You can buy 36V/ 48V/ 60V wheel hub motor. The torque is 40 N.m, the reduction ratio is 1:5, the dropout is 135.5mm, and the installation place is front wheel. It has higher working efficiency, more than 82%.

Description

Buy 36V-60V in wheel BLDC hub motor from SOCOJE online store. The rated speed is up to 42 km/ h and the noise grade is under 55 dB. It adopts the V/ disc brake system and the protection grade is IP65.

Specification

ModelSCJ009575
Motor typeBrushless DC motor
Max. power750W
Rated voltage36V/ 48V/ 60V DC (optional)
Max torque40 N.m
Reduction ratio1:5
Installation positionFront
Motor structureGear
Wheel diameter26 inch is standard configuration (16-28 inch can be customized)
Rated speed25-42 km/ h
Spoke specification36H*12g/ 13g
Dropout135.5mm
Brake typeV/ Disc brake
Operation temperature-20℃ - 45℃
Efficiency≥82%
ColorBlack
Cabling routeShaft center right
Noise grade≤55 dB
IP gradeIP65
Salt spray test standard24/ 96 h
Drive and freewheel6-7s
Weight5kg

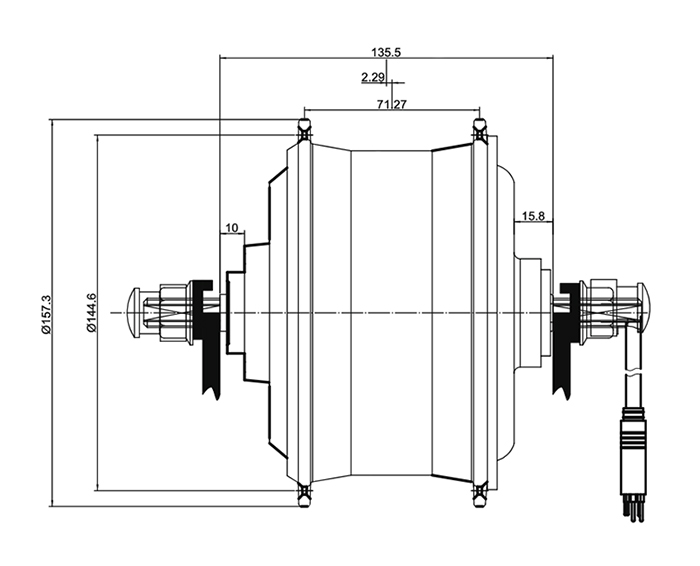

Dimention (Unit: mm)

750W Gear Hub Motor, 36V/ 48V/ 60V, 40 N.m

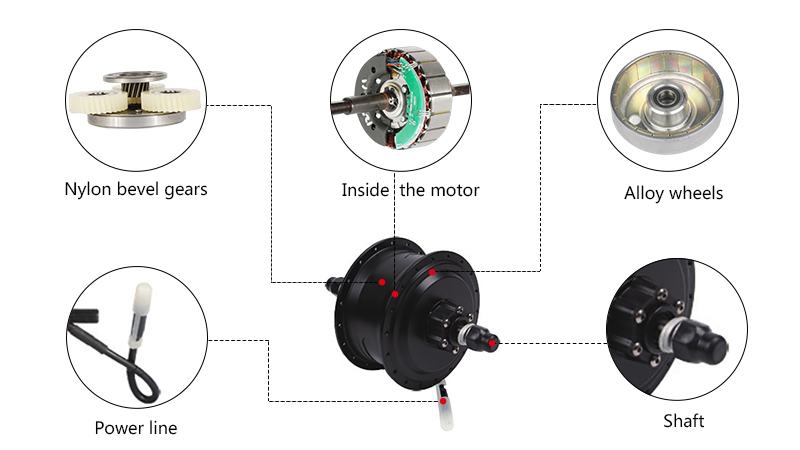

Details

750W Gear Hub Motor, 36V/ 48V/ 60V, 40 N.m

Tips: Key technical issues in the research of hub motor systems

  • The electric hub motor system integrates multiple functions such as driving, braking, and bearing, making it difficult to optimize the design.
  • The internal space of the wheel is limited, which requires high power density and performance of the wheel hub motor, and the design is difficult.
  • The integration of the hub motor and the wheel results in a large unsprung mass, which deteriorates the suspension vibration isolation performance, and affects the vehicle's handling and safety under uneven road conditions. At the same time, the ebike hub motor will bear a large impact load on the road surface, and the motor has strict requirements for vibration resistance.
  • The problem of overheating and burning of the in wheel motor caused by insufficient cooling is likely to occur when the vehicle is under heavy load and low speed climbing long slopes. The heat dissipation and forced cooling of hub motors need to be paid attention to.
  • The wheels are easy to collect water and dirt, which will cause corrosion and destruction of the in-wheel motor, and affect the reliability of the life.
  • The fluctuation of the operating torque of the wheel hub motor may cause vibration and noise of the automobile tire, suspension and steering system, as well as other vehicle sound and vibration problems.
