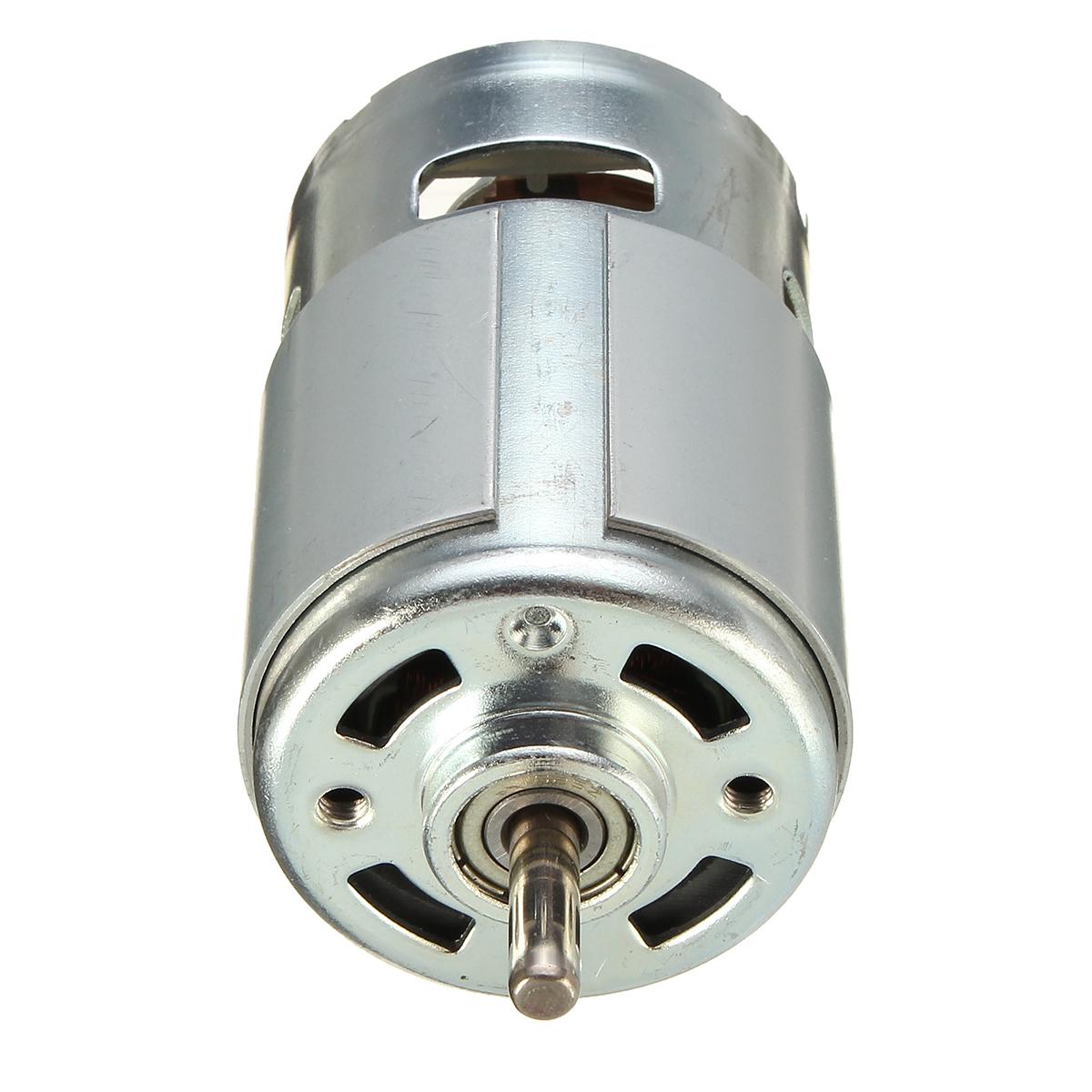

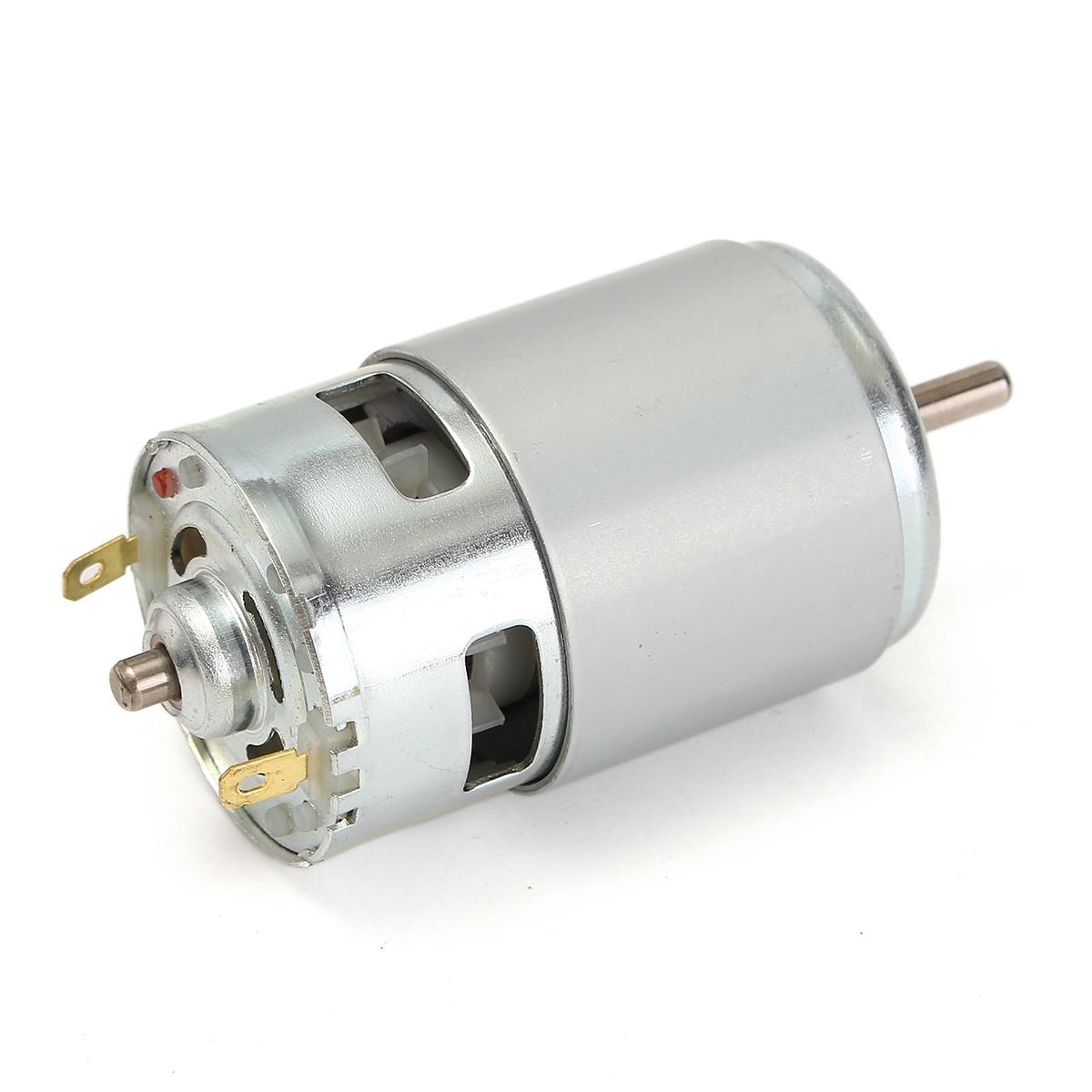

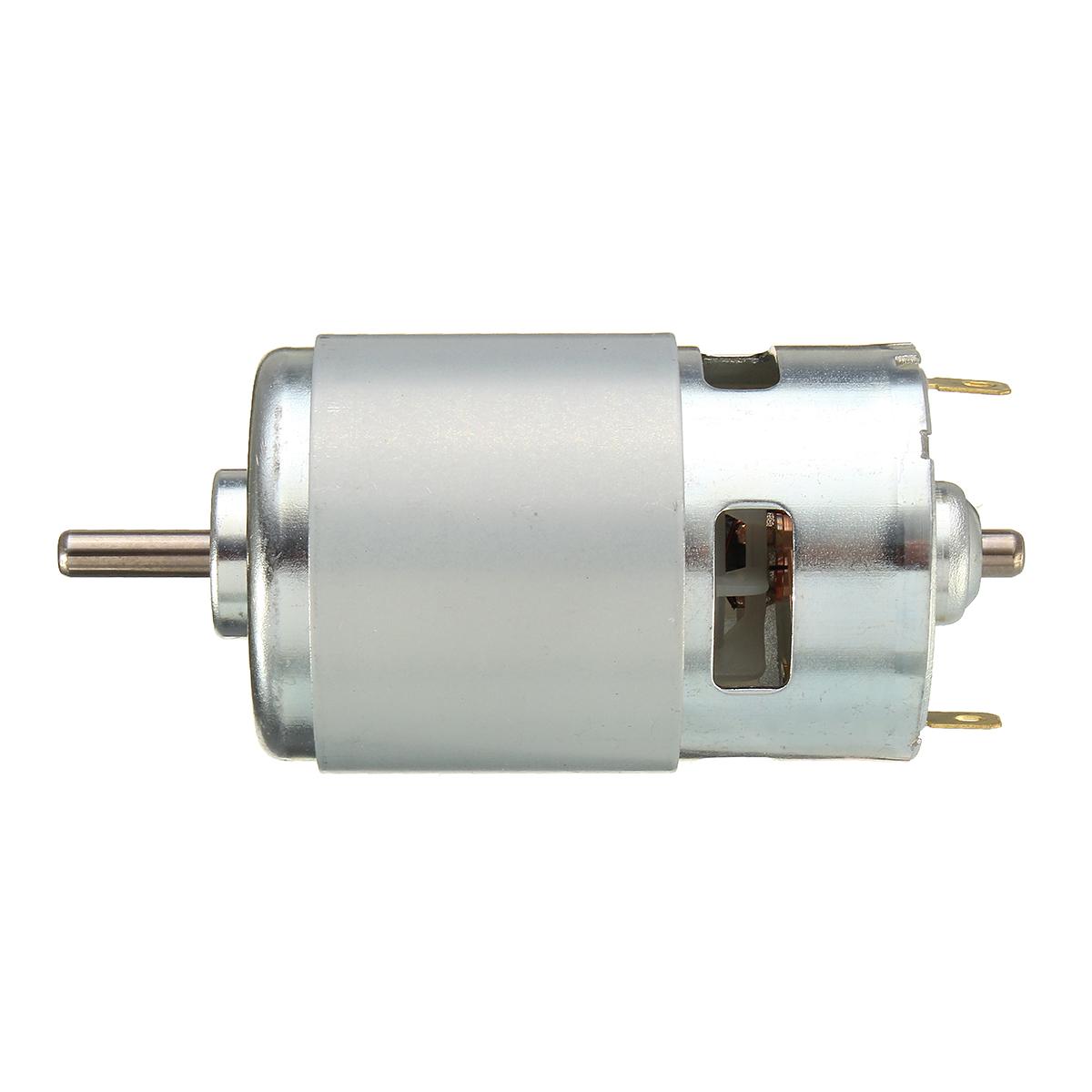

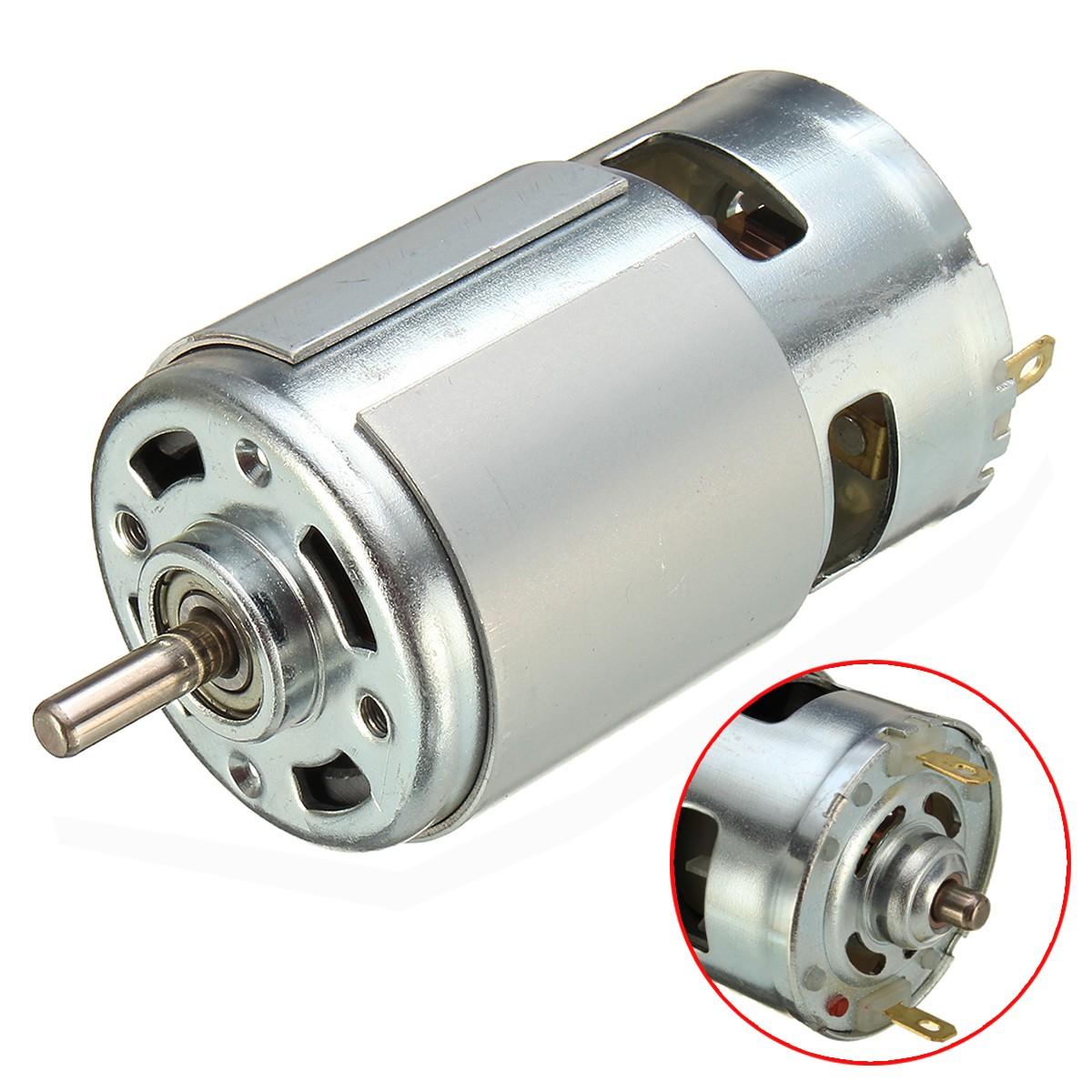

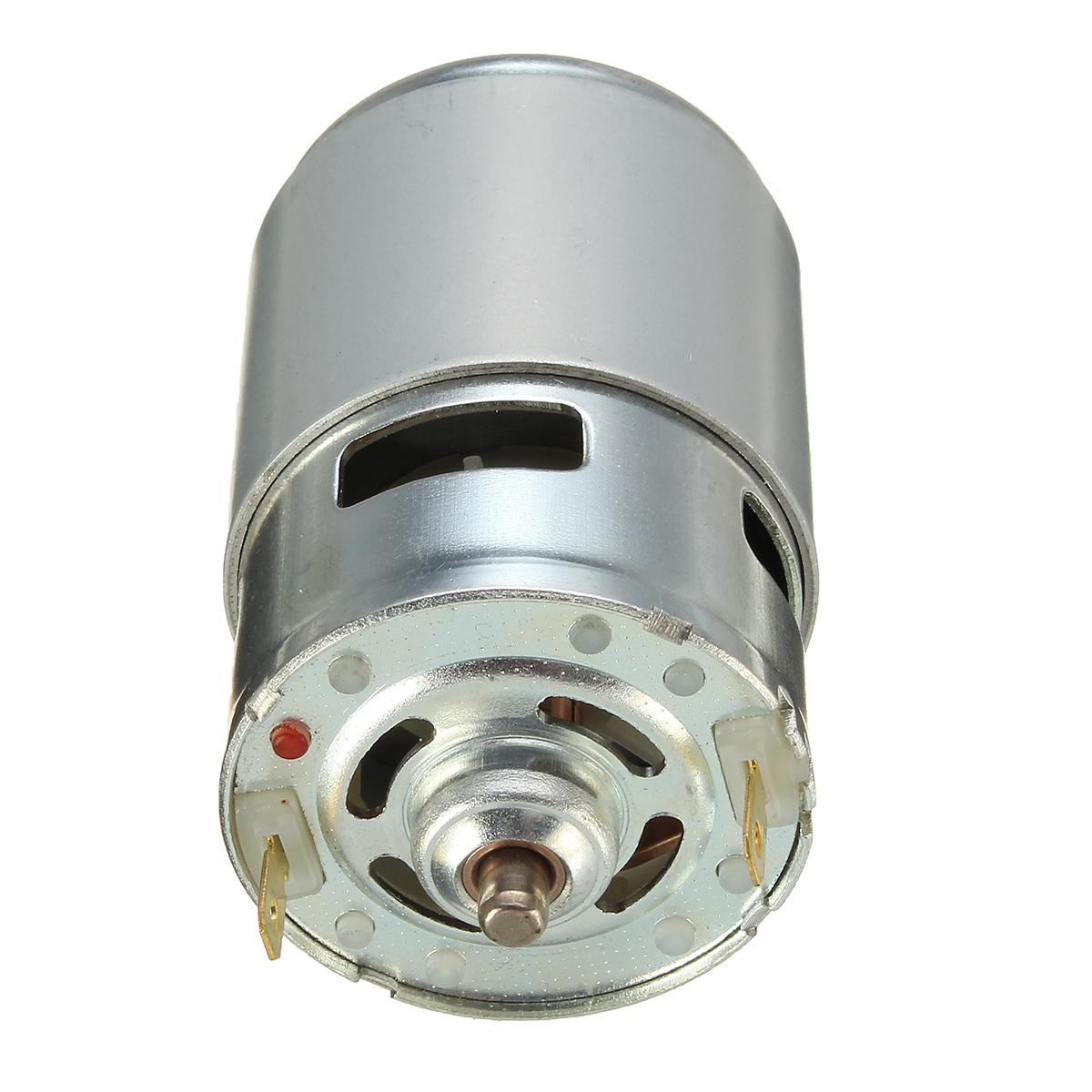

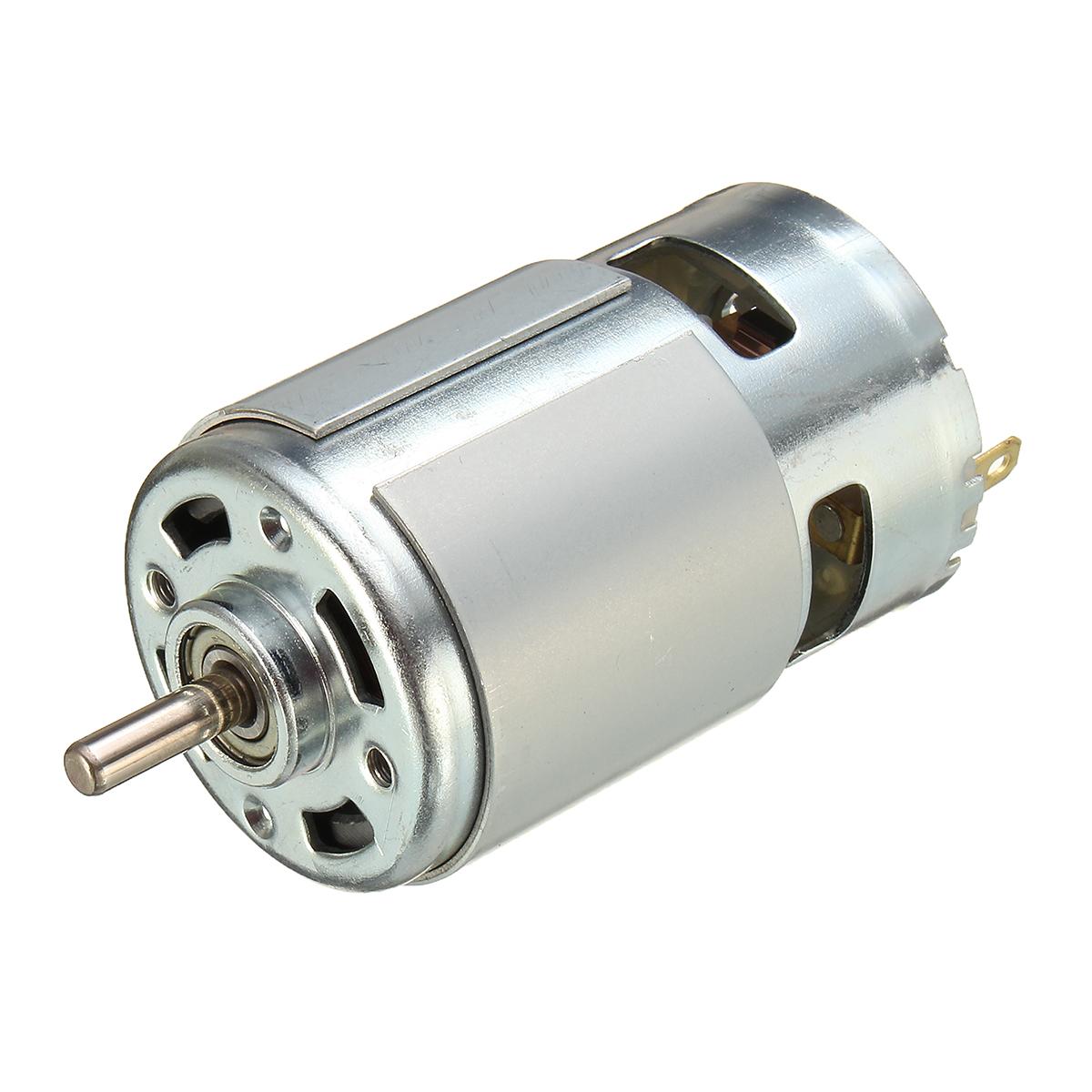

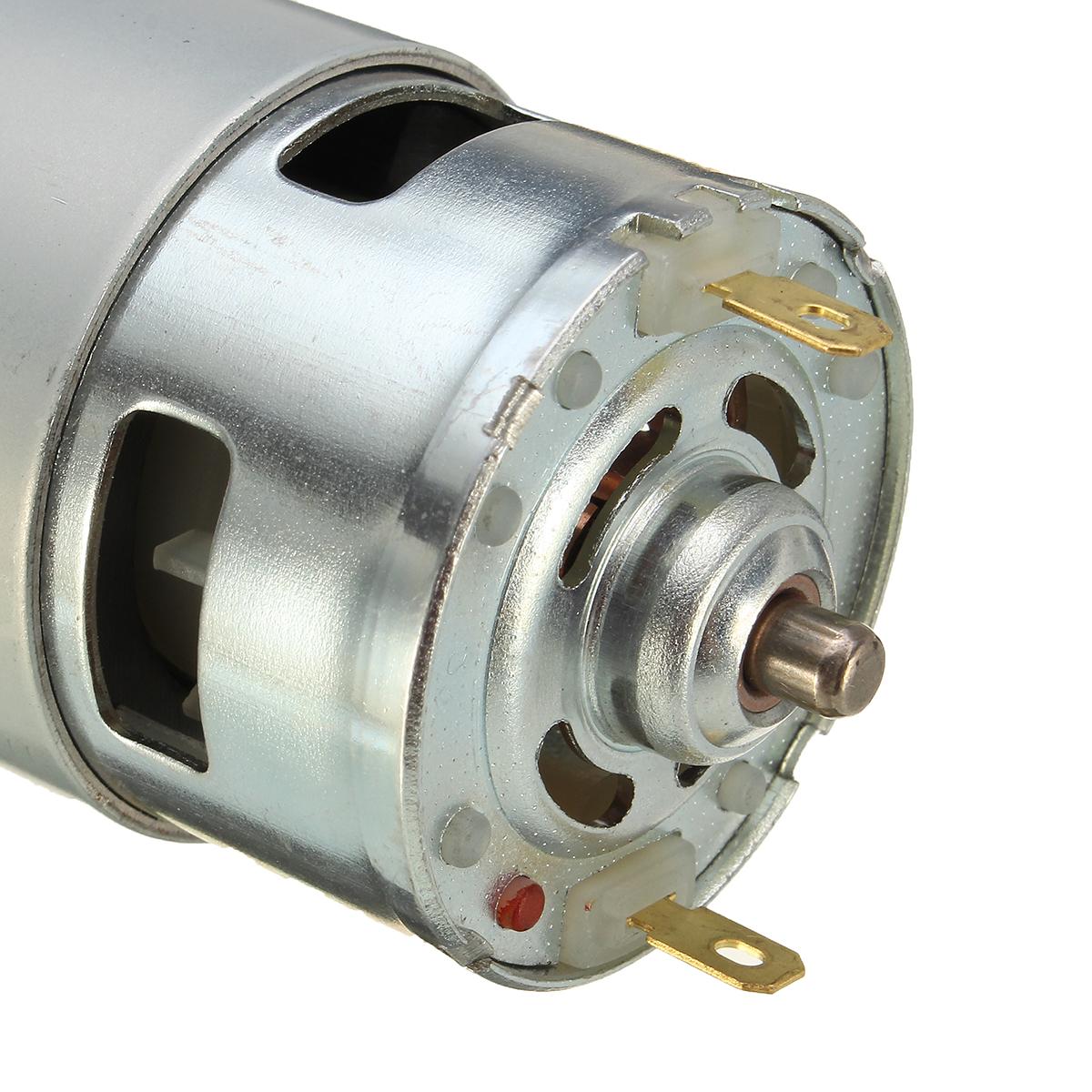

775 Motor DC 12V-36V 3500-9000RPM Motor Large Torque High Power Motor
from
$15.99
Ex Tax: $15.99
- Stock: In Stock
- Model: SCJ003715
- SKU: SCJ003715
Products Sold: 0
Product Views: 112
Ask a Question About This Product
- Description
775 Motor DC 12V-36V 3500-9000RPM Motor Large Torque High Power Motor
Specification:
| Model | 775 Motor |
| Shaft Diameter | 5mm |
| Shaft length | 17mm |
| Body length | 66.7mm |
| Front steps diameter | 17.4 mm |
| Former high level | 4.7 mm |
| Body diameter | 42 mm |
| Motor Overall Length | 98 mm |
| Diagonal installation pitch | 28.8 mm |
| Mounting hole size | M4 |
| Mounting hole | 2 |
| Torque | 2kg.cm or 0.2N.M |
| Quantity | 1 Pc x 775 Motor |
| Voltage(V) | Current(A) | Speed(RPM) |
| 12 | 0.14 | 3500 |
| 18 | 0.15 | 4500 |
| 24 | 0.16 | 7000 |
| 30 | 0.17 | 8100 |
| 36 | 0.20 | 9000 |
Notice:
1.Please allow 1-3mm error due to manual measurement.Pls make sure you do not mind before you bid.
2.The color may have different as the difference display,pls understand.
Feature:
- Ball bearing, with cooling fan.
- This is the front end of the motor ball bearing, copper sets of back-end, 5 groups winding, at a voltage of 24V, large torque, low noise.
- Used in electric tool motors, power is very large, you can make a small spindle motor, and is also suitable for DIY aspect.
Package Included:
1 x DC 775 Motor
