80W 24 x 16 Inches CO2 Laser Engraver Electric Lifting Platform FDA
from
$1,600.00
Ex Tax: $1,600.00
- Stock: In Stock
- Model: SCJ004079
- SKU: SCJ004079
Products Sold: 0
Product Views: 180
Ask a Question About This Product
- Specifications
attribute-list | |
Colour | Blue and white |
Laser Power | 80W |
Working Table Size | 23-5/8 × 15-3/4 inches (600 × 400 mm) |
Laser Tube | Sealed CO2 glass Tube |
Cutting speed | 0-60 mm/s |
Engraving speed | 0-400 mm/s |
Working table | Honeycomb (Aluminum optional) |
Resolution | ±0.05mm/1000DPI |
Minimum Letter | English 1×1mm |
Support Files | BMP,HPGL,PLT,DST, DXF and AI |
Interface | USB 2.0 |
MOTOR | Stepper Motor |
Computer System | Windows XP/win7/ win8/win10 |
Software | Corellaser |
Power Voltage | AC 110 V±10% 60Hz |
Working Environment | 0-45℃(temperature) 5-95%(humidity) |
Power Consumption | <900W (Total) |
Z-Axis Movement | Automatic |

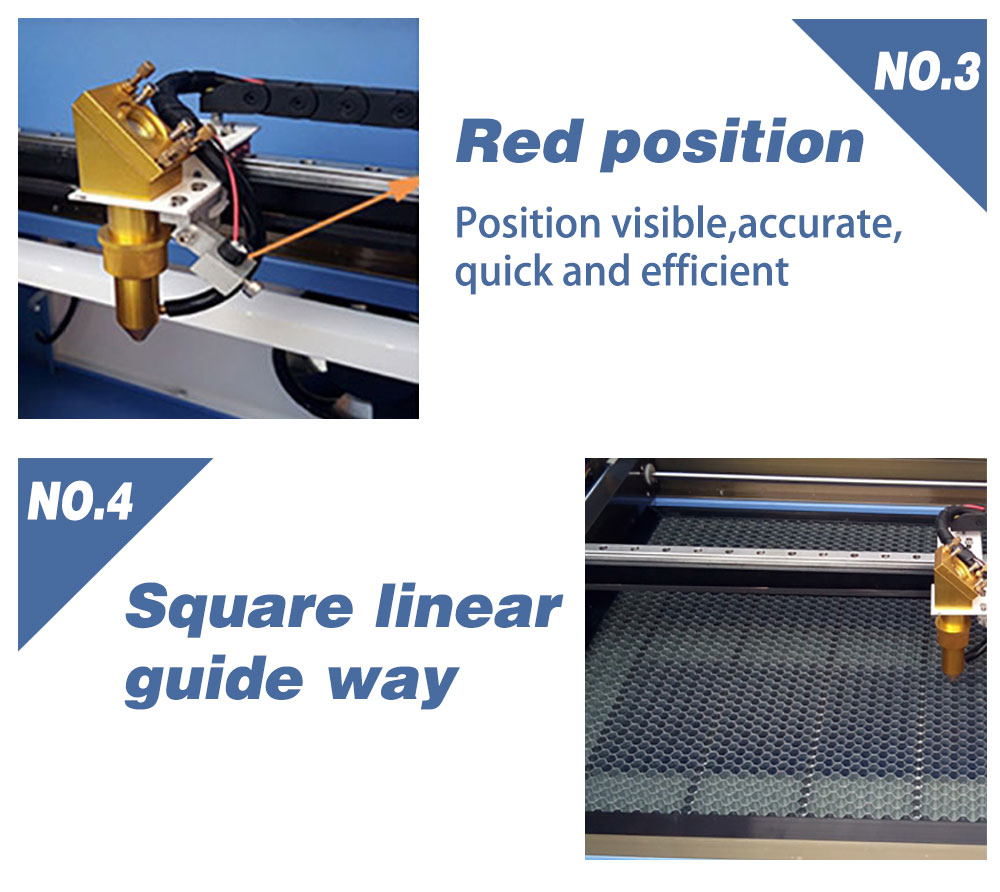

Position System | Red-light pointer |
Cooling Way | Water cooling and protection system |
- Description
80W 24 x 16 Inches CO2 Laser Engraver Electric Lifting Platform FDA
About this product
About this product
1. Laser Power: 80W
2. Laser Tube: Sealed CO2 glass Tube
3. Working Table Size: 23-5/8 × 15-3/4 inches (600 × 400 mm)
4. Control System: M2 Control system
5. Working Table: Honeycomb
6. Z-Axis Movement: Electric control
7. Power Supply: AC 110V±10% 60Hz
The normally suggested materials is wood, plywood, acrylic, plastic, cloth, bamboo, glass (only engraving), well coated metal(only engraving), other materials, such as round materials, marble or granite please contact us before make the order, we will recommend you right model accordingly.
Package Information
Package | Standard plywood case |
Package Size | 57-7/8 × 33-1/2 × 33-7/8 inches (1,470 × 850 × 860 mm) |
Gross Weight | 291 LB (132 KG) |
80W 24 x 16 Inches CO2 Laser Engraver Electric Lifting Platform FDA
