- Stock: In Stock
- Model: SCJ004091
- SKU: SCJ004091
Ask a Question About This Product
- Specifications
attribute-list | |
Laser Power | 80W |
Working Area | 27 ⁹/₁₆X19 ¹¹/₁₆ In |
Laser Type | CO2 Sealed Glass 10.64 um |
COOLING TYPE | Circulating Water Cooling and Protection System |
Worktable | ± 10" Electric Up & Down Aluminum Platform |
Engraving Thickness | 0 - 3/8" (0 - 10 mm) depends on material |
Cutting Thickness | 0 - 3/8" (0 - 10 mm) depends on material |
Locating Precision | ± 0.01 mm |
Resolution ratio | ≤ 1,000 dpi |
Min. Character Size | 1 mm × 1 mm |
Min. Character Letter | 2 mm × 2 mm |
Operating Temperature | 41 ℉ - 122 ℉ (5 ℃- 50 ℃) |
Data Transfer Interface | USB 2.0 |
Max. CUTTING SPEED | 3/8"/s (10 mm/s) |
Max. ENGRAVING SPEED | 23-5/8"/s (600 mm/s) |
System Environment | Windows |
Graphic Format Supported | Files CorelDraw Identify (BMP, JPEG, AI, PLT etc.) |
- Description
About this product
1. Laser Power for the laser cutting machine: CO2 Sealed Glass 80W
2. Working Area: 27 ⁹/₁₆X19 ¹¹/₁₆ In
3. Certification for the Co2 Laser Engraving Cutting Machine: FDA Certified
4. Power Supply: AC 110 V ± 10%, 60 Hz
5. System Environment: Windows
Packaging Method | Wooden Crate |
Machine Dimension | 55-1/2" L × 34-1/4" W × 37-3/8" H (1,410 mm × 870 mm × 950 mm) |
Machine Weight | 225 lbs (102 kg) |
Package Dimension | 58-1/4" L × 37-3/4" W × 45" H (1,480 mm × 960 mm × 1,145 mm) |
Package Weight | 362lbs (220 kg) |
80W Co2 Laser Engraving Cutting Machine 27 ⁹/₁₆X19 ¹¹/₁₆ Inch Laser Engraver Wifi Off-line Control Auto laser Compatible With LightBurn Software
This Laser Engraver is equipped with 80W CO2 laser tube. It is used to engrave on wood, bamboo, crystal, leather, rubber, marble, ceramics and glass and etc. It supports multiple graphic formats, such as HPGL, BMP, GIF, JPG, JPEG, DXF, DST. It features DSP Control System for TL directly, also supports CoreDraw and Auto CAD and other advance software.
This product is widely used in industries including arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping, packaging and paper industry.

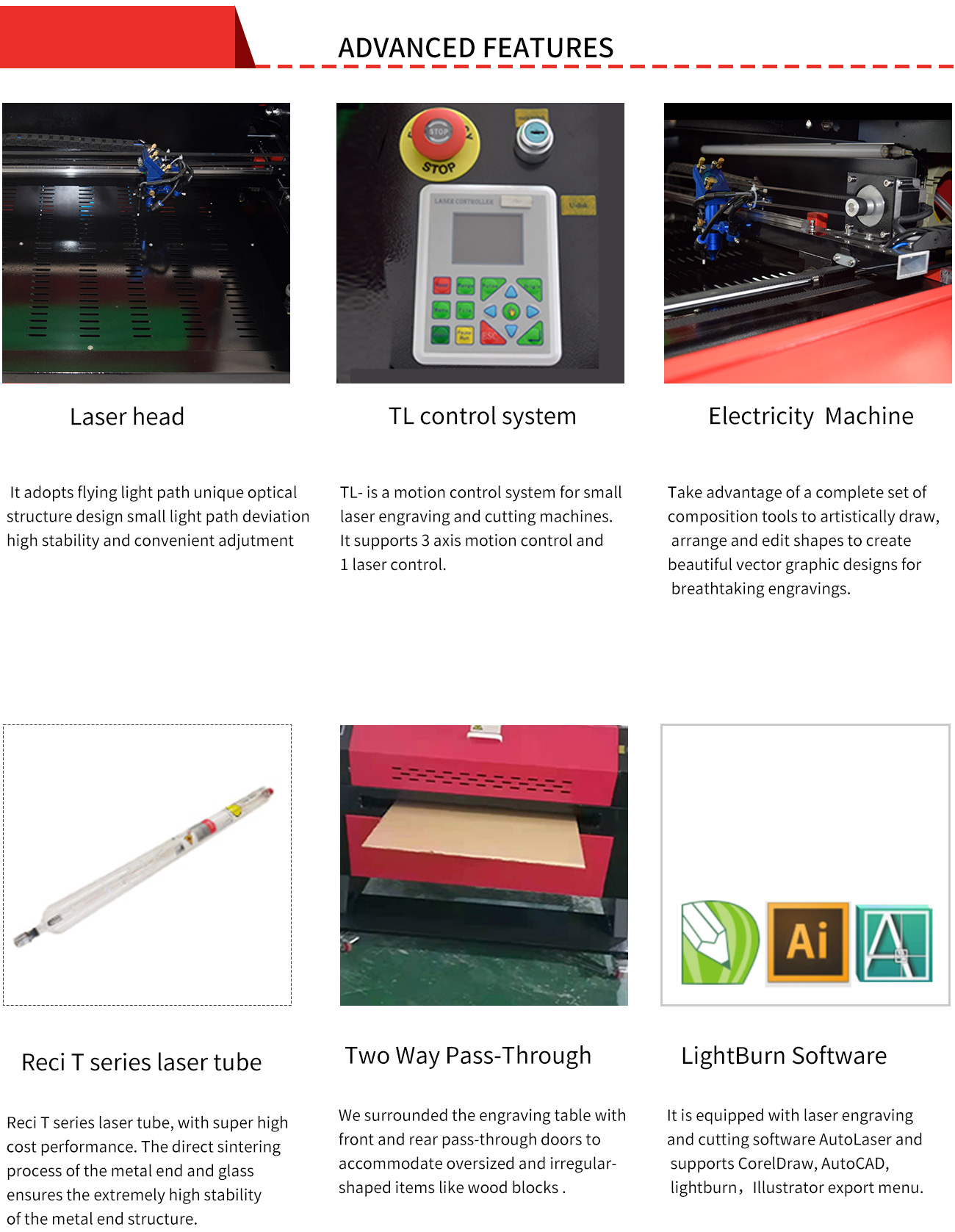

Features:
1. Quality CNC machined parts for durability Guaranteed
2. Upgraded control board for more accurate currency adjustments
3. Powerful exhausting fan for fumes and smoke extraction
4. USB port to connect the engraver to a computer
5. Windows compatible (NOT compatible with macOS system)
6. FDA certified

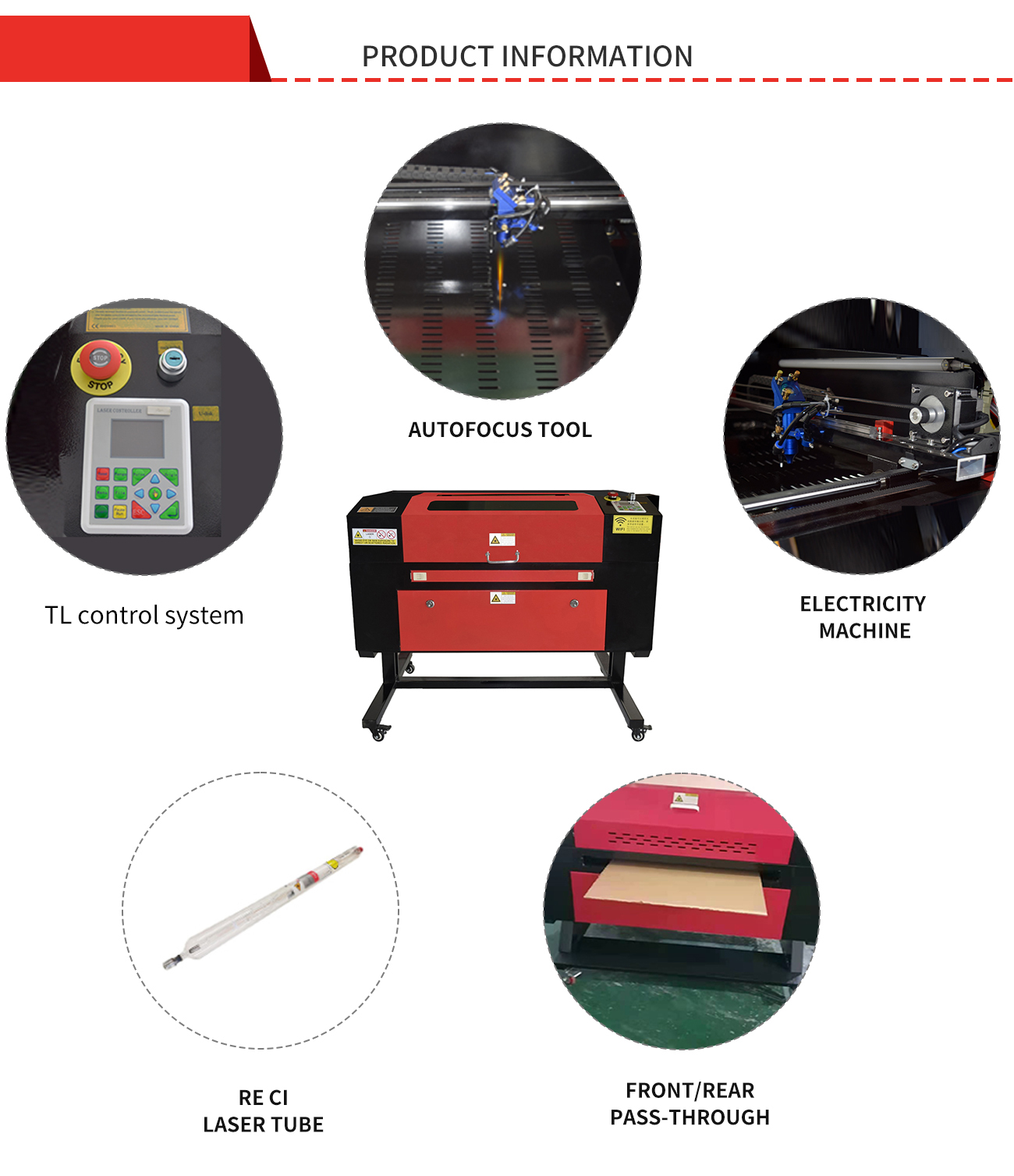

Product Illustration

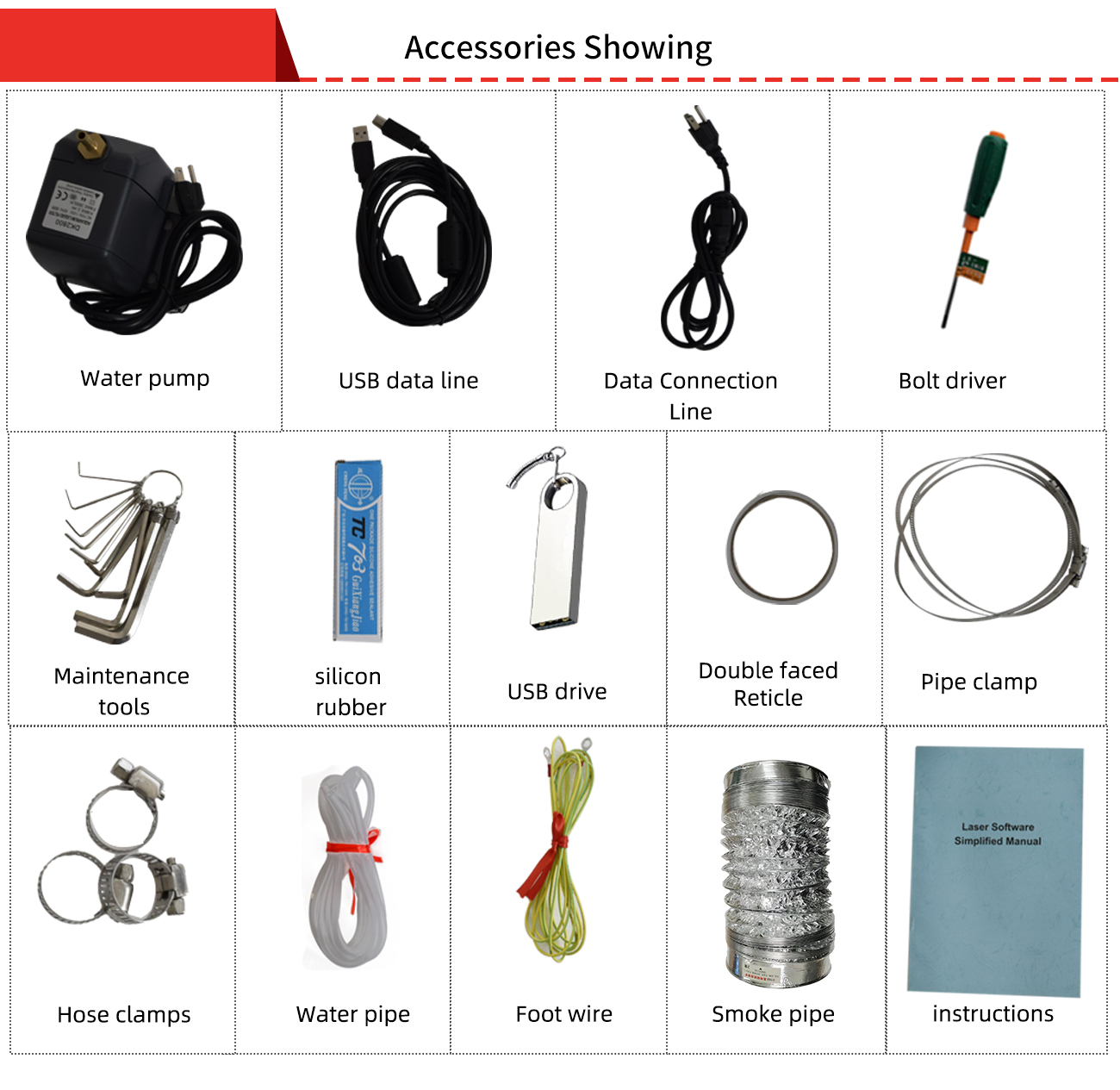

Accessories
