80W GSI Co2 Laser Tube For Laser Engraving And Cutting Machine

Buy Now

Specifications

attribute-list
ECONOMY CO2 LASER TUBE (SINGLE）HLC80	Imported Positive High Pressure
Output Power(Rated power/Max power)(W)	80W/110W
Beam Quality(㎡)	≤1.1
"N"Type	Waist located at output coupler
Beam Waist(2W)(in)	0.20
Beam Divergence(mrad full angle)	2.5
"B"Type	Waist located outside the output coupler
Pointing Stability(mrad）	＜0.1
Typical Power Stablilty(±% after warm up)	5
Power stability(Within 20 minutes after startup±%）	3
Polarisation	∕
Maximum Strike Voltage(KV)	40
Rated Operating Current/Absolute max.(mA)	20/32
Optimum operating current(mA）/(W）	20/80
Power Requirement	Positive high pressure
Dynamic range	6﹕1
Single Phase 110V/60Hz(A)	7
Cooling Requirements	Water Temperature 59-77℉
Min/Max Pressure(bar)	2∕5
Cooling (I/min)(de-ionized water)	3.6
Water cooling(W)	650
Dia(in)	3.15
L(in)	50.39
Weight (lb)	6.17

Description

80W GSI Co2 Laser Tube For Laser Engraving And Cutting Machine
About this product

1. Output Power(Rated power/Max power):80W/110W

2. Cooling Requirements: Water Temperature 59-77℉

3. Beam Quality: ≤1.1㎡(≤11.9 ft²）

4. Optimum Operating Current (mA) / (W): 20/80

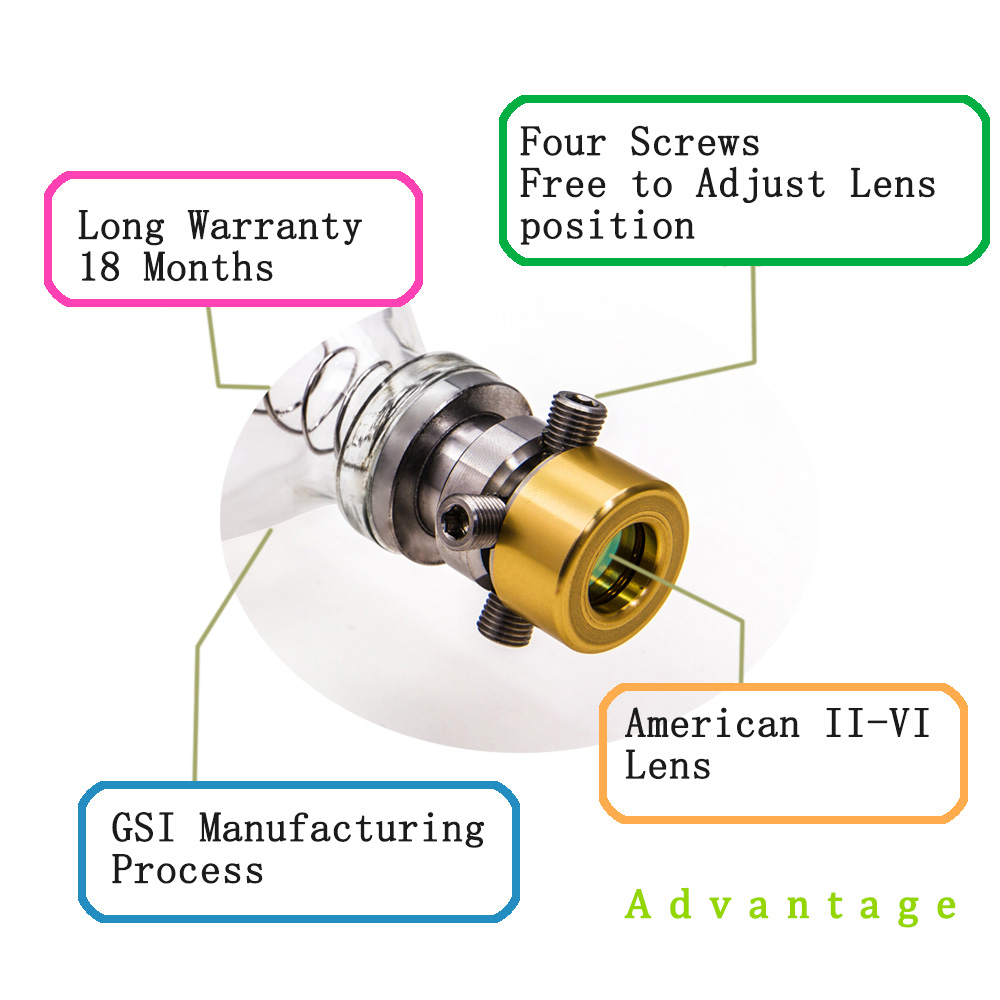

5. Close to Perfect Model TEM00 profile & American II-VI Lens

Why choose us

1. Extra-long warranty is 18 months, other products are generally 12 months

2. For the same model, our highest power value is 10~20w higher than others, and the power is stable

3. Material advantages, good products come from good materials and craftsmanship. We are all selected well-known accessory companies for materials, American II-VI, Kurt J. Lesker brand, GSI craftsmanship

4. After-sales service is also one of our characteristics. A very strong and professional after-sales team will help you eliminate troubles and solve difficulties during product use.
