- Stock: In Stock
- Model: SCJ004045
- SKU: SCJ004045
Ask a Question About This Product

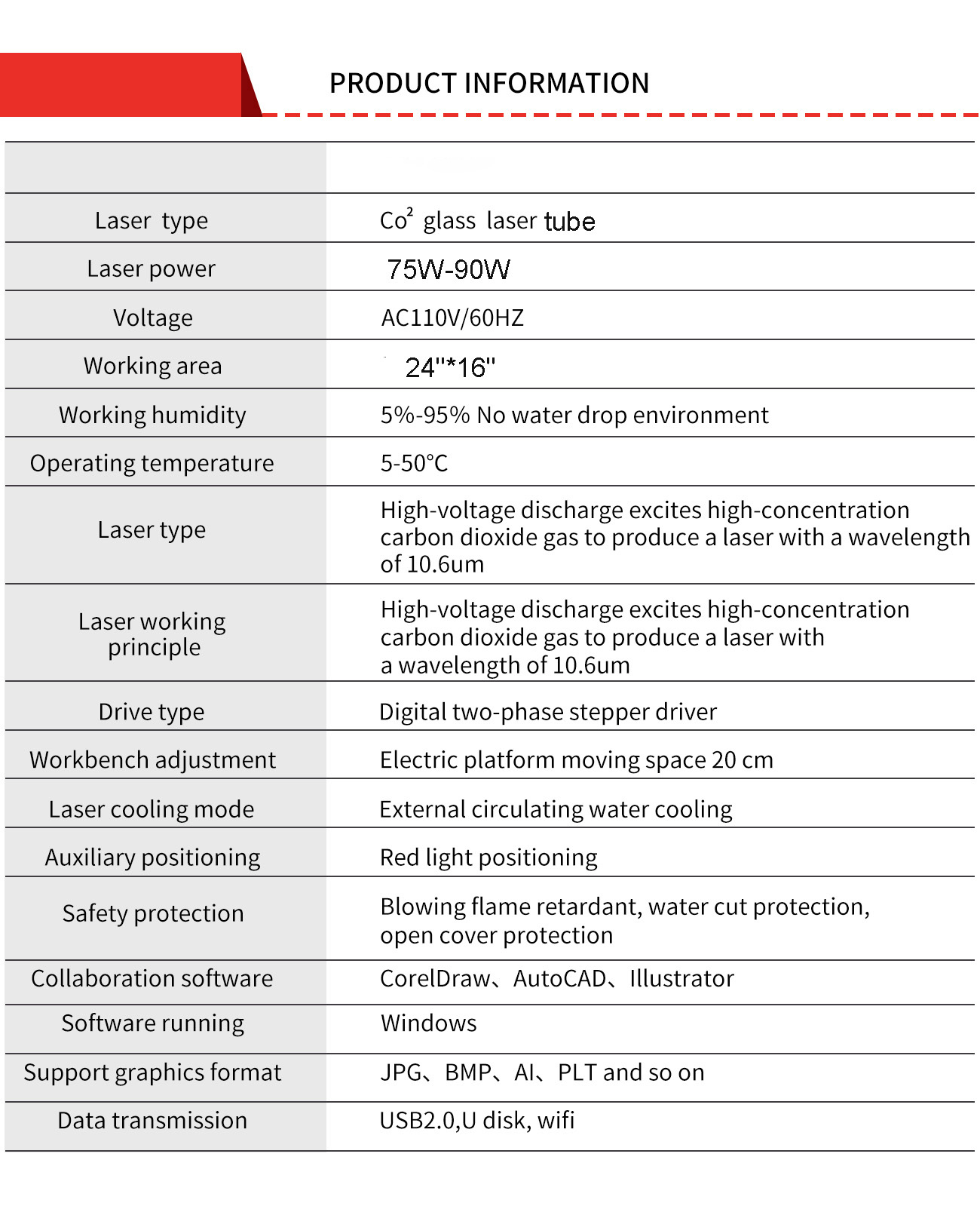

- Specifications
attribute-list | |
Voltage | AC110v/60Hz |
Working Area | 23 ⁵/₈x15 ³/₄ Inch |
Laser type | Co2 glass laser tube |
Laser Type | Carbon dioxide glass laser |
Laser power | 75-90w |
Working humidity | 5%-95% No water drop environment |
Drive Type | Digital two-phase stepper driver |
Laser working principle | High-voltage discharge excites high-concentration carbon dioxide gas to produce a laser with a wavelength of 10.6um |
Workbench adjustment | Electric platform moving space 20 cm |
Laser cooling mode | External circulating water cooling |
Auxiliary positioning | Red light positioning |
Operating Temperature | 5-50℃ |
Safety protection | Blowing flame retardant water cut protection open cover protection |
Collaboration software | CorelDraw, AutoCAD ,Illustrator |
Software running | Windows |
Support graphics format | JPG,BMP,AI,PLT and so on |
Data transmision | USB2.0 U disk wifi |
- Description
About this product
1. Laser Power for the laser cutting machine: CO2 Sealed Glass 80W
2. Working Area: 23 ⁵/₈x15 ³/₄ Inch
3. Certification for the Co2 Laser Engraving Cutting Machine: FDA Certified
4. Power Supply: AC 110 V ± 10%, 60 Hz
5. System Environment: Windows
Packaging Method | Wooden Crate |
Machine Dimension | 44" L × 30" W × 36" H (1120mmx775mmx920mm) |
Machine Weight | 187 lbs (85 kg) |
Package Dimension | 54" L × 37" W × 46" H (1385 mm × 1500 mm × 1130 mm) |
Package Weight | 315 lbs (143 kg) |

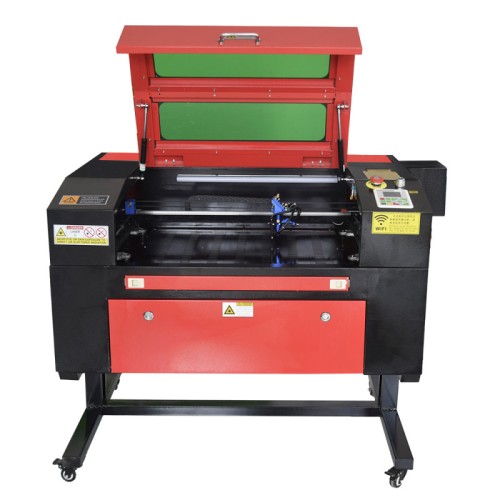

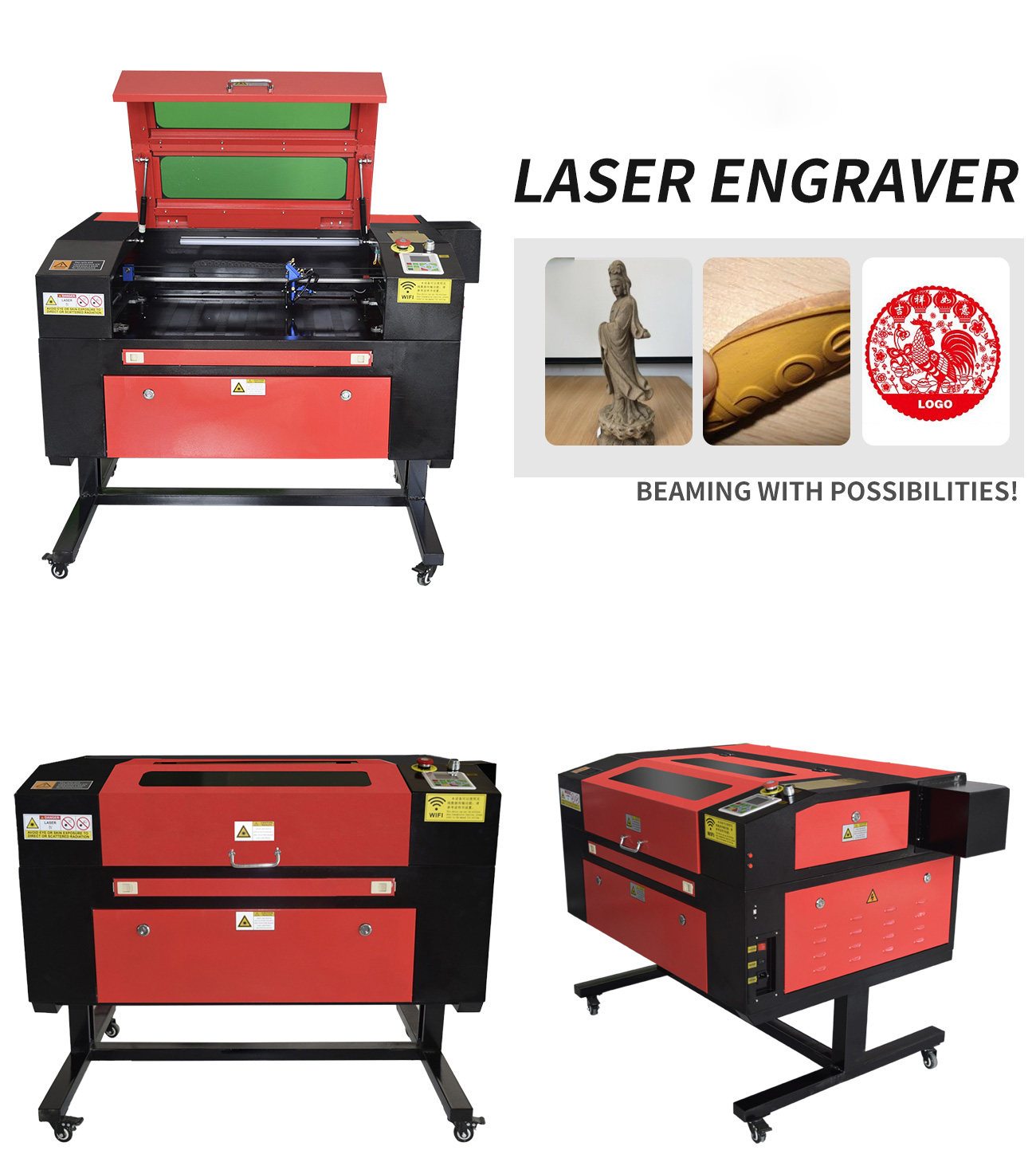

23 ⁵/₈x15 ³/₄ Inch Laser Engraver 80W Co2 Laser Engraving Cutting Machine Wifi Off-line Control Auto laser Compatible With LightBurn Software
This Laser Engraver is equipped with an 80W CO2 laser tube. It is used to engrave on wood, bamboo, crystal, leather, rubber, marble, ceramics and glass and etc. It supports multiple graphic formats, such as HPGL, BMP, GIF, JPG, JPEG, DXF, and DST. It features a DSP Control System for RDdraw directly, also supports CoreDraw and Auto CAD and other advance software.
This product is widely used in industries including arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping, packaging and paper industry.

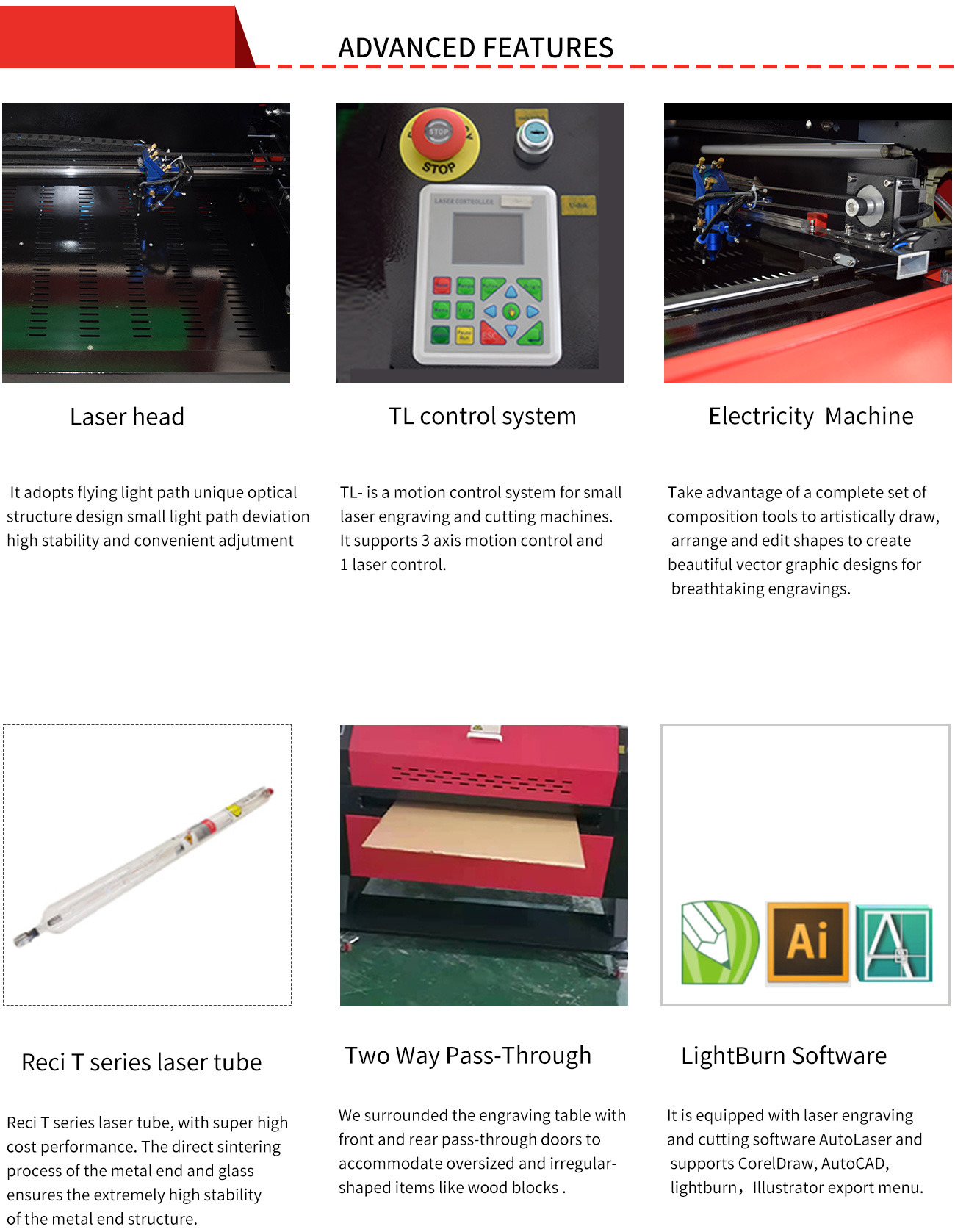

Features:
1. Quality CNC machined parts for durability Guaranteed
2. Upgraded control board for more accurate currency adjustments
3. Powerful exhausting fan for fumes and smoke extraction
4. USB port to connect the engraver to a computer
5. Windows 8, 7 (64 or 32 bit), XP, 2000 compatible (NOT compatible with iOS system)
Product Illustration
