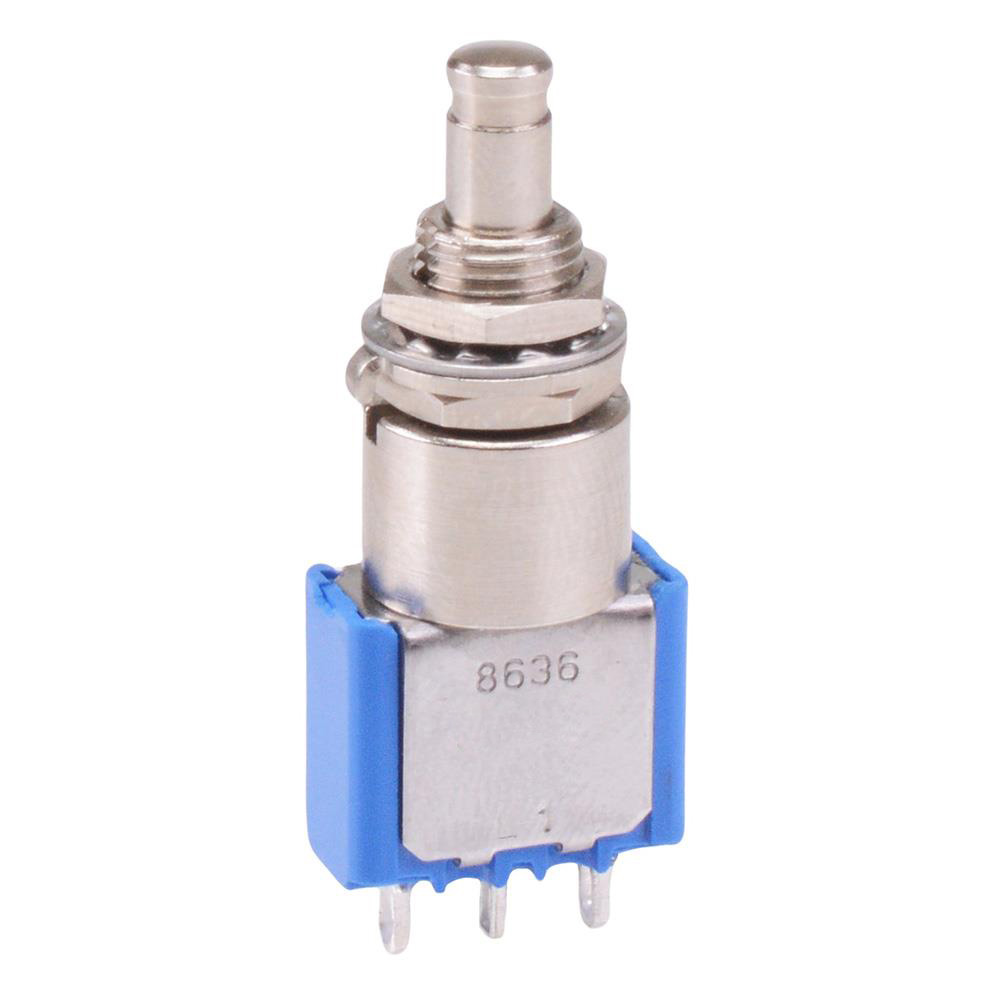

8636A On-On Miniature Push Button Switch SPDT 4A 30VDC

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	SPDT
Contact Material	Silver
Contact Rating	4A 30VDC, 6A 125VAC, 3A 250VAC
Current Rating	4A
Illuminated	No
Electrical Life	30,000 Cycles
Illumination Colour	Non Illuminated
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Operating Temperature	-40°C to +85°C
Panel Cut Out	6.5mm
Product Series	8000
Switch Operation	On-On
Terminal Type	Solder
Voltage Rating	30VDC

Description

The 8636A is a latching miniature push button switch featuring SPDT contacts and standard 6.35mm bushing. The switch features a 4A 30VDC rating and solder lug terminals making it suitable for a wide range of low voltage applications.

On-On latching action

SPDT contacts

6.35mm bushing

Solder lug terminals

Rating: 4A 30VDC, 6A 125VAC, 3A 250VAC

Panel cut-out: 6.5mm

Dimensions: 35.2 x 10 x 13.2mm (height x width x depth)
