8642ADBG6X923 Black On-(On) Momentary Foot Switch DPDT 4A

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	DPDT
Contact Material	Gold Plated Silver
Contact Rating	0.4VA 20VAC/DC
Current Rating	0.4VA
Illuminated	No
Electrical Life	30,000 Cycles
Mounting Style	Panel
Number of Poles	2
Number of Positions	2
Operating Temperature	-40°C to +85°C
Panel Cut Out	12.5mm
Product Series	8000
Switch Operation	On-(On)
Terminal Type	Solder
Voltage Rating	20VAC/DC

Description

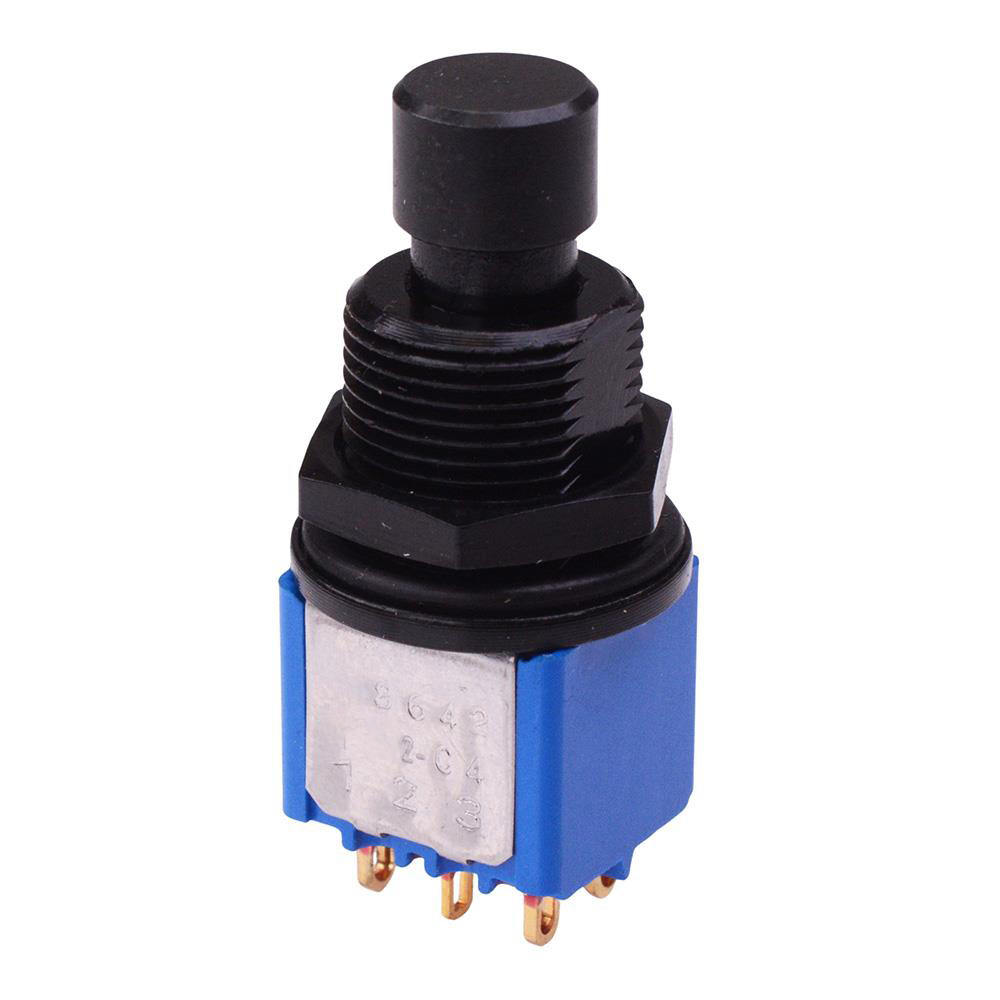

The 8642ADBG6X923 is a black momentary foot switch featuring 11.9mm threaded bush and DPDT contacts, manufactured by socoje. The switch features solder terminals and is suitable for music applications including use with guitars and amps.

DPDT contacts

On-(On) momentary function

11.9mm threaded bushing

Gold plated silver terminals

Solder terminals

Panel cut-out: 12.5mm

Rating: 0.4VA 20VAC/DC
