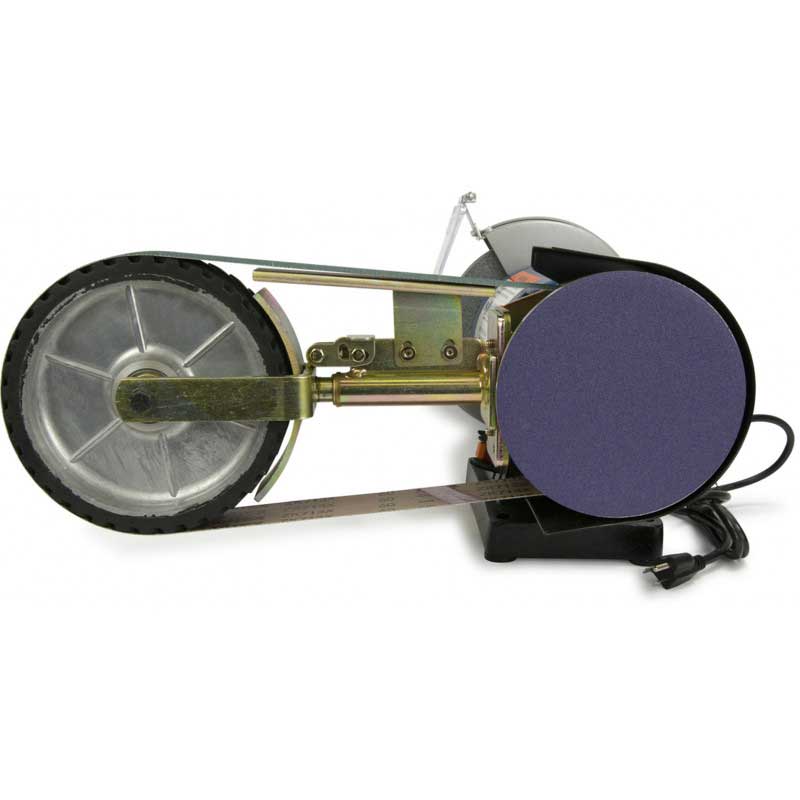

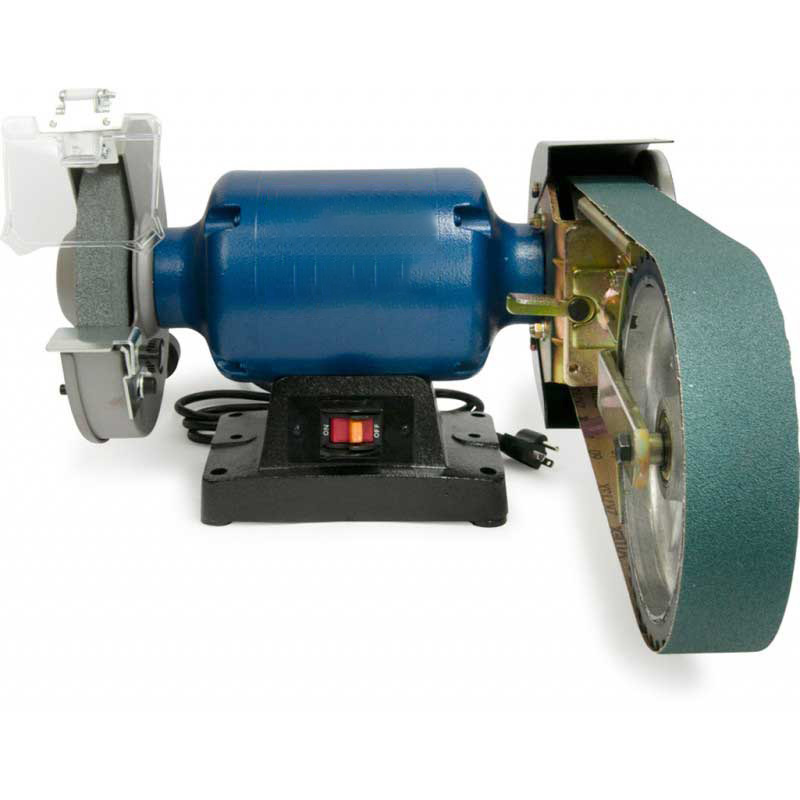

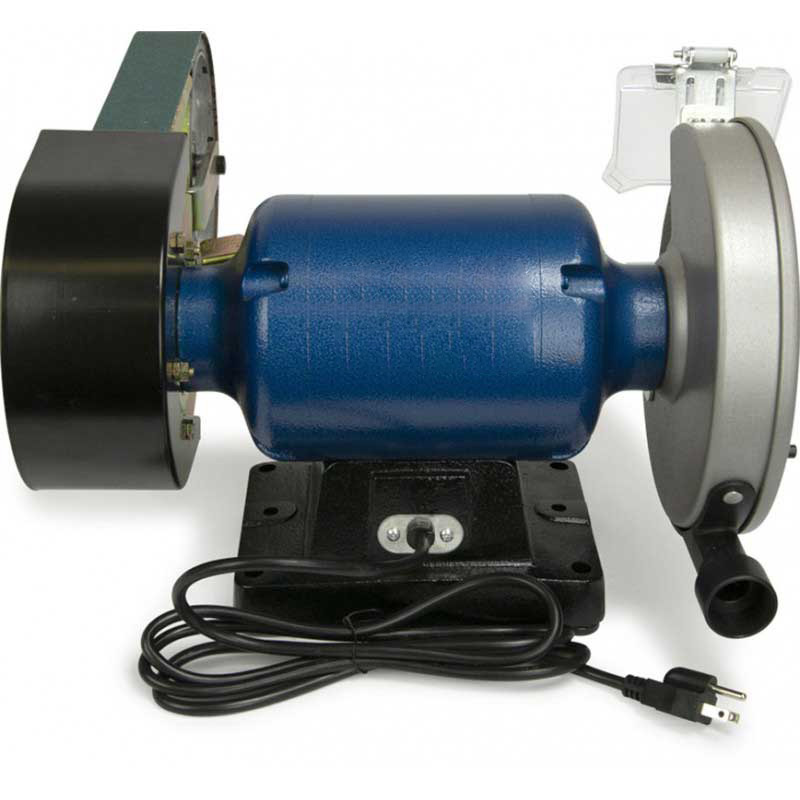

8 inch Multitool Grinder 1HP 120V, assembled with 8CW attachment (2x48 belt - 8 inch contact wheel)

PA8CW-8

The 8CW Multitool Attachment mated to our 1HP industrial motor will turn you into a master bladesmith! The oversize 8 inch contact wheel makes this a favorite among knife makers, blade sharpeners, and axe throwing competitors. The large contact wheel is perfect for flawless hollow grinds. Due to the size of the contact wheel the 8CW allows for additional belt cooling over traditional 2x48 belt machines. The front contact wheel can be used for smooth controlled grinding, contouring, or internal finishing. The precision top platen can be used for perfect flat finishing. The underside offers a slack belt surface for external contouring and blending. The large 7 inch disc sander on the side offers plenty of surface area to work with for beveling, deburring, squaring, and general sanding. The quick change belt system allows you to change from grinding to polishing in seconds. The belt attachment can operate in a horizontal or vertical position.

Features and Benefits:

1HP Industrial motor

Heavy duty cast iron grinder body & base with pre-drilled mounting holes

Adjustable tool rest & large eye shield

Full OSHA approved safety guards

Hi-Viz on/off switch with removable safety key

5 grinding positions: contact wheel, flat platen, slack belt, disc, and grinding wheel

Belt attachment can be operated in vertical or horizontal position

Precision top platen can be used for perfect flat finishing

The tool free quick change belt system allows the operator to go from rough grinding, to finishing & polishing in seconds

CSA/CUS & UL Certified

Dimensions 20” x 20” x 14”
