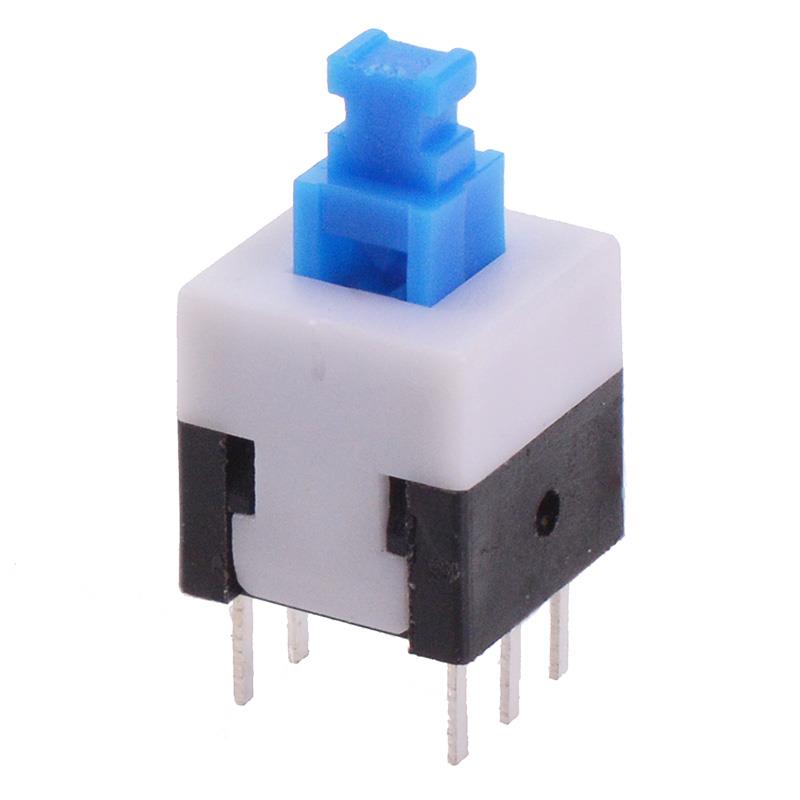

8x8mm Latching PCB Push Button Switch DPDT

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	DPDT
Contact Rating	0.1A 30VDC
Current Rating	0.1A
Illuminated	No
Electrical Life	10,000 Cycles
Illumination Colour	Non Illuminated
Mounting Style	PCB
Number of Poles	2
Number of Positions	2
Operating Force	200gf
Operating Temperature	-25°C to +70°C
Pitch	2.5mm
Switch Operation	On-On
Terminal Type	Through Hole
Voltage Rating	30VDC

Description

8x8mm Latching PCB Push Button Switch DPDT
Push button switch housed in a compact 8 x 8mm package featuring a latching mechanism and DPDT contacts, suitable for mounting to PCBs.

On-On action

DPDT contacts

PCB solder terminals

2.5mm pin pitch

3 x 2mm actuator

Rating: 0.1A 30VDC

Dimensions: 17 x 8 x 8mm (Height x Width x Length)
