- Description
90W AC Vibration Motor, 3 Phase, 2 Pole
Brief
Description
Heavy duty vibration motor voltage AC 220V, 2 pole, 2900rpm speed, the vibration motor uses long-life bearings to ensure the mechanical reliability and stability of the motor.
Specification
| Model | SCJ009318 |
| Phase | 3 Phase |
| Pole | 2 Pole |
| Force | 198 Kg, 2 kN |
| Speed | 2900 rpm |
| Power | 90W (0.09kW) |
| Current | 0.35A |
| Voltage Class | 220V |
| Weight | 7.6 kg |
| Frame No. | 20 |
| Frequency | 50 Hz/60 Hz |
| Protection Rank | IP65 |
| Insulation Class | F |
| Certificate | CE |
| Warranty | 12 Months |

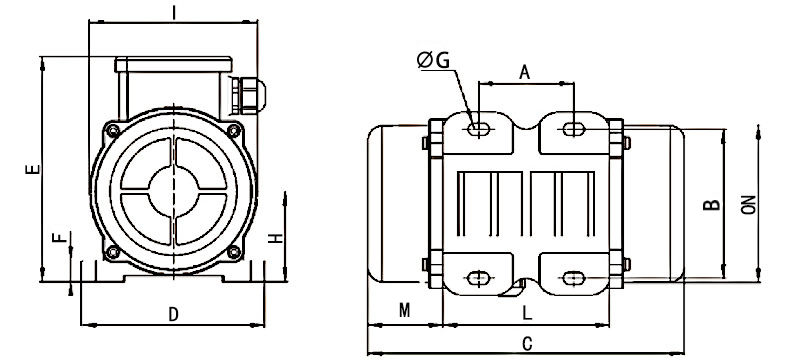

90W 2 Pole Three Phase Vibration Motor Dimension (unit: mm)
| A | B | C | D | E | F | G | H | I | L | M | N | Cable Gland |
| 62-74 | 106 | 231 | 131 | 159 | 15 | 9 | 64 | 121 | 123 | 45 | 86 | M16*1.5 |
3 Phase Vibration Motor Structure
Tips: Why adjust the vibration force of the vibration motor?
The exciting force of the vibrating motor is the centrifugal inertia force generated by the high-speed rotating eccentric mass. Change the eccentricity, thereby changing the amplitude of the exciting force, in order to achieve the effect of adjusting the exciting force. By adjusting the magnitude of the exciting force, the highest productivity can be achieved and the service life of the vibration motor can be prolonged.
