- Description
980KV/1250KV/1400KV Brushless Motor for Drone, 3S/4S
Brief
Description
980KV/1250KV/1400KV brushless motor is available with a 3mm shaft diameter, NSK precision bearings and 3~4s lipo. brushless drone motor can provide a longer run time for the fixed-wing drone.
Specifications
| Model | SCJ009153 | SOCOJE-X2212-1250 | SOCOJE-X2212-1400 |
| Motor KV | 980KV | 1250KV | 1400KV |
| Interphase Internal Resistance | 92mΩ | 54mΩ | 43mΩ |
| Motor Weight | 57g | 59g | 57g |
| No-Load Current | 0.6A/10V | 0.8A/10V | 1A/10V |
| Maximum Continuous Power | 385W | 518W | 560W |
| Maximum Continuous Current | 26A/30s | 35A/30s | 37A/30s |
| ESC Recommended | 20-30A | 30-40A | 30-40A |
| Recommended Propeller Specifications | APC9047/9045/8038 | APC9047/9060/8060/ | APC9047/9045/8038 |
| Operating Rated Voltage (Lipo) | 3-4S | ||
| Stator Diameter | 3.175mm | ||
| Stator Thickness | 12 | ||
| Number of Slots | 12N14P | ||
| Motor Size | Long shaft: φ27.5*46.0mm, short shaft: φ27.5*32.5mm(Short axis) | ||
| Motor Silicone Wire Specifications | 20AWG 110mm | ||
Features
- Each brushless drone motor is made by strict dynamic balancing. Original NSK bearings for lower noise and smoother operation. High-precision CNC machined parts, and fine assembly process to achieve higher runout and concentricity standards.
- 980KV/1250KV/1400KV brushless motor cool magic blue rotor end cap with six contours, strong and sturdy. High-quality white metallic paint with blue end caps for a more chic layered aesthetic. The stator end caps are hollowed out around the perimeter, which also increases the heat dissipation area for better heat dissipation.

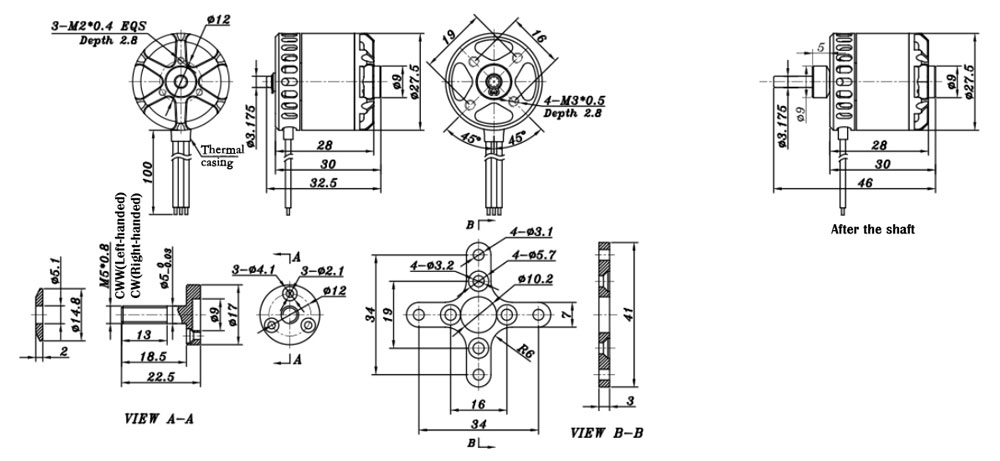

Dimensions (Unit: mm)
Tips: How Much RPM Motor is Required for Drones?
The brushless drone motor used in a drone is defined by "KV". The general rule of thumb for finding the speed of a brushless motor at zero loads is RPM = KV * Volt. KV = the rating of the brushless motor & Volt = the total potential difference of the lithium polymer battery.
A wide variety of brushless motors are used in drones, ranging from 40KV to 1900KV. Quadcopters and triacopters use higher KV motors, and octocopters use lower KV motors. The lower KV motors run at slower RPMs, but they can generate more thrust by handling larger propellers. The higher KV is better suited to handle smaller propellers. As a result, low KV brushless motors can produce more thrust even at low speeds. They are also more expensive than higher KV motors.
The volts of a lithium polymer battery now depend on the "number of cells". (1 cell = 3.7 V) Typically, drones use 3 to 6 Li-Po cells. Therefore, the volts are between 11.1 V and 22.2 V. Now, you can calculate the speed (RPM) of the drone. The speed (RPM) of the motor ranges from 1000 to 20,000.
