- Stock: In Stock
- Model: SCJ004246
- SKU: SCJ004246
Ask a Question About This Product
- Description
About this product
1. Made from alloy steel for excellent vibration control.
2. Inserts are not included but available (AP..1604..).
3. All critical surfaces precision ground.

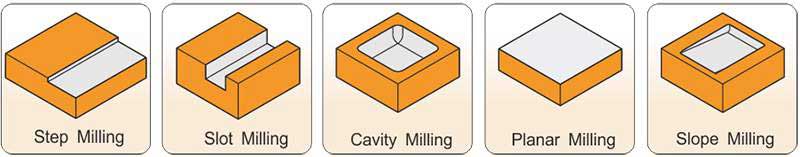

4. Suitable for most face milling applications on steel, stainless steel, and cast iron.

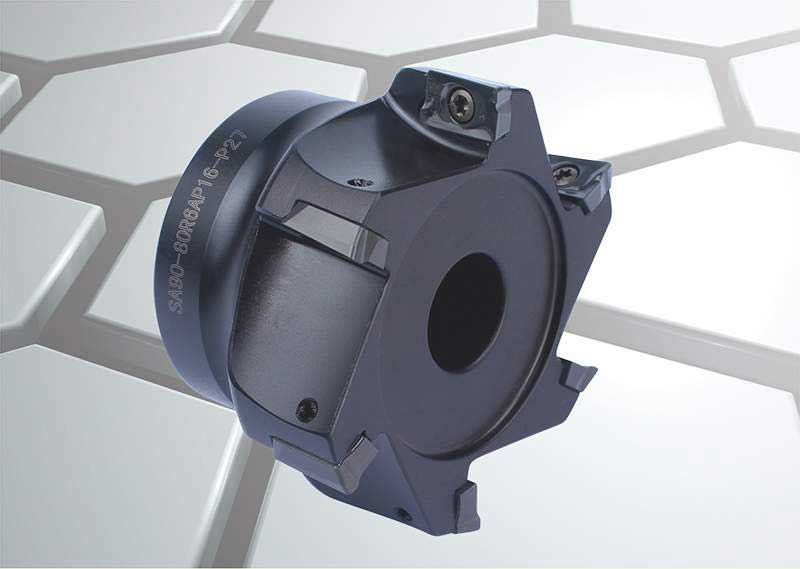

The following schematic diagrams and product pictures are only for reference.
If you have any questions, please contact us.
Benefit from the 90 degree lead angle allows efficient square shoulder milling and ability to machine workpiece with weak
structure or thin walls over 45 degree face mill. It uses industry standard /APMT/APET/APMT1604 insert which has
a positive 11 degree clearance angle and depth of cut of 0.61" or 15.5mm. The insert pockets are designed to be 19 degree
positive inclined to minimize vibration and allowing fast cutting and lowering cutting noise.
1. Made from alloy steel for excellent vibration control.
2. All critical surfaces precision ground.
3. Made from alloy steel for excellent vibration control.
4. Torx wrench and insert screws are included.
5. Inserts are not included but available (/APMT/APET/APHT1604..).
6. Fitted with 11 degree positive rectangular inserts allow high depth of cut and feed per tooth.
7. Unique insert screw hole design to improve clamping rigidness.

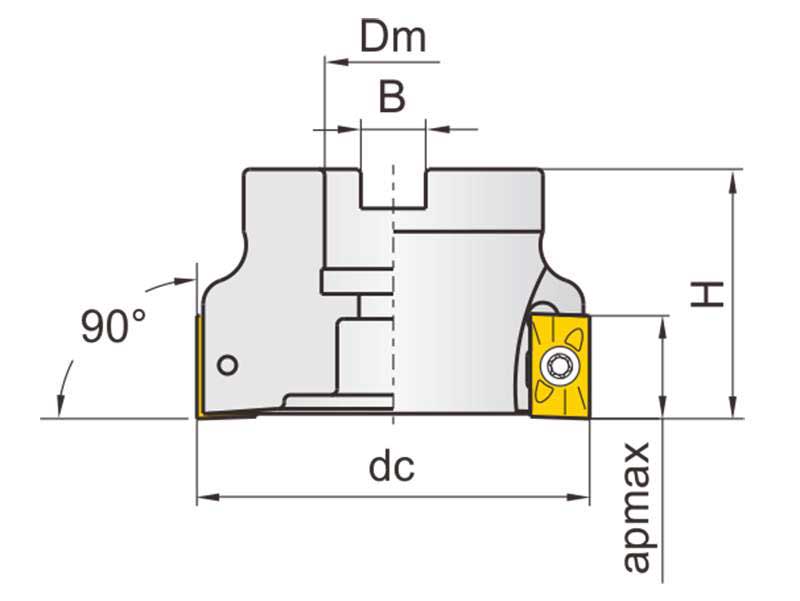

| Condition | Brand-New | B | 0.32" |
| Brand | H(overall height) | 1.75" | |
| SKU | SCJ004246 | Number of Flutes | 5 |
| Type | SA90-250R5AP16-P075 | Insert | /APMT/APET/APHT1604.. |
| apmax(axial depth of cut ap) | 0.61" | Coolant Through | No |
| dc(cutting diameter) | 2.50" | Net Weight | 0.93 lb |
| Dm(arbor hole diameter) | 3/4" | Gross Weight | 1.30 lb |
