BT40 Shnak 8 PCS ER32 Collet Set Wrench in Fitted Strong Box

Buy Now

Specifications

attribute-list
Size	BT40 ER32
Drawbar Thread	M16

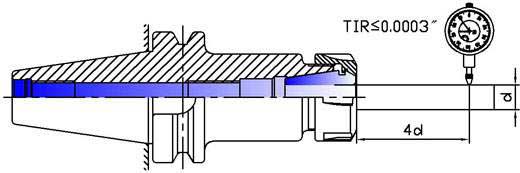

TOTAL TIR	≤ 0.0003"
Through Coolant	YES
Collet Nut Diameter	1-31/32"
Balanced to	G6.3 20000 RPM
Collet Qty	8 Pcs
Net Weight	6.3 lbs
Collet Range	5/32" - 3/4"
Gross Weight	7.2 lbs
Projection	2-49/64"
Meas	9.5 x 7.9 x 3.6 in.

Description

About this product

1. 8 pcs ER32 chucks sets includes the following collet sizes: 5/32" ,1/4",5/16", 3/8", 1/2", 9/16, 5/8" and 3 /4"

2. 1 pcs pull stud, 1 pcs spanner and 1 pcs clamping nut

3. BT40-ER32 chuck holder

4. Comprehensive accuracy to 0.0003"

5. Balanced to 20000 rpm @ G6.3

6. With fitted case

1. 8 pcs ER32 chucks sets includes the following collet sizes: 5/32" ,1/4",5/16", 3/8", 1/2", 9/16, 5/8" and 3 /4"

2. 1 pcs pull stud, 1 pcs spanner and 1 pcs clamping nut

3. BT40-ER32 chuck holder

4. Comprehensive Accuracy to 0.0003"

7. Through-spindle coolant capability and balanced to 20000 rpm @ G6.3

5. Spring collets are hardened and ground for maximun holding power and ultra precision

6. Flute holding capability for the highest concentricity and clamping power

7. High precision collet chuck system suitable for all milling and drilling applications
