100W Co2 Laser Engraving Cutting Machine 27 ⁹/₁₆X19 ¹¹/₁₆ Inch Laser Engraver Auto laser Compatible With LightBurn Software Industrial water chiller

Buy Now

Specifications

attribute-list
Laser Power	80W
Working Area	27 ⁹/₁₆X19 ¹¹/₁₆ Inch
Laser Type	CO2 Sealed Glass 10.64 um
COOLING TYPE	Circulating Water Cooling and Protection System
Worktable	± 10" Electric Up & Down Aluminum Platform
Engraving Thickness	0 - 3/8" (0 - 10 mm) depends on material
Cutting Thickness	0 - 3/8" (0 - 10 mm) depends on material
Locating Precision	± 0.01 mm
Resolution ratio	≤ 1,000 dpi
Min. Character Size	1 mm × 1 mm
Min. Character Letter	2 mm × 2 mm
Operating Temperature	41 ℉ - 122 ℉ (5 ℃- 50 ℃)
Data Transfer Interface	USB 2.0
Max. CUTTING SPEED	3/8"/s (10 mm/s)
Max. ENGRAVING SPEED	23-5/8"/s (600 mm/s)
System Environment	Windows 7/8/9/10/11/12
Graphic Format Supported	Files CorelDraw Identify (BMP, JPEG, AI, PLT etc.)

Description

About this product

1. Laser Power for the laser cutting machine: CO2 Sealed Glass 100W

2. Working Area: 27 ⁹/₁₆X19 ¹¹/₁₆ Inch

3. Certification for the Co2 Laser Engraving Cutting Machine: FDA Certified

4. Power Supply: AC 110 V ± 10%, 60 Hz

5. System Environment: Windows 8, Windows 9, Windows 10, Windows 11,Windows 12

6. Industrial water chiller included, working indicator

Packaging Method	Wooden Crate
Machine Dimension	56" L × 34" W × 36" H
Machine Weight	485lbs (220 kg)
Package Dimension	61" L × 40" W × 47" H (1,550 mm × 1020 mm × 1200 mm)
Package Weight	661lbs (300 kg)

100W Co2 Laser Engraving Cutting Machine 27 ⁹/₁₆X19 ¹¹/₁₆ Inch Laser Engraver Auto laser Compatible With LightBurn Software Industrial water chiller

This Laser Engraver is equipped with 100W CO2 laser tube. It is used to engrave on wood, bamboo, crystal, leather, rubber, marble, ceramics and glass and etc. It supports multiple graphic formats, such as HPGL, BMP, GIF, JPG, JPEG, DXF, DST. It features DSP Control System for TL directly, also supports CoreDraw and Auto CAD and other advance software.

This product is widely used in industries including arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping, packaging and paper industry.

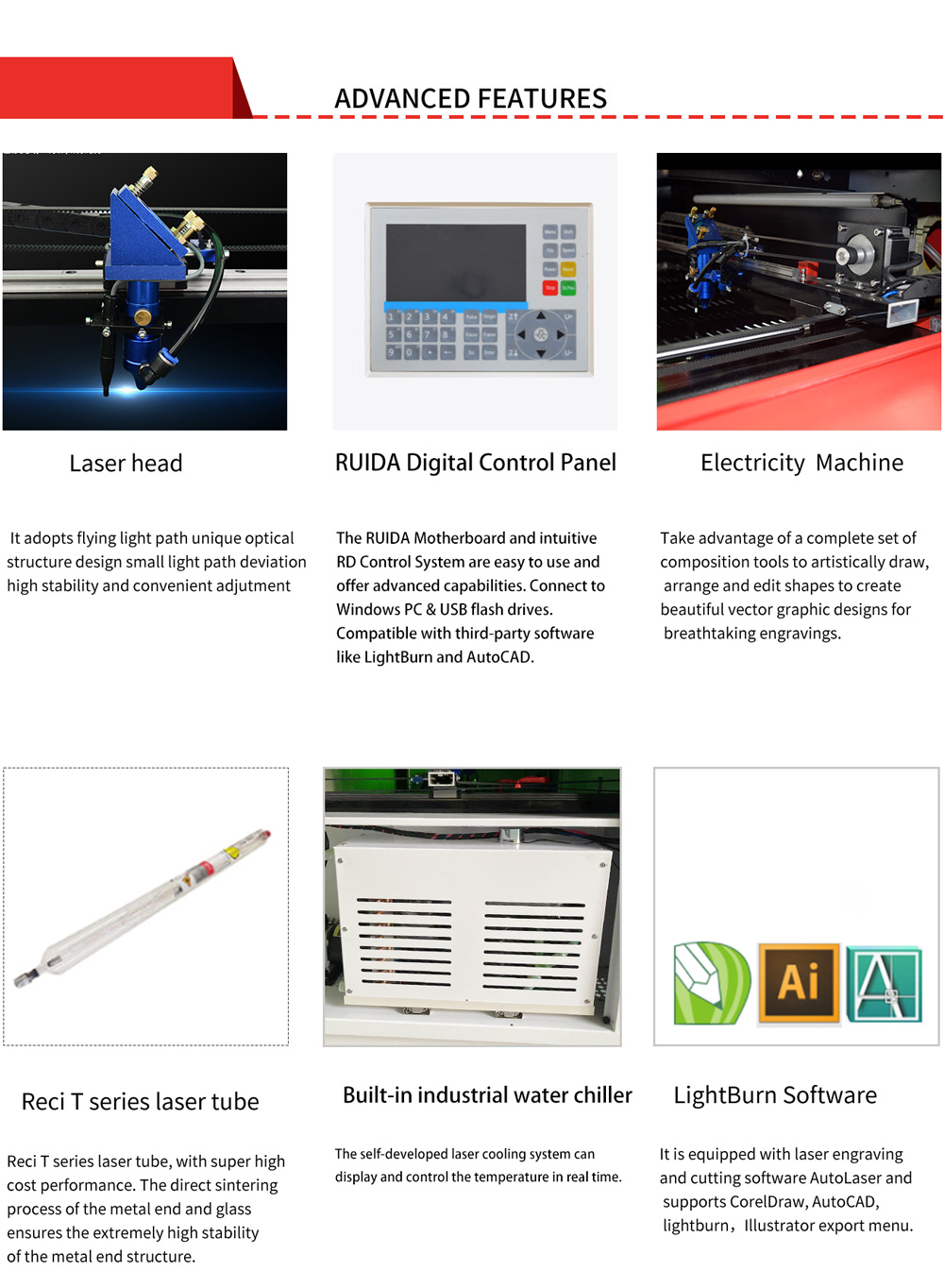

Features:

1. Quality CNC machined parts for durability Guaranteed

2. Upgraded control board for more accurate currency adjustments

3. Powerful exhausting fan for fumes and smoke extraction

4. USB port to connect the engraver to a computer

5. Windows compatible (NOT compatible with Macos system)

6. FDA certified

7.Comes with a chiller, working indicator

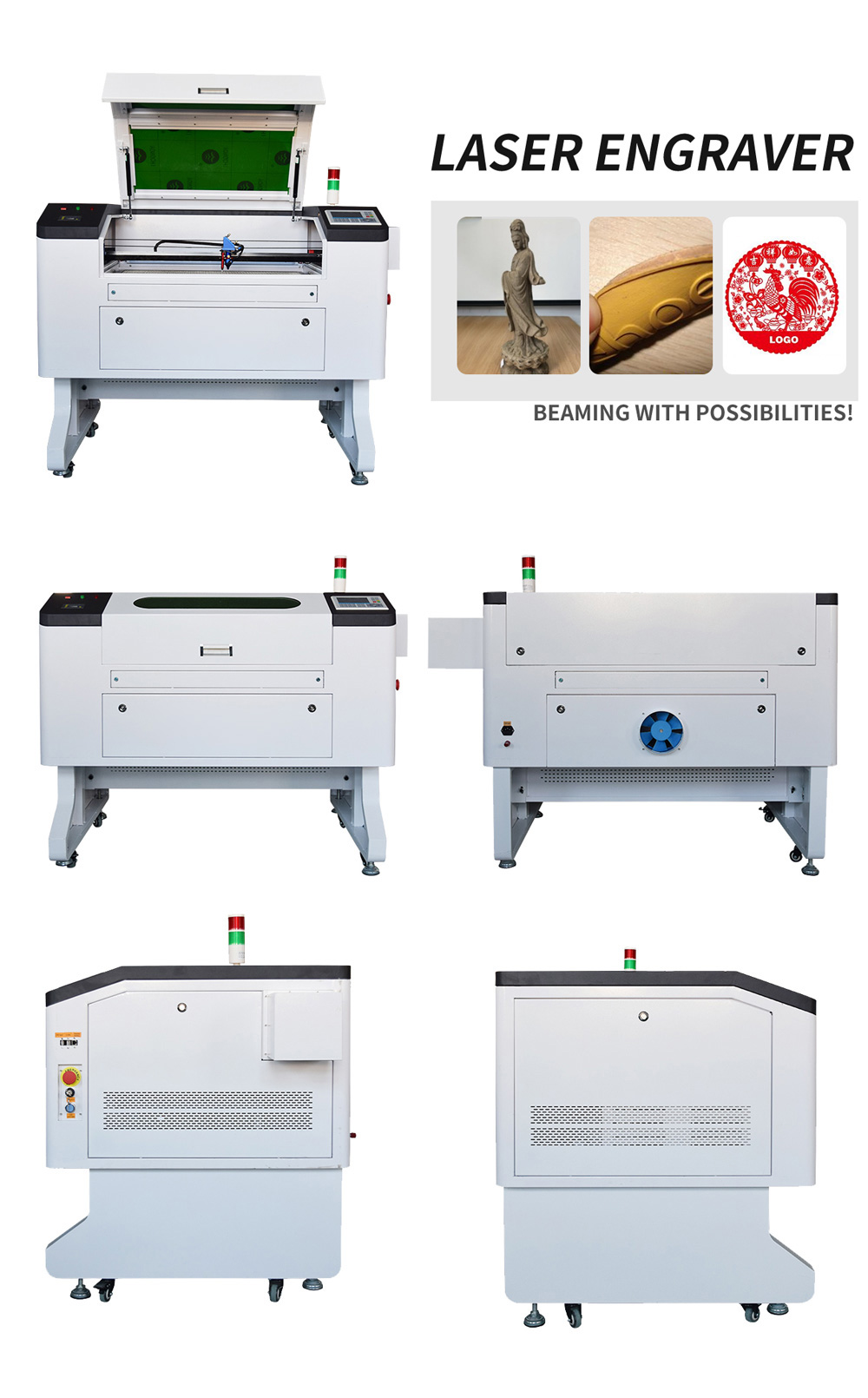

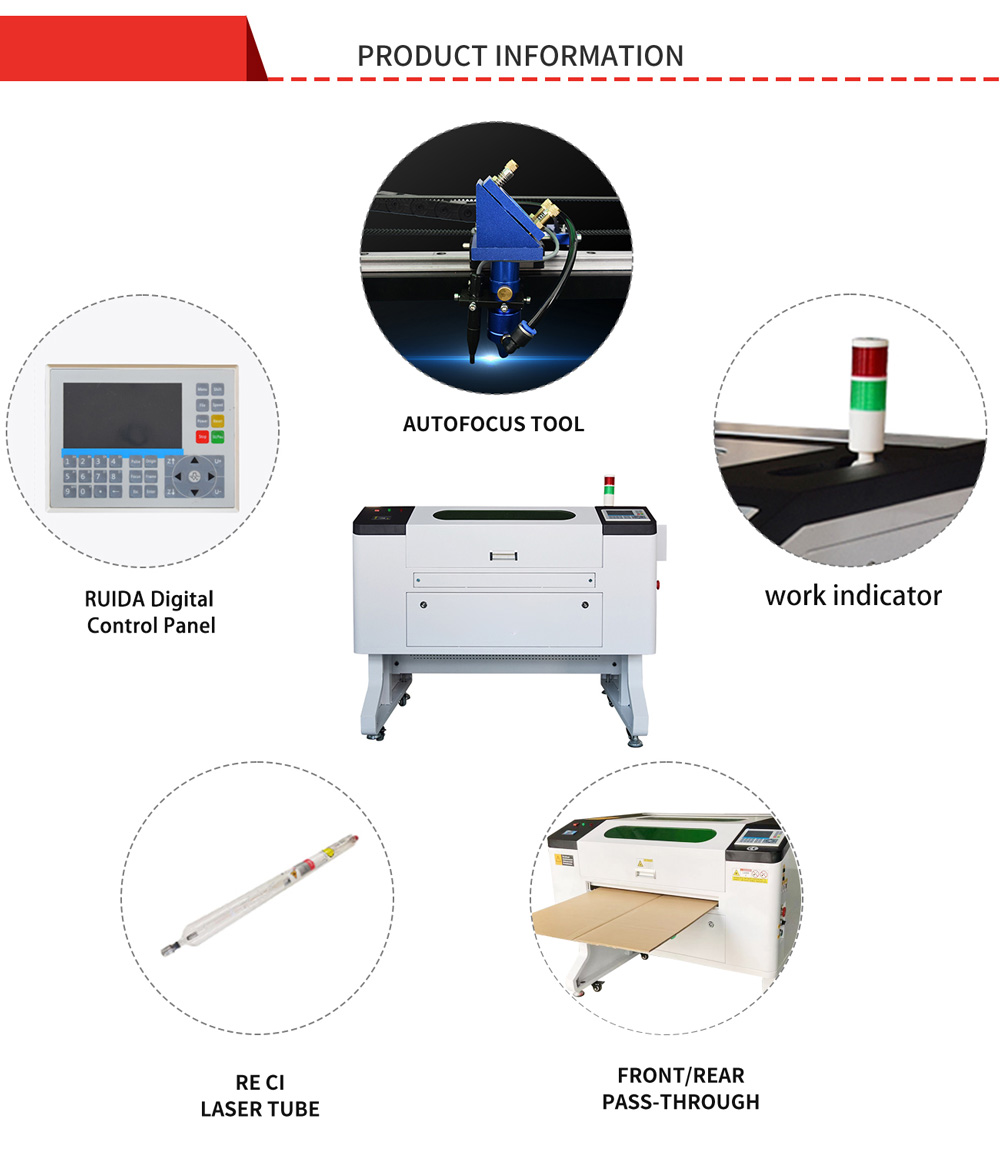

Product Illustration

Accessories
