- Stock: In Stock
- Model: SCJ004044
- SKU: SCJ004044
Ask a Question About This Product
- Description
1. Certification: FDA Certified.
2. Power Supply: AC 110 V ± 10%, 60 Hz.
3. Small Working Size: 23.6" × 15.7" (1.96' × 1.3' / 600mm × 400mm).
4. Aipulong 40W Glass Laser Tube.

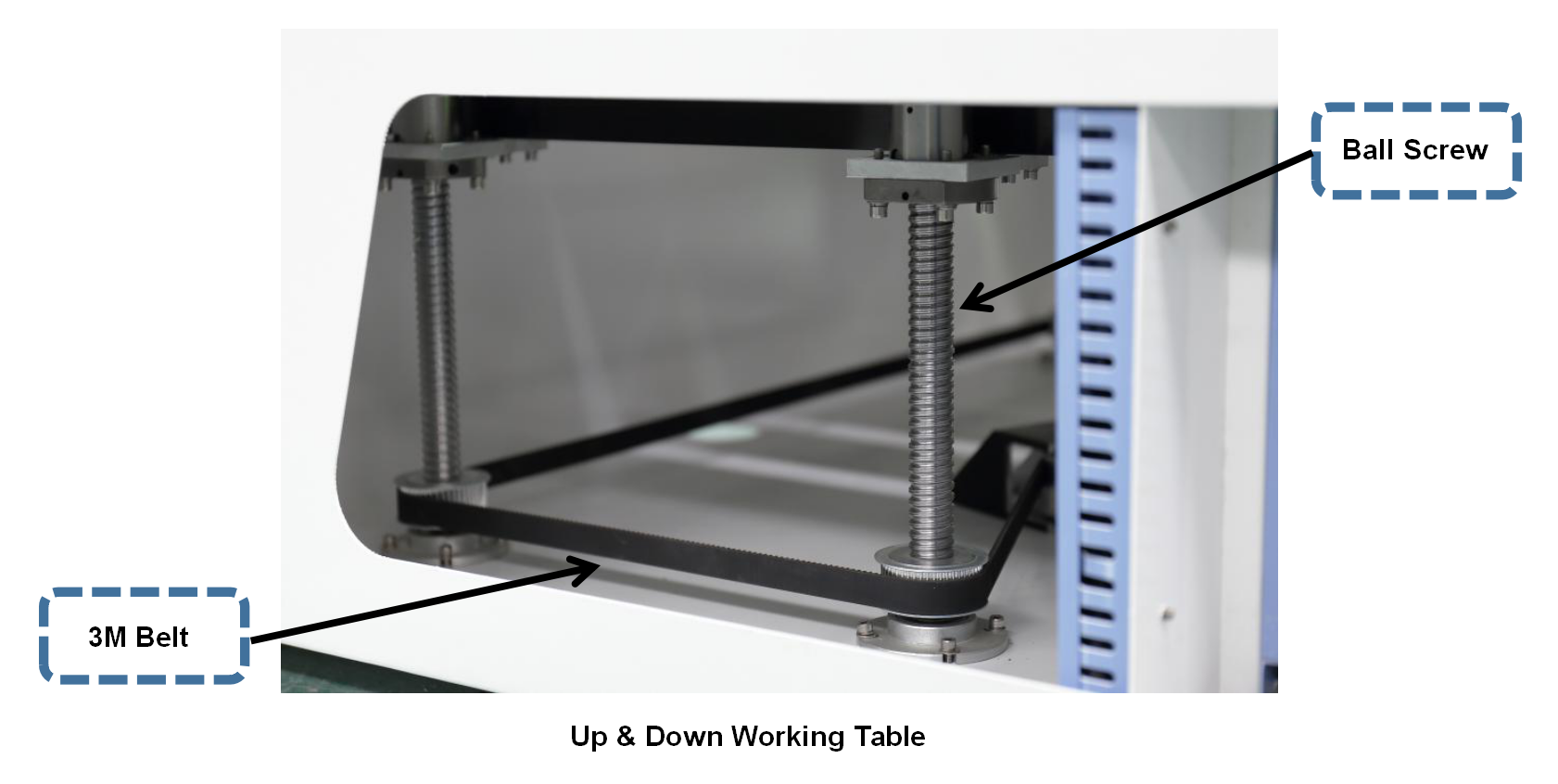

5. Blade knife & Honeycomb working table ( Lifting platform) , suitable for processing small material.
Package

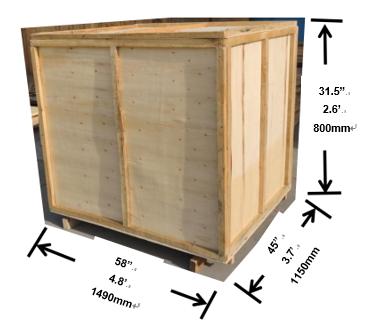

Package Size: 58" × 45" × 31.5" (1490mm × 1150mm × 800mm)
G.W/N.W: 210kg/120kg (462 lb/246 lb)
Packing Method: 1 Set in 1 Wooden Case

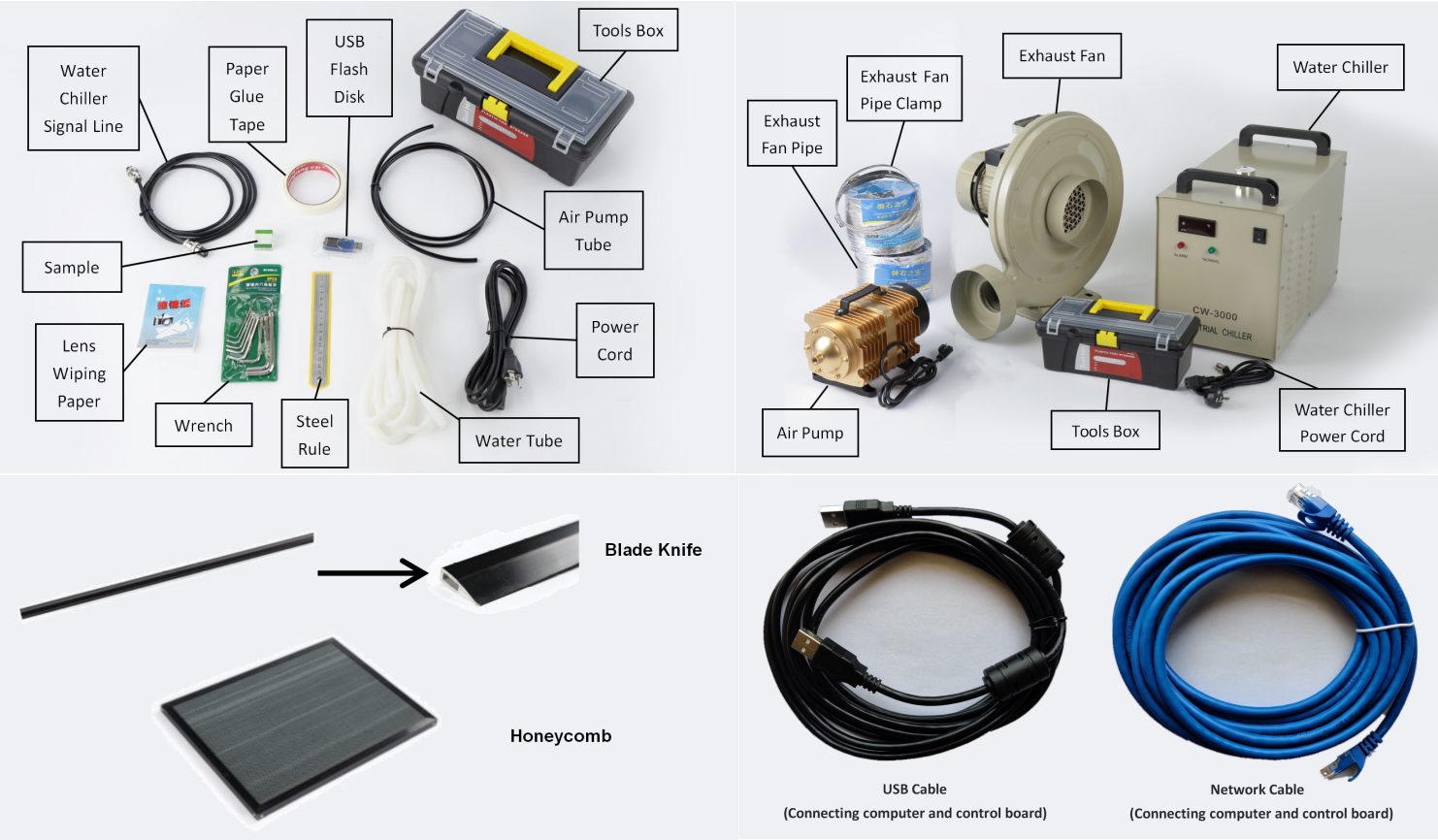

Packing list
Item | Qty. | Brand | Item | Qty. | Brand | |
Laser machine | 1 | AQ | Software of USB | 1 | / | |
Air pump | 1 set | Hailea | Wrench | 1 set | / | |
Black air pipe | 1 | / | Steel ruler | 1 | / | |
Exhaust fan | 1 set | / | Paper glue tape | 1 | / | |
Silver exhaust pipe | 2 | / | 6mm Focusing block | 1 | / | |
Exhaust pipe clamp | 3 | / | Power cord | 1 | / | |
Water chiller | 1 set | WXD CW3000 | Lens wiping paper | 1 | / | |
White rubber water tube | 2 | / | Water protection line | 1 | WXD | |
Black USB cable | 1 | / | Power switch key | 2 | / | |
Blue network cable | 1 | / | Sample | 1 | / | |
Laser tube | 1 set | Aipulong 40W | Tools box | 1 | / |
◆ Specialized
design concept, tailored to users in different industries, reasonable structure,
beautiful appearance and practicality.

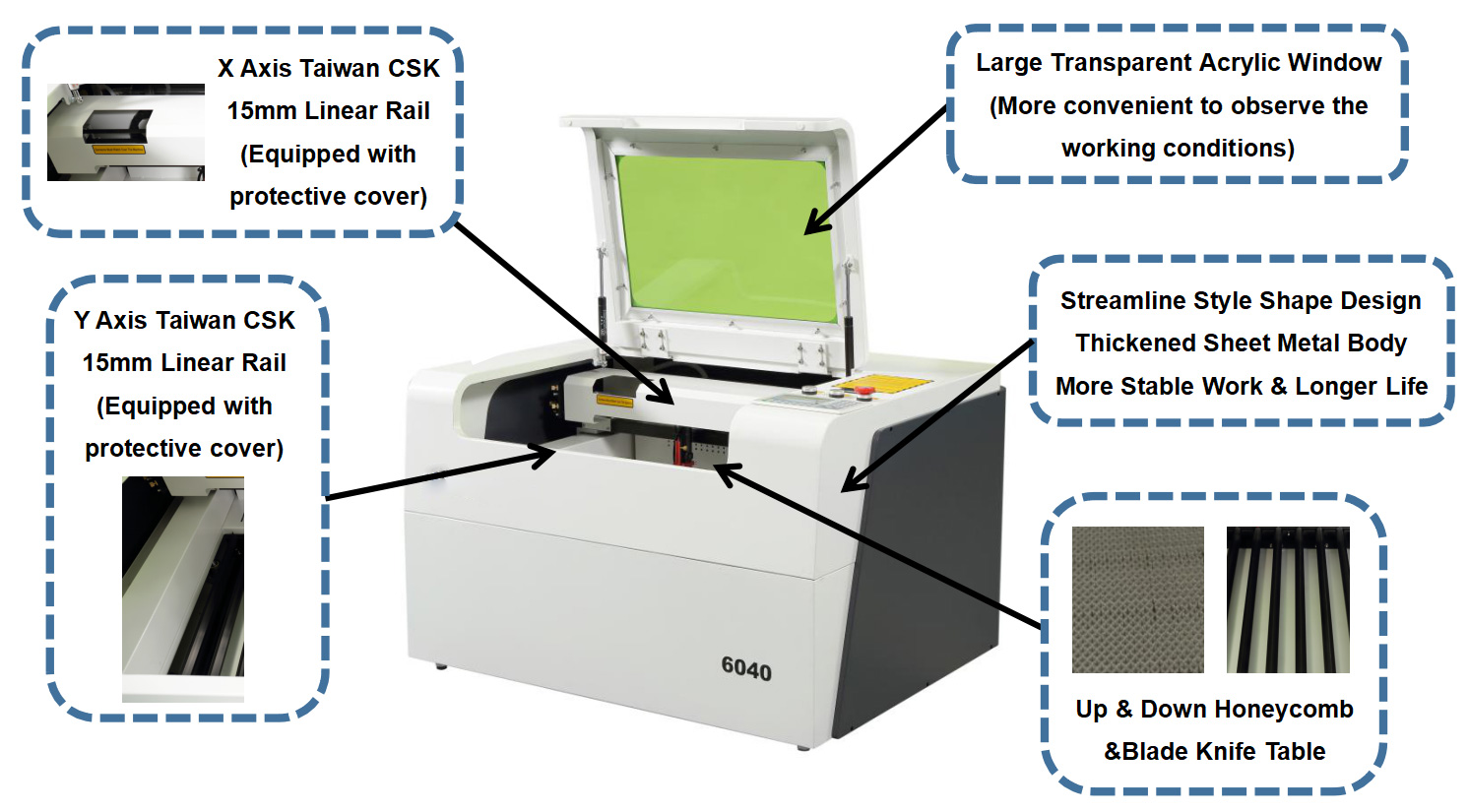

◆ The profile cast by the high-precision mold has a high
strength, high stability mechanical structure, stable numerical control
movement, high speed, high precision. The design concept of
front-to-back penetration of the machine body can facilitate front-to-back
feeding, and is suitable for processing unlimited length workpieces.
◆ Advanced industrial cooling system and automatic protection
function without water alarm have improved the stability and safety of
continuous work. Perfect dustproof and anti-pollution design greatly
improves the stability of the whole machine.
Application Industry And Materials
It is mainly used for processing large, heavy and
inconvenient moving materials, acrylic and double color plate carving, organic
glass carving and cutting, sign carving, crystal, photo frame, trophy carving,
license plate carving, etc.
Widely used in craft industry, leather and garment processing industry, model industry, packaging industry, product identification industry, etc.
6040 Aipulong 40W Cutting Parameter | |||
Material | Cutting Thickness | Maximum Speed(mm/s） | Best Speed(mm/s） |
Acrylic | 3mm | 15 | 10 |
5mm | 8 | 5 | |
8mm | 4 | 2 | |
10mm | 3 | ||
Wood Board ( Rare Hard Wood ) | 3mm | 15 | 12 |
5mm | 10 | 8 | |
10mm | 5 | ||
Density Board (High Density Board ) | 3mm | 9 | 7 |
5mm | 5 | 3.5 | |
Double Color Plate | 2mm | 15 | 13 |
PVC | 2mm | 35 | 32 |
3mm | 30 | 27 | |
4mm | 25 | 20 | |
Leather | A layer of | 15 | 12 |
Cloth | A layer of | 40 | 38 |
Paper | A layer of | 80 | 40 |
Attention:This data is for reference only due to the differences in equipment configuration and cutting process (laser power, water cooling, environment, air nozzle, Laser tube lifetime, etc.) adopted by different customers. | |||
Accessories DisplaySample Show
