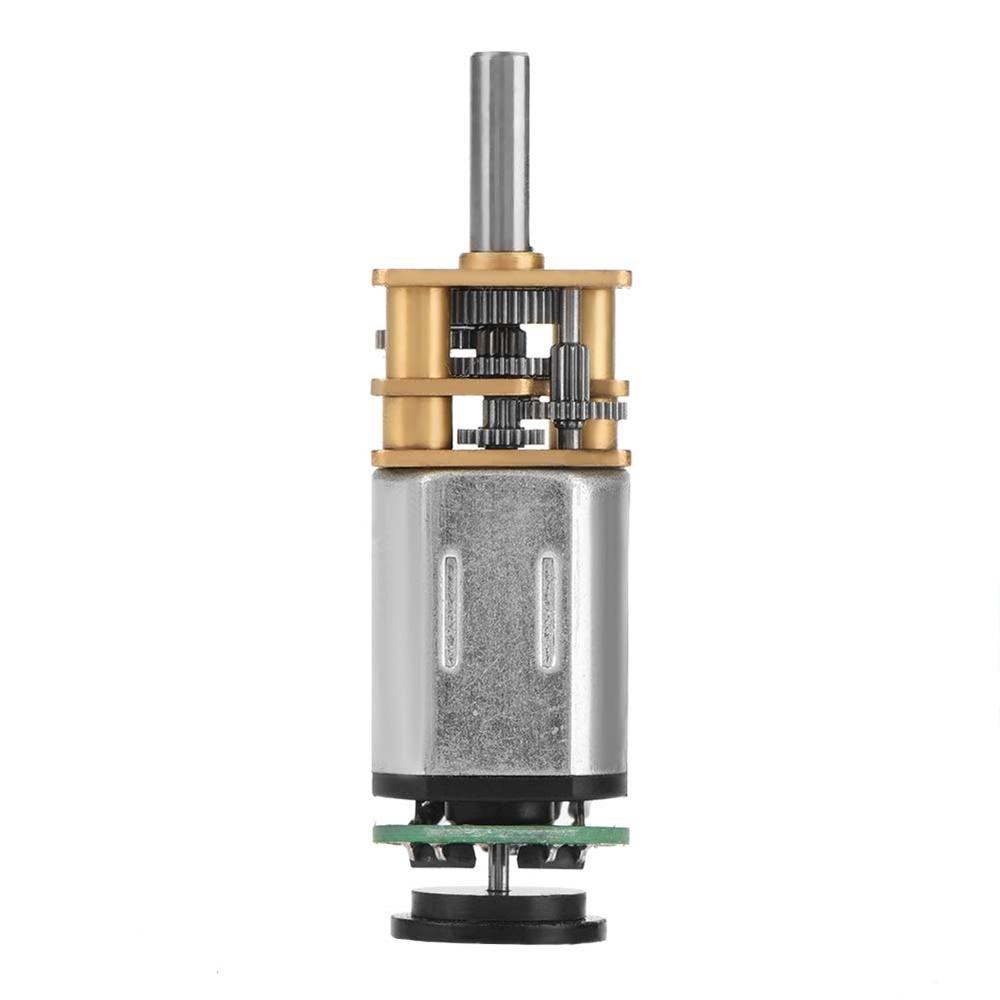

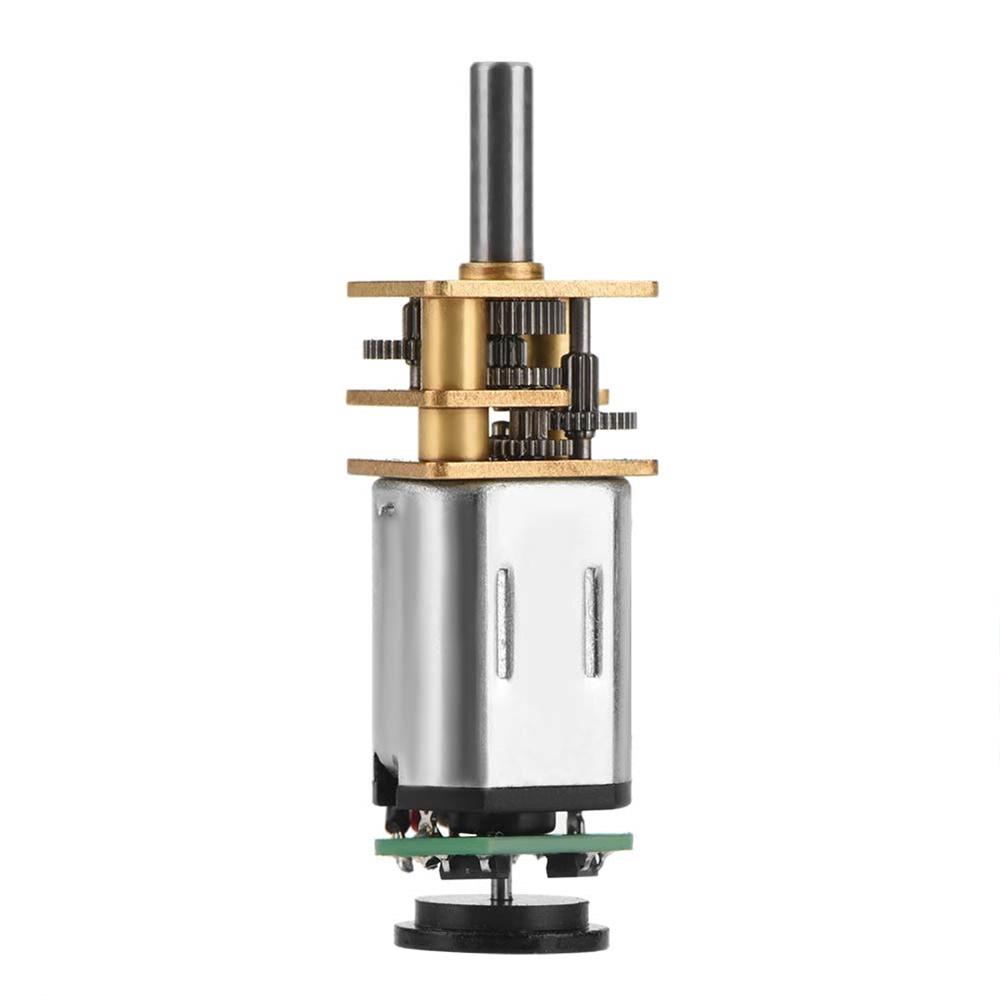

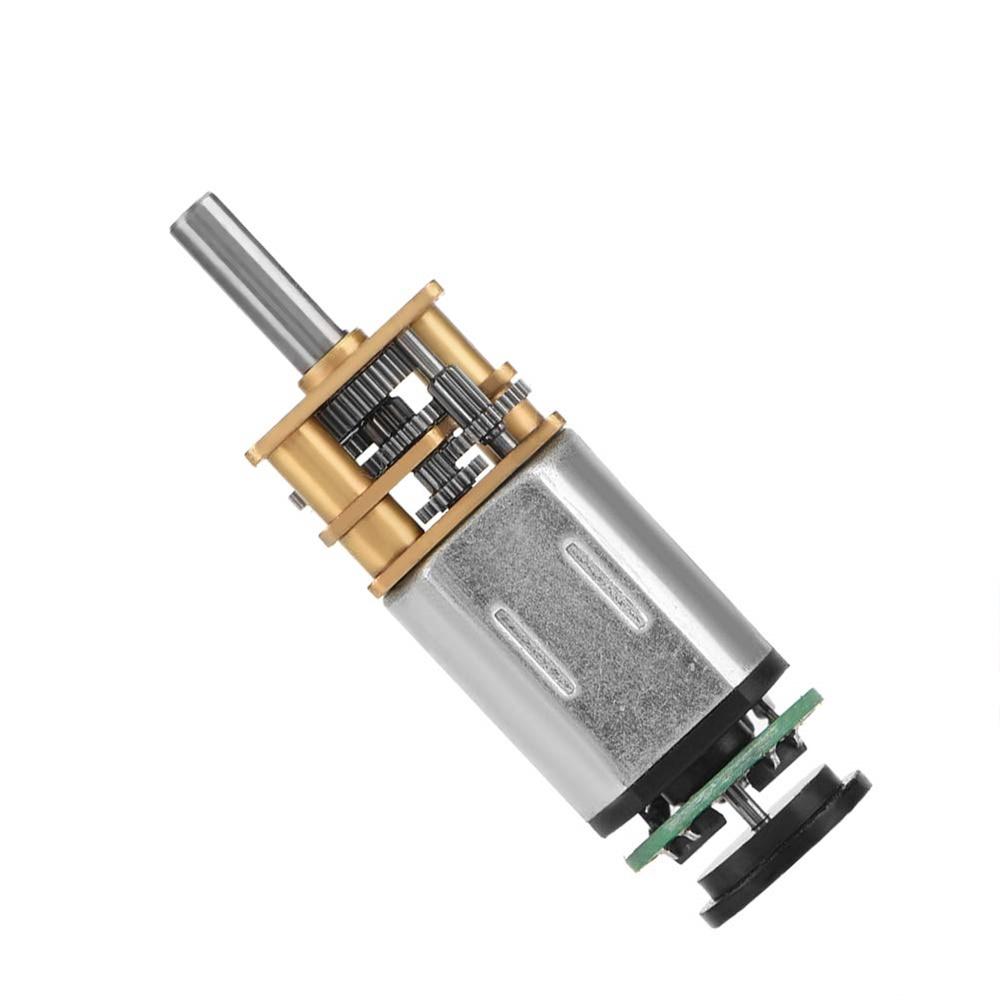

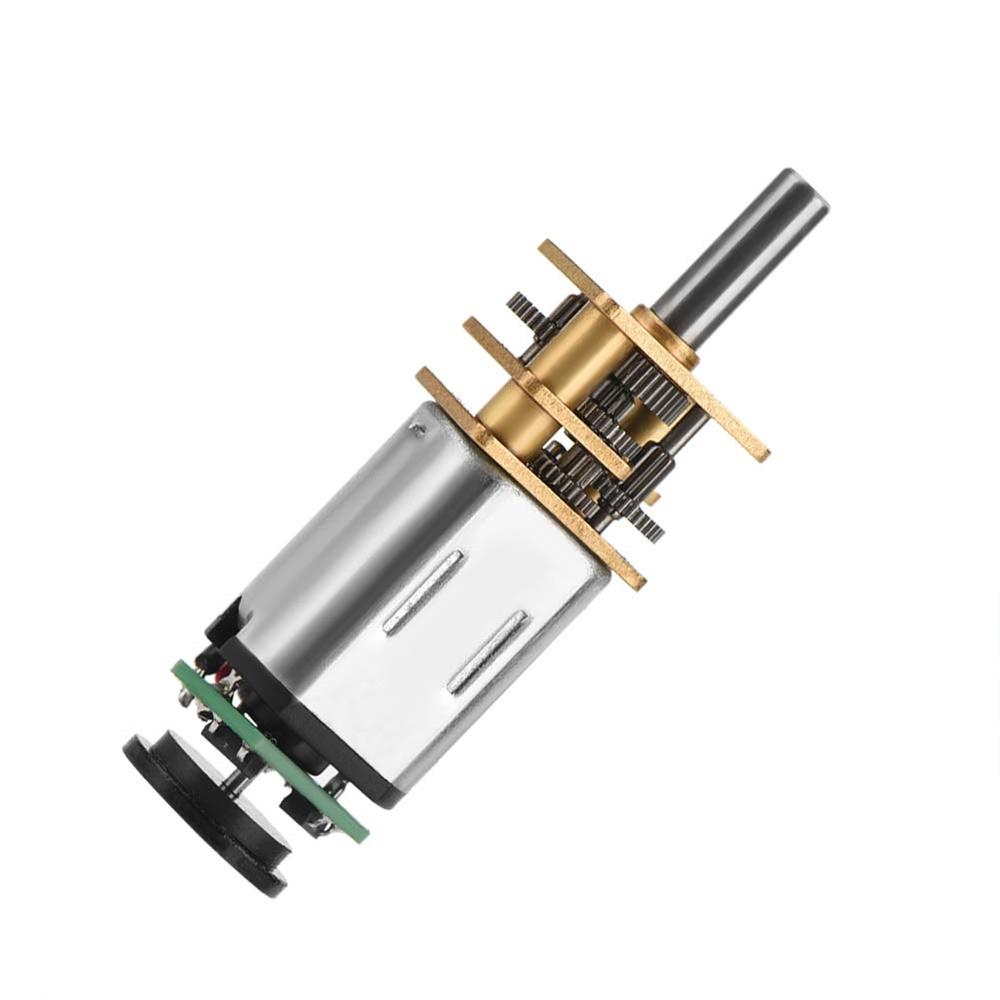

DC 6V Gear Motor Encoder Speed Reduction Gearbox 30/50/70/200/500RPM

DC 6V N20 Gear Motor Encoder Speed Reduction Gearbox 30/50/70/200/500RPM

Features:

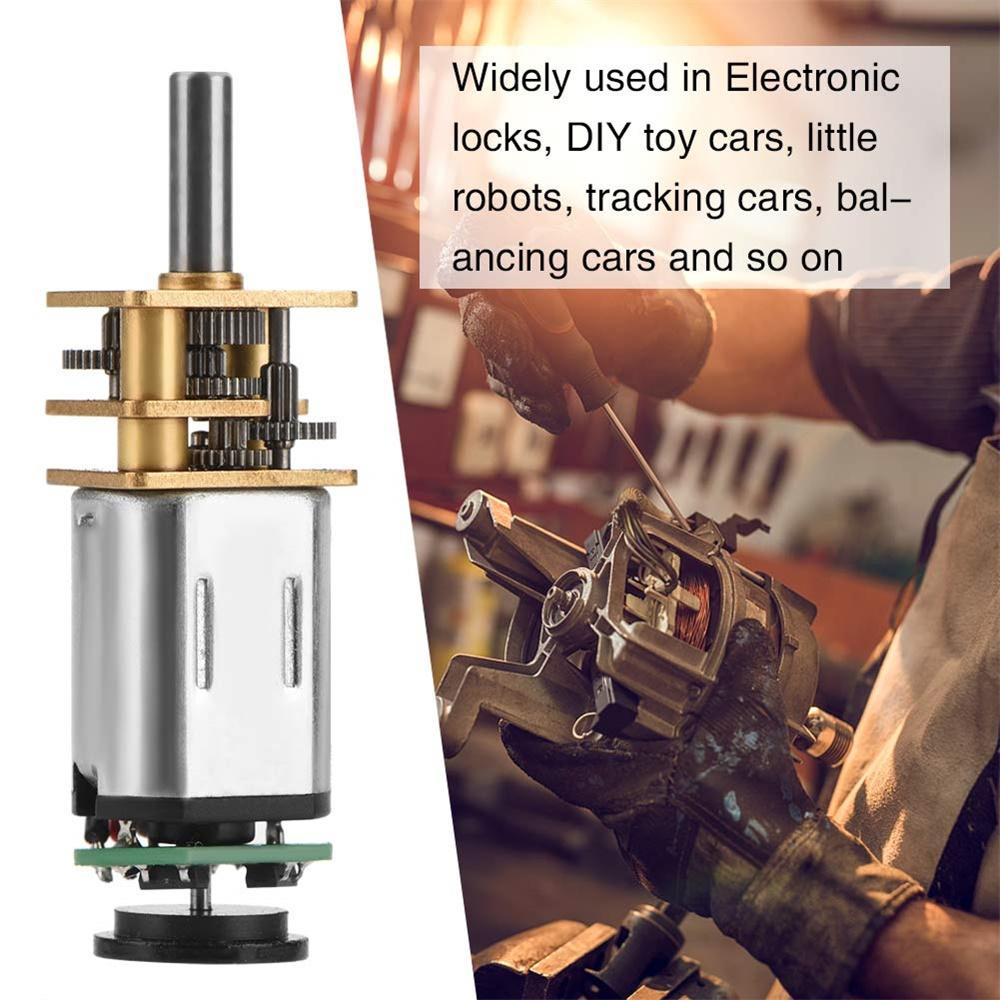

- [Widely Used]: Gear motors can be found in many different applications, and are probably used in smart toy car, robot, printer, etc.

- [Multiple Speed Options]: There are five reduction gear motors of different speed and you can choose the one you need, Speed: 30RPM, 50RPM, 70RPM, 200RPM, 500RPM.

- [Full Metal Gears]: The metal gear in the gear box has a strong carrying capacity, high temperature resistance, wear resistance, ruggedness and other characteristics effectively protect the main body of the worm gearbox motor.

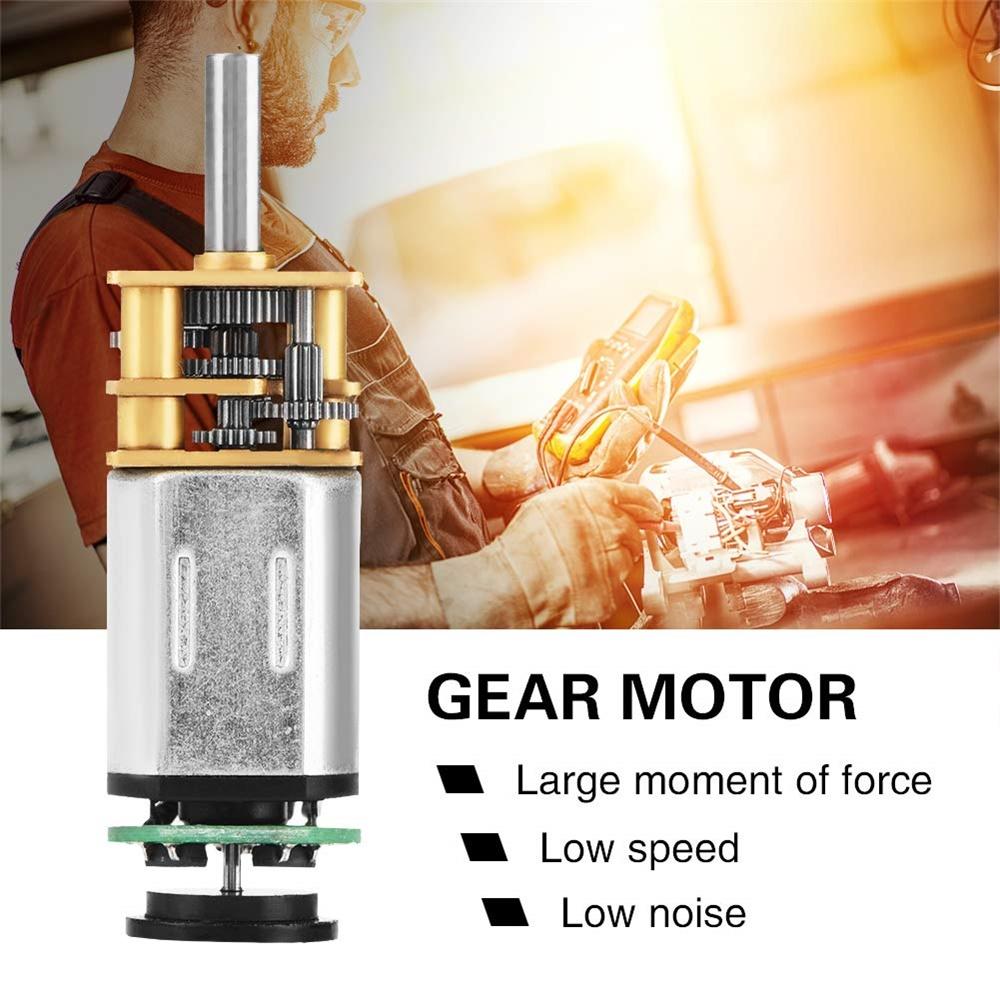

- [High Torque]: Gear motors are primarily used to reduce speed in a series of gears, which in turn creates more torque.

- [Specifications]: Voltage: DC 6V | Power: 2W | Output signal: AB phase | Shaft length: 10mm/0.4in | Shaft diameter: 3mm/0.1in | Hall response frequency: 100KHz.

Specification:

【General parameters】:

【Encoder details】:

Specification:

1. Two-channel Hall encoder

2. Maximum response frequency 100KHz

3. Number of output pulses 3PPr

4. Temperature range -30℃-110℃

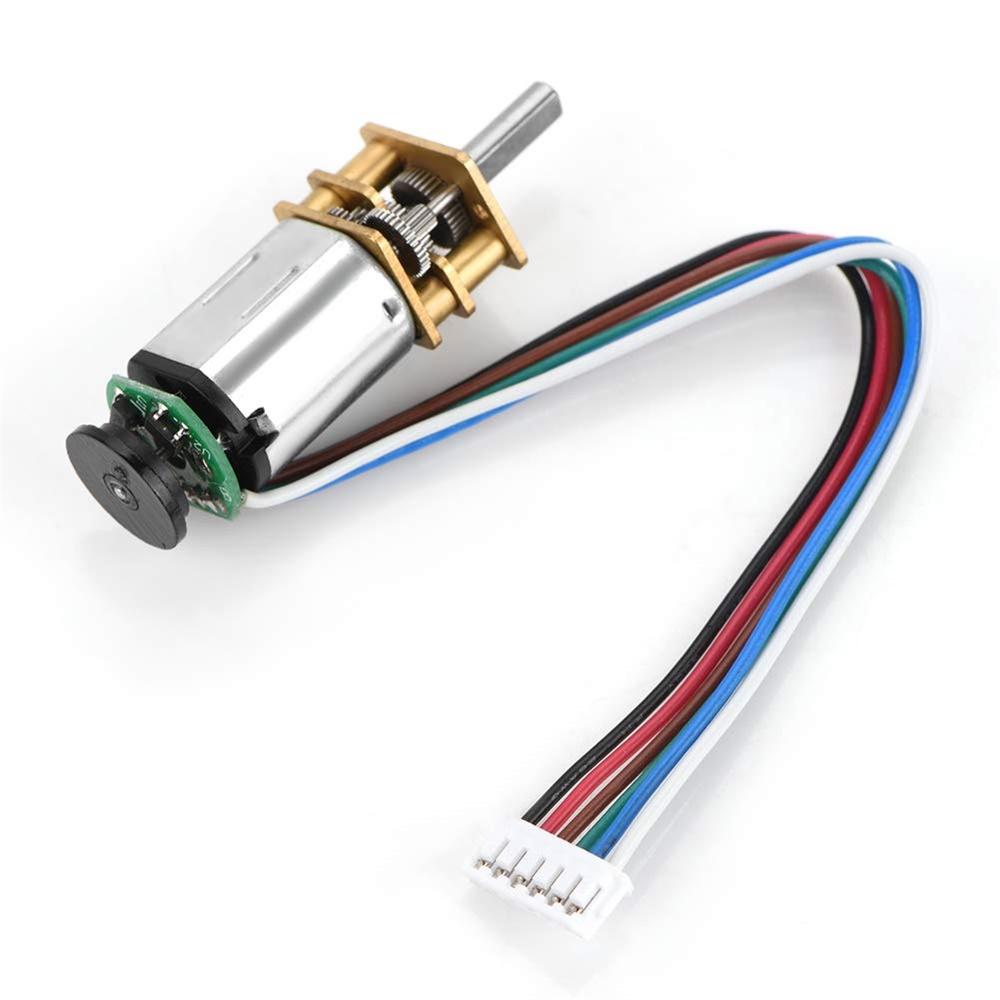

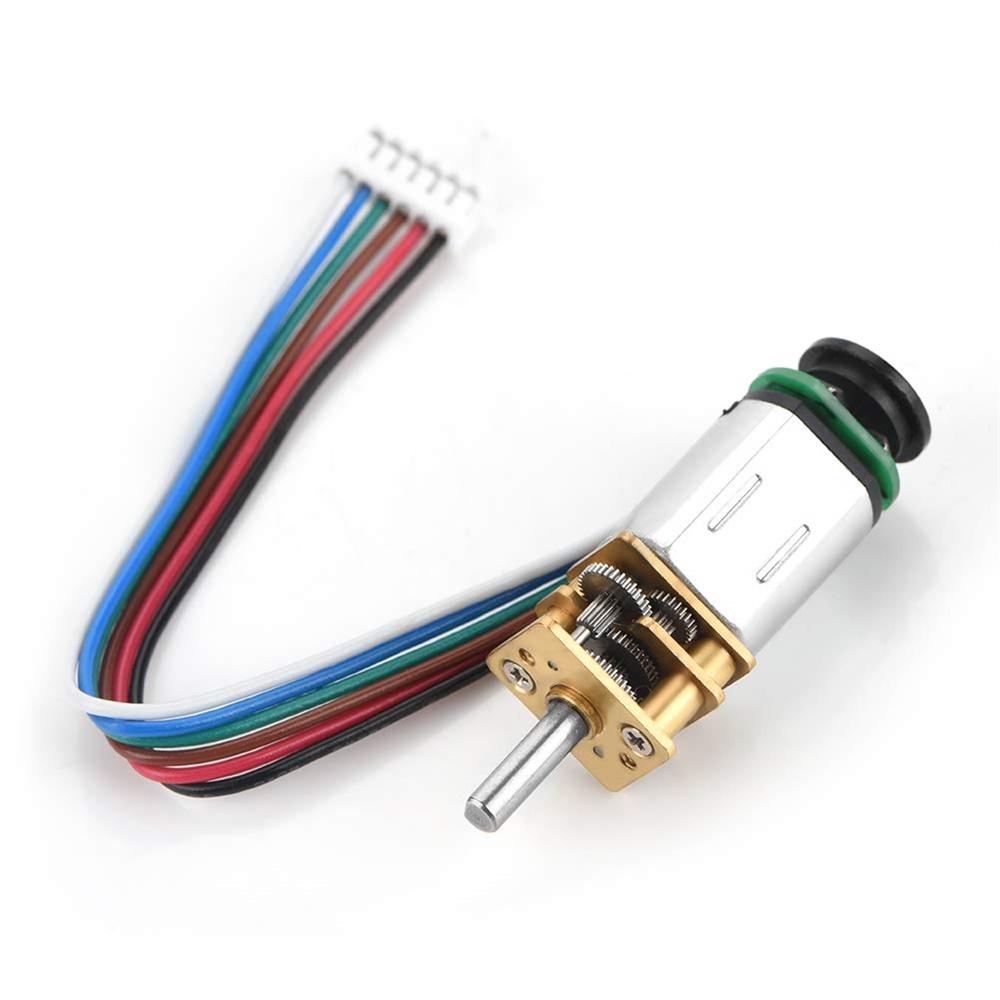

Wiring method:

Socket type: JST ZHP-6 P=1.5-6P

Cable specification: UL1007 26AWG

- Black lead: Motor power input negative "-"

- Red lead: Motor power input positive "+"

- Brown lead: Encoder power input positive "+"

- Green lead: Encoder power input negative "-"

- Blue lead: Encoder signal output phase A

- White lead: Encoder signal output phase B

Produce Included:

More Detail:
