DNC40X50 PPV-A DNC40X75 DNC40X100 DNC40X150 DNC40X200 DNC40X300 DSBC MBB SI CP95 6431 standard cylinder

Buy Now

Specifications

Other attributes
Place of Origin	Shanghai, China
Maximum Stroke	1000mm
Shaft Diameter	12mm-500mm
Applicable Industries:	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Retail, Construction worksxa0, Energy & Mining
Body Material:	Aluminum
Working Pressure:	0.05~1.0 MPa
Power	Pneumatic
Model Number	DNC50*100-S
Certificate:	ISO9001
Structure:	General Cylinder
Type	Actuator
Application	Truck
Material	plastic/carton
Packaging and delivery
Selling Units:	Single item
Single package size:	2X2X1 cm
Single gross weight:	10.000 kg
Packaging Details	Standard packing for DNC 40mm standard cylinder

Description

Product Description

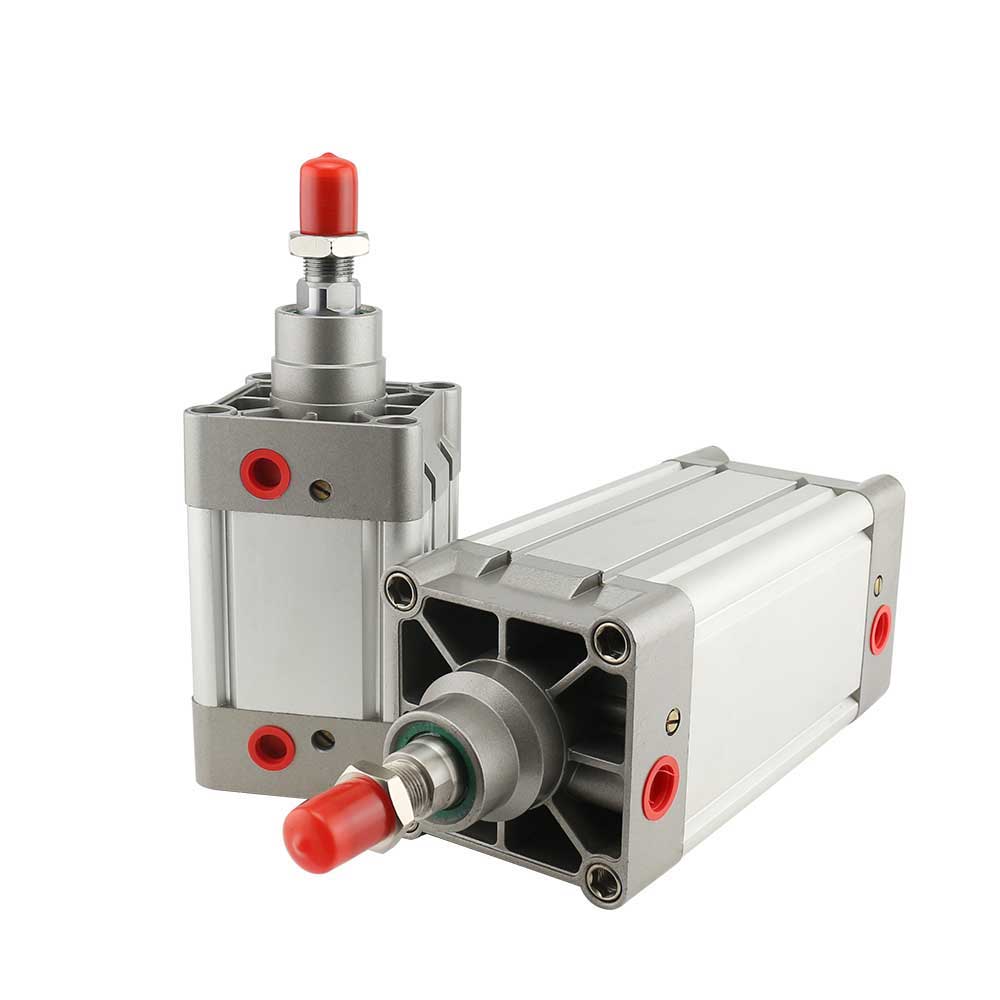

ISO6431 Standard DNC Series Air Pneumatic Cylinder,big thrust air cylinder

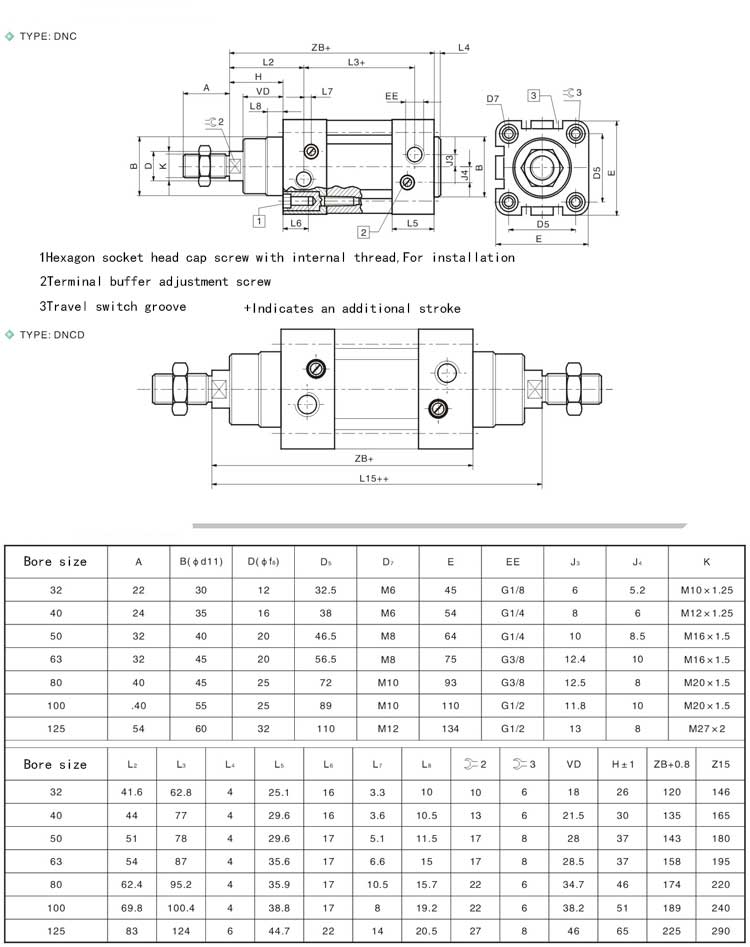

Bore size(mm)		32	40	50	63	80	100	125
Action		Double acting,single/double rod
Fluid		Filtered compressed air
Proof pressure		1.5Mpa
Operating pressure range		0.05~1.0Mpa
Ambient and fluid temperature		-20~80ºC(No freezing)
Port size		G1/8	G1/4	G1/4	G3/8	G3/8	G1/2	G1/2
Piston rod thread	Basic type	M10X1.25	M12X1.25	M16X1.5		M20X1.5		M27X2.0
	K3	M6	M8	M10		M12		M16
	K5	M10	M12	M16		M20		M27
Cushion		Adjustable air cushion at both ends
