- Stock: In Stock
- Model: SCJ005581
- SKU: SCJ005581
Ask a Question About This Product
- Description

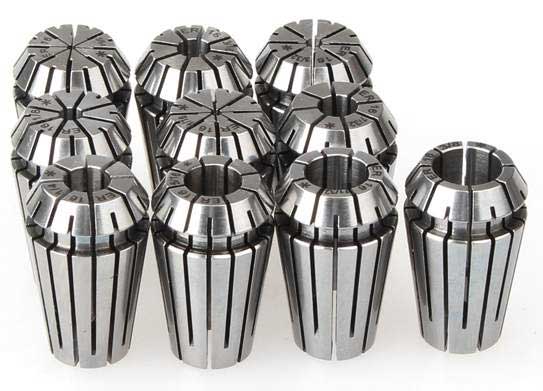

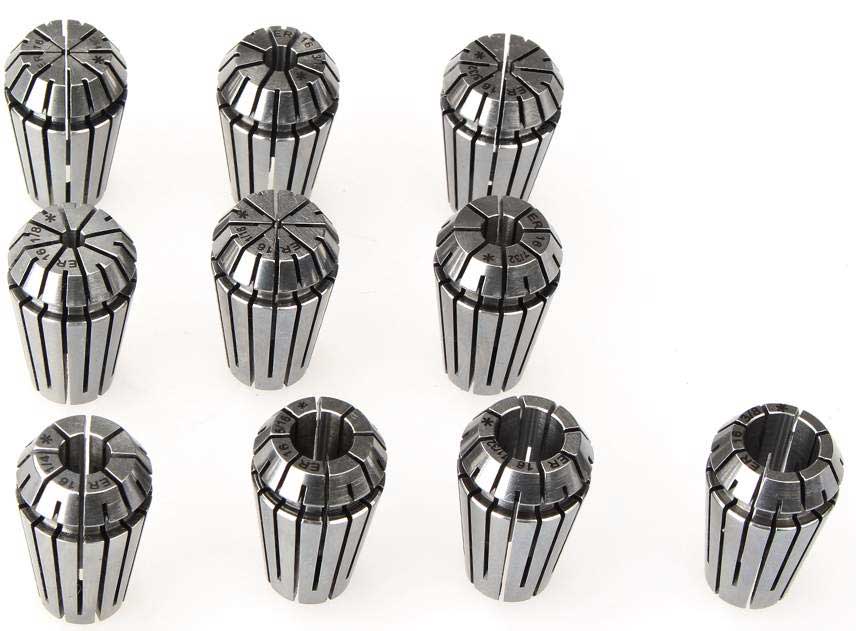

1. Comes in a plastic collet box.
2. Full set covers all sizes from 0.0273" to 0.375".
3. Total runout less than 0.0003" on these precise ER16 collets.
4. The following sizes are included 3/64 1/16 3/32 1/8 3/16 7/32 1/4 5/16 11/32 3/8.
5. It can be widely used for boring, milling, drilling and tapping operation.
◆ Made from 65Mn alloy steel and hardened to HRC 46-50
◆ All fractional size is true imperial size, not a metric conversion size
◆ All collets are checked its runout individually on 4 contact points by a high tolerance bench marked testing rod
◆ On size 1/8" and larger the runout is .0003"; under size 1/8 the runout is .00059"
◆ The size of the collet is the largest size it can hold and able to hold anything smaller within the collapsing range
This collet size is true fractional size, not a metric converting size and the surface on this collet has been
specially treated to increase its tool life. Runout is .0003".
| Condition | Brand-New |
| Brand | Socoje |
| SKU | SCJ005581 |
| Collet Series | ER16 |
| Collet Range(d) | 0.49" |
| Size | 3/64 1/16 3/32 1/8 3/16 7/32 1/4 5/16 11/32 3/8 |
| Diameter(D1) | 0.65" |
| Overall Length (L) | 1.06" |
| Runout | 0.0003" |
| Net Weight | 14.68 oz |
| Gross Weight | 17.63 oz |
| Type | Collet Grip Range |
| ER16-3/64 | 0.0469"-0.0273" |
| ER16-1/16 | 0.0625"-0.0429" |
| ER16-3/32 | 0.0937"-0.0741" |
| ER16-1/8 | 0.1250"-0.0850" |
| ER16-3/16 | 0.1875"-0.1475" |
| ER16-7/32 | 0.2187"-0.1787" |
| ER16-1/4 | 0.2500"-0.2100" |
| ER16-5/16 | 0.3125"-0.2725" |
| ER16-11/32 | 0.3438"-0.3038" |
| ER16-3/8 | 0.3750"-0.3350" |
