- Stock: In Stock
- Model: SCJ005593
- SKU: SCJ005593
Ask a Question About This Product
- Description
1. Comes in a plastic collet box.
2. Full set covers all sizes from 0.0850" to 1.000".
3. Total runout less than 0.0003" on these precise ER40 collets.
4. The following sizes are included 1/8 3/16 7/32 1/4 5/16 11/32 3/8 13/32 7/16 1/2 17/32 9/16 5/8 21/32 11/16 23/32 3/4 13/16 27/32 7/8 15/16 31/32 1.
5. It can be widely used for boring, milling, drilling and tapping operation.

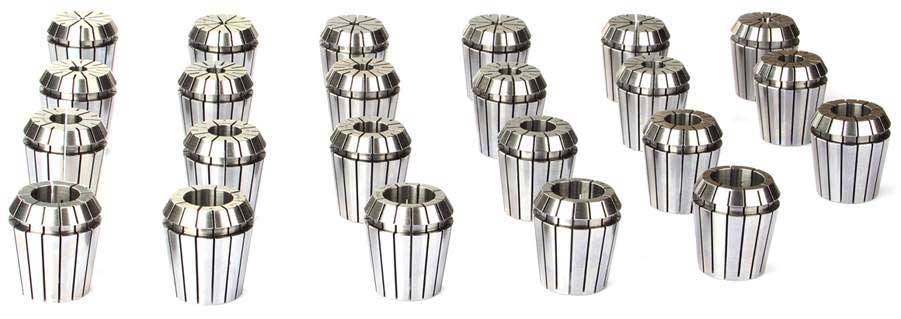

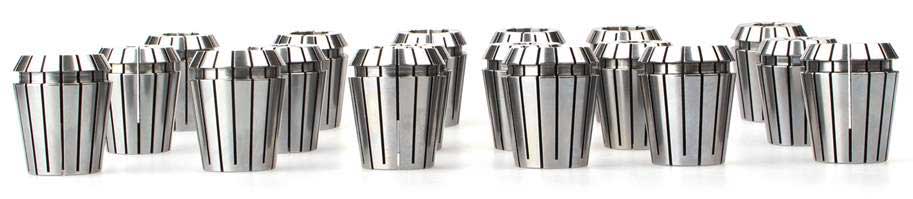

The following schematic diagrams and product pictures are only for reference.
If you have any questions, please contact us.
◆ Made from 65Mn alloy steel and hardened to HRC 46-50
◆ All fractional size is true imperial size, not a metric conversion size
◆ All collets are checked its runout individually on 4 contact points by a high tolerance bench marked testing rod
◆ On size 1/8" and larger the runout is .0003"; under size 1/8 the runout is .00059"
◆ The size of the collet is the largest size it can hold and able to hold anything smaller within the collapsing range
This collet size is true fractional size, not a metric converting size and the surface on this collet has been
specially treated to increase its tool life. Runout is .0003".
| Condition | Brand-New |
| Brand | Socoje |
| SKU | SCJ005593 |
| Collet Series | ER40 |
| Collet Range(d) | 1.25" |
| Diameter(D1) | 1.61" |
| Overall Length (L) | 1.78" |
| Runout | ≤0.0003" |
| Net Weight | 205.68 ounces |
| Gross Weight | 227.52 ounces |
| Type | Collet Grip Range |
| 1/8 | 0.1250"-0.0850" |
| 3/16 | 0.1875"-0.1475" |
| 7/32 | 0.2187"-0.1787" |
| 1/4 | 0.2500"-0.2100" |
| 5/16 | 0.3125"-0.2725" |
| 11/32 | 0.3438"-0.3038" |
| 3/8 | 0.3750"-0.3350" |
| 13/32 | 0.4062"-0.3662" |
| 7/16 | 0.4375"-0.3975" |
| 1/2 | 0.5000"-0.4600" |
| 17/32 | 0.5312"-0.4912" |
| 9/16 | 0.5625"-0.5225" |
| 5/8 | 0.6250"-0.5850" |
| 21/32 | 0.6562"-0.6162" |
| 11/16 | 0.6875"-0.6475" |
| 23/32 | 0.7187"-0.6787" |
| 3/4 | 0.7500"-0.7100" |
| 13/16 | 0.8125"-0.7725" |
| 27/32 | 0.8437"-0.8037" |
| 7/8 | 0.8750"-0.8350" |
| 15/16 | 0.9375"-0.8975" |
| 31/32 | 0.9687"-0.9287" |
| 1 | 1.000"-0.9600" |
