- Stock: In Stock
- Model: SCJ005673
- SKU: SCJ005673
Ask a Question About This Product
- Description

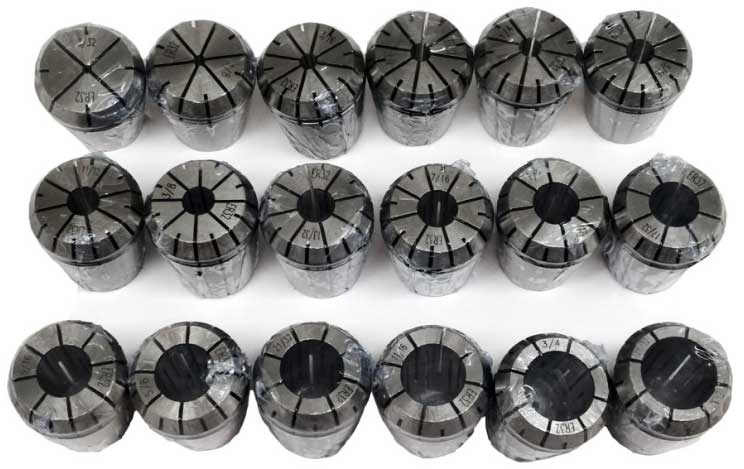

1. This set includes 23 individual ER40 collets in 1/32" increments.
2. The following sizes are included - 1/8, 3/16, 7/32, 1/4, 5/16, 11/32, 3/8, 13/32, 7/16, 1/2, 17/32, 9/16, 5/8, 21/32, 11/16, 3/4, 25/32, 13/16, 27/32, 7/8, 15/16, 31/32, 1"
3. Total runout less than 15 micron (0.00059") at 4 × d position on these precise ER32 collets
4. Full set covers all collet sizes from 1/8" - 1" ( 0.125" - 1" )
This set includes 23 individual ER40 collets in 1/32" increments.
The following sizes are included - 1/8, 3/16, 7/32, 1/4, 5/16, 11/32, 3/8, 13/32, 7/16, 1/2, 17/32, 9/16, 5/8, 21/32, 11/16, 3/4, 25/32, 13/16, 27/32, 7/8, 15/16, 31/32, 1
Total runout less than 15 micron (0.00059") at 4×d position on these precise ER40 collets
Designed for use with cylindrical shank tools, not flats
The full length of the cutting tool should be placed in the collet
Made from 65Mn Alloy spring steel , vacuum annealing and hardened to HRC 42-45
Each collet gone through thermal aging process to eliminante grinding residual stress and long cryogenic treatment to improce wear resistance
Full set covers all collet sizes from 0.125" - 1" ( 1/8" - 1")
Comes in a aluminum plastic collet box
Box dimensions are 11.41" x 8.27" x 3.15" tall (with lid closed)
