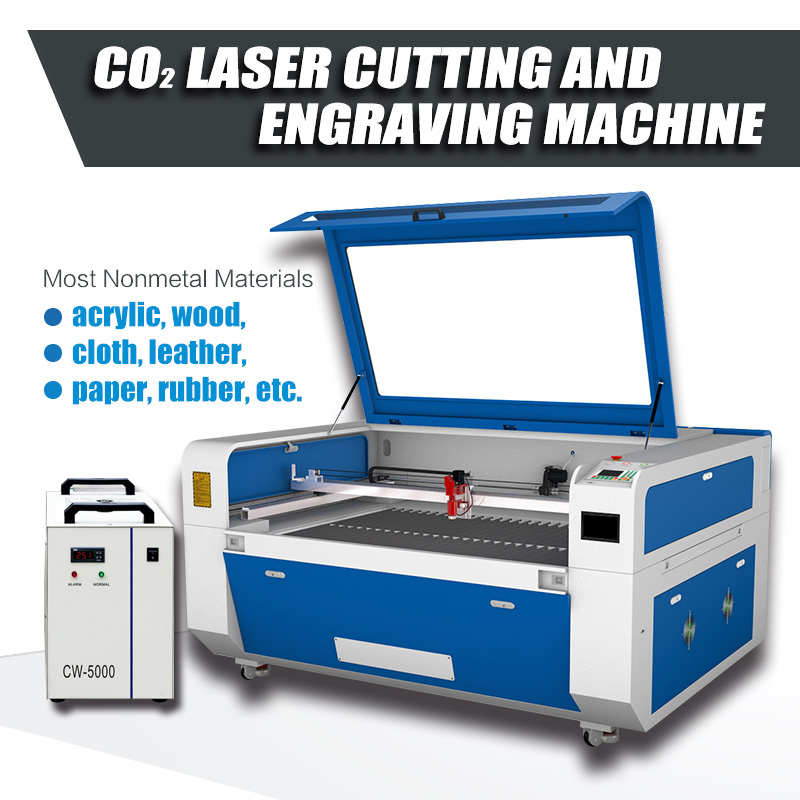

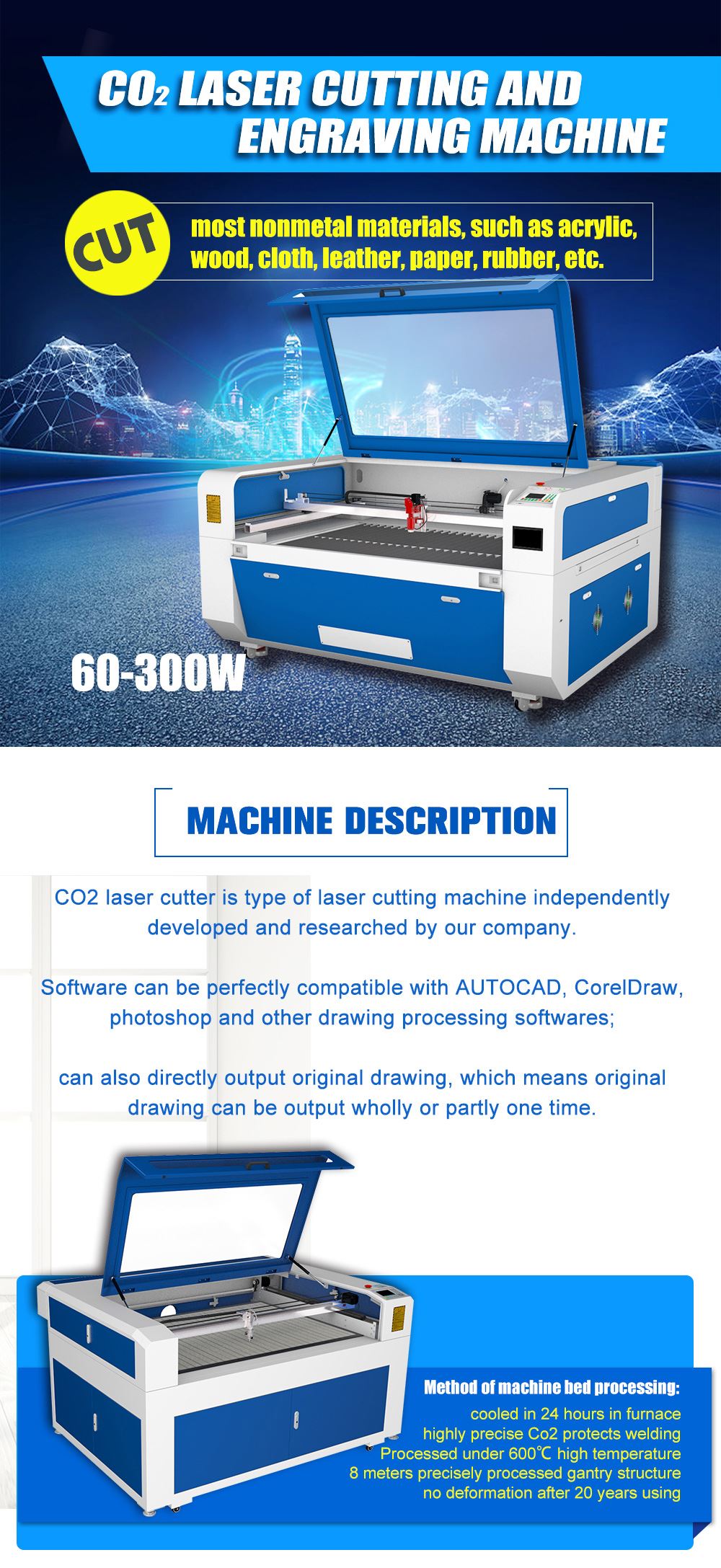

FDA Reci W4 Co2 Laser Engraver Cutter Machine with S&A Water Chiller
from
$6,800.00
Ex Tax: $6,800.00
- Stock: In Stock
- Model: SCJ004059
- SKU: SCJ004059
Products Sold: 0
Product Views: 187
Ask a Question About This Product

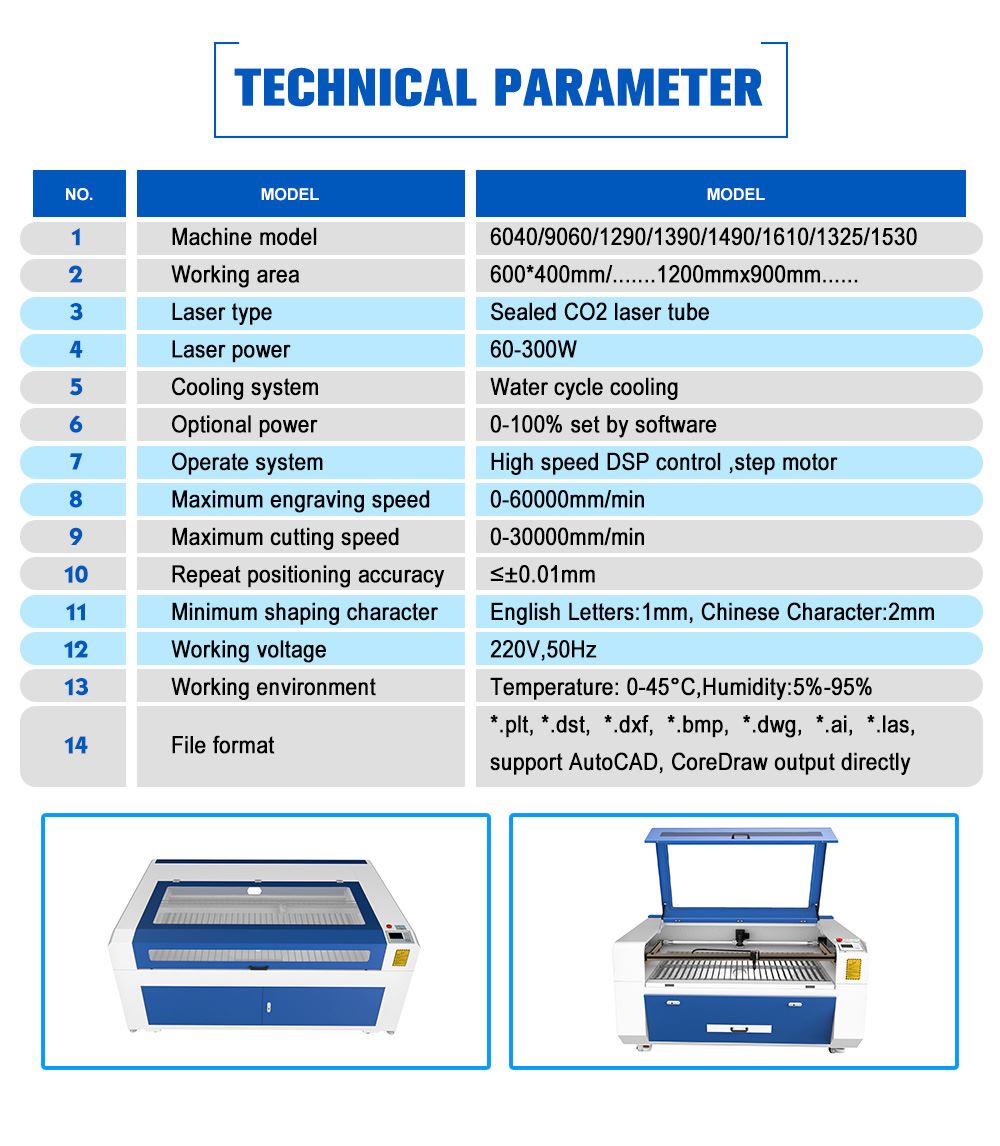

- Specifications
attribute-list | |
Peak Power | 117W |
Agreement Laser Power | 100W |
Laser Type | Sealed Reci CO2 Laser Tube.Service time over 15000 working hours. |
Repeat Positioning Accuracy | ±0.01mm |
Engraving Area | 1300*900mm(51.2" x35.4") |
Max. Cutting Speed: | 0-50000mm/min |
Optional Power | 0-100% set by software |
Cooling System | Water Cycle CoolingS&A Water Chiller CW5000 Equipped |
Min.Shaping Character | English Letter:1mm |
Working Environment | Temperature:0-45℃,Humidity:5%-95% |
Ruida Control System | DSP,Connected to USB. Focusing Lens&Mirrors: American Ⅱ Ⅳ and Singapore Wavelength.YAKO High accuracy Stepper Motor&Driver.Linear guide rail from Taiwan |
Max. ENGRAVING SPEED | 0-60000mm/min |
Working Voltage | 110V |
Graphic format supported | bmp./hpgl.(plt.)/jpeg./dxf./ai./dst.//dwg./ai./las. Support AutoCAD, CoreDraw Output Directly. |
- Description
About this product
1 . Laser Type :Sealed Reci CO2 Laser Tube.Service time over 1500~8000 working hours
2 . Engraving Area: 51.2" x35.4"
3 . Peak Power:117W; Agreement Laser Power:100W
4 . Max. Engraving Speed : 0-60000mm/min
5 . Max. Cutting Speed : 0-50000mm/min
CO2 Laser Engraver Cutter Machine Advantages
- Ample Working Space---The opening at the back of the machine is designed to execute a wide range of laser projects.
- Multiple graphic formats
- Ruida Control System---DSP,Connected to USB.Support online/offline working, English language system, adjustable cutting speed and power.
- Equipped with a DSP control system for CorelDraw/AutoCAD and other advanced software. Original drawing can be output directly.
- Compatible with Win 7, Win 8, Win 10, Vista, XP and Win 2000. NOT compatible with IOS system.
- Pure Circulating Water-cooled by S&A Water Chiller.
- Operation Panel---The intuitive Ruida controller features a digital LCD display.
130W Reci W4 WCo2 Laser Tube Engraver Cutter Machine with CW5000 S&A Water Chiller Laser Engraving Machine Cutting 1300x 900mm( 51.2" x35.4")
- Parameter---Peak Power:117W;Agreement Laser Power:100W; Engraving Area: 1300*900mm; Max. Engraving Speed:0-60000mm/min. Max. Cutting Speed: 0-50000mm/min. Repeat Positioning Accuracy: ±0.01mm Worktable:Blade 1300*900mm

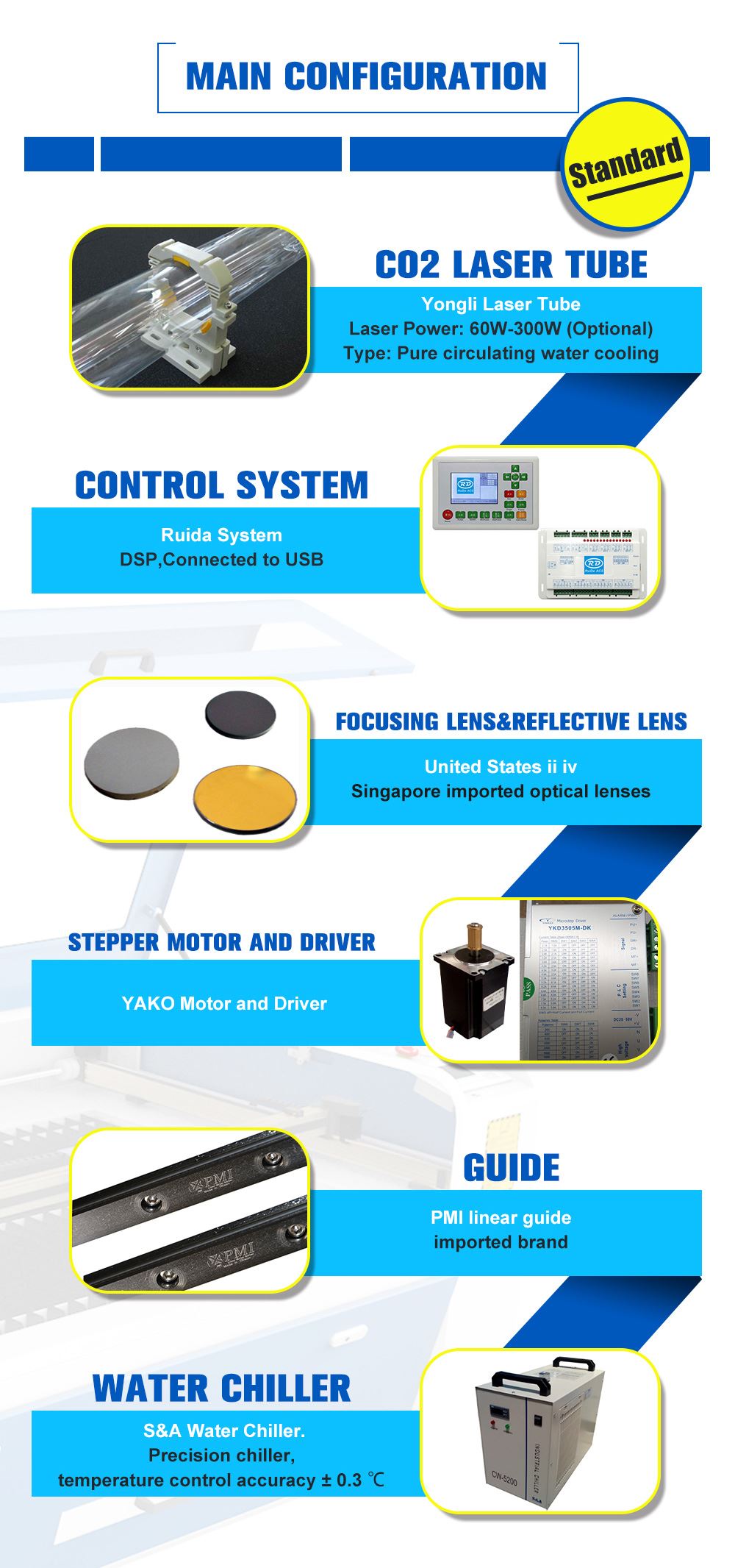

- Configuration---Laser Type:Reci CO2 Laser Tube. Pure Circulating Water-cooled.(S&A Water Chiller CW5000 Equipped). Ruida Control System:DSP,Connected to USB. Focusing Lens&Mirrors: American Ⅱ Ⅳ and Singapore Wavelength. YAKO High accuracy Stepper Motor&Driver.Linear guide rail from China
- Software---Graphic format supported:bmp./hpgl.(plt.)/jpeg./dxf./ai./dst.//dwg./ai./las. Support AutoCAD, CoreDraw Output Directly.USB control system (enables the machine works without connecting to a computer).
- Applicable Materials---Wood products, paper, plastic, rubber, acrylic, bamboo, marble, double-color sheets, glass, wine bottles, resin, ABS, lamp shade and other non-metal materials
