Signal Generator DIY Kit with ICL8038 High-Speed Op Amp Adjustable Frequency 5Hz-400KHz Duty Cycle 2-95% High Low Distortion Sine Wave

Signal Generator DIY Kit with ICL8038 High-Speed Op Amp Adjustable Frequency 5Hz-400KHz Duty Cycle 2-95% High Low Distortion Sine Wave

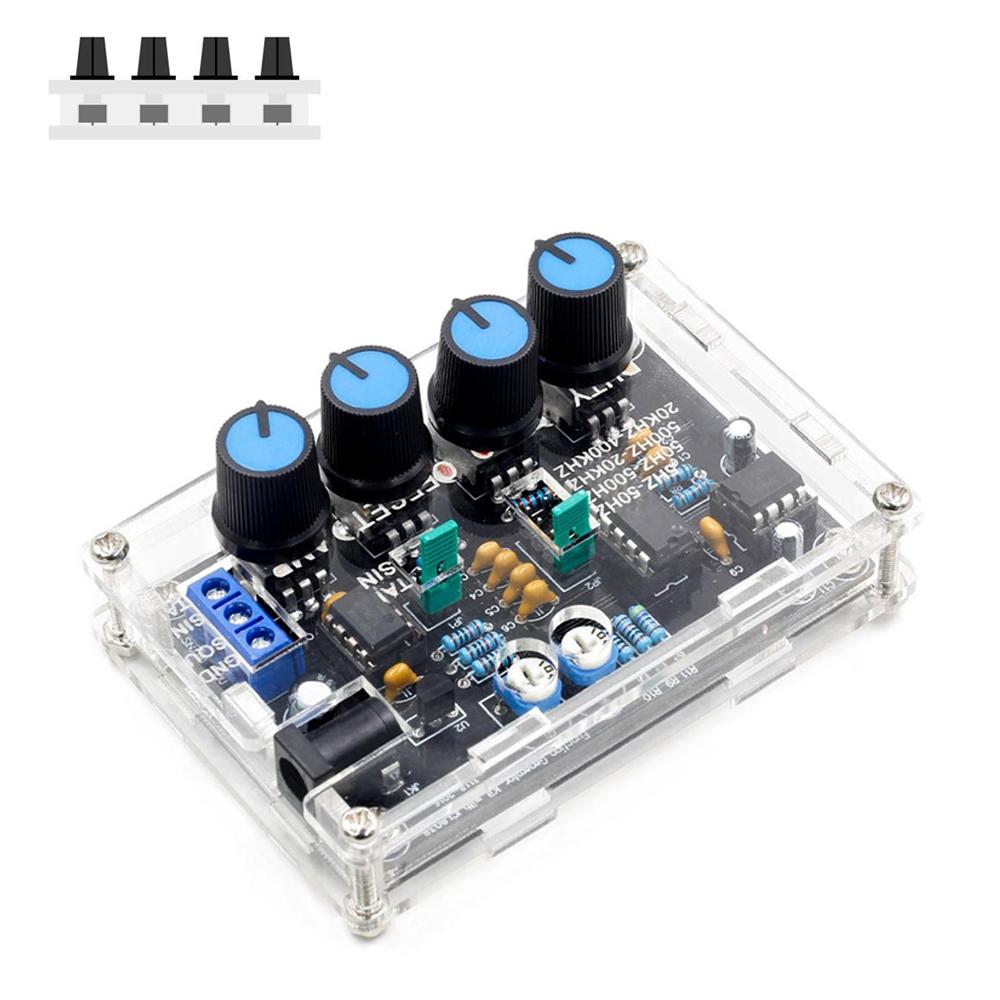

This signal generator DIY kit is professional product to generate sine/triangle/square/forward and reverse sawtooth wave. It's a DIY kit for you to weld and install.


Features:

Uses ICL8038 and a high-speed op amp, higher accuracy.

Can output sine/triangle/square/forward and reverse sawtooth waveforms.

Frequency Range: 5Hz~400kHz; Duty Cycle Range: 2~95%(Adjustable)

Supports dual power amplifier without blocking the capacitor to ensure high and low-frequency signal distortion.

Adjustable frequency and amplitude.

Frequency adjustment features coarse tuning and fine tuning.

All are through hole components, easy to install.


Specifications:

Material: FR4 + Acrylic

Supply Voltage: 12V~15V

Frequency Range: 5Hz~400KHz(Adjustable)

Duty Cycle Range: 2~95%(Adjustable)

Low Distortion Sine Wave: 1%

Low Temperature Drift: 50ppm / °C

Output Triangular Wave Linearity: 0.1%

DC Bias Range: -7.5V~7.5V

Output Amplitude Range: 0.1V~11VPP(operating voltage 12V)

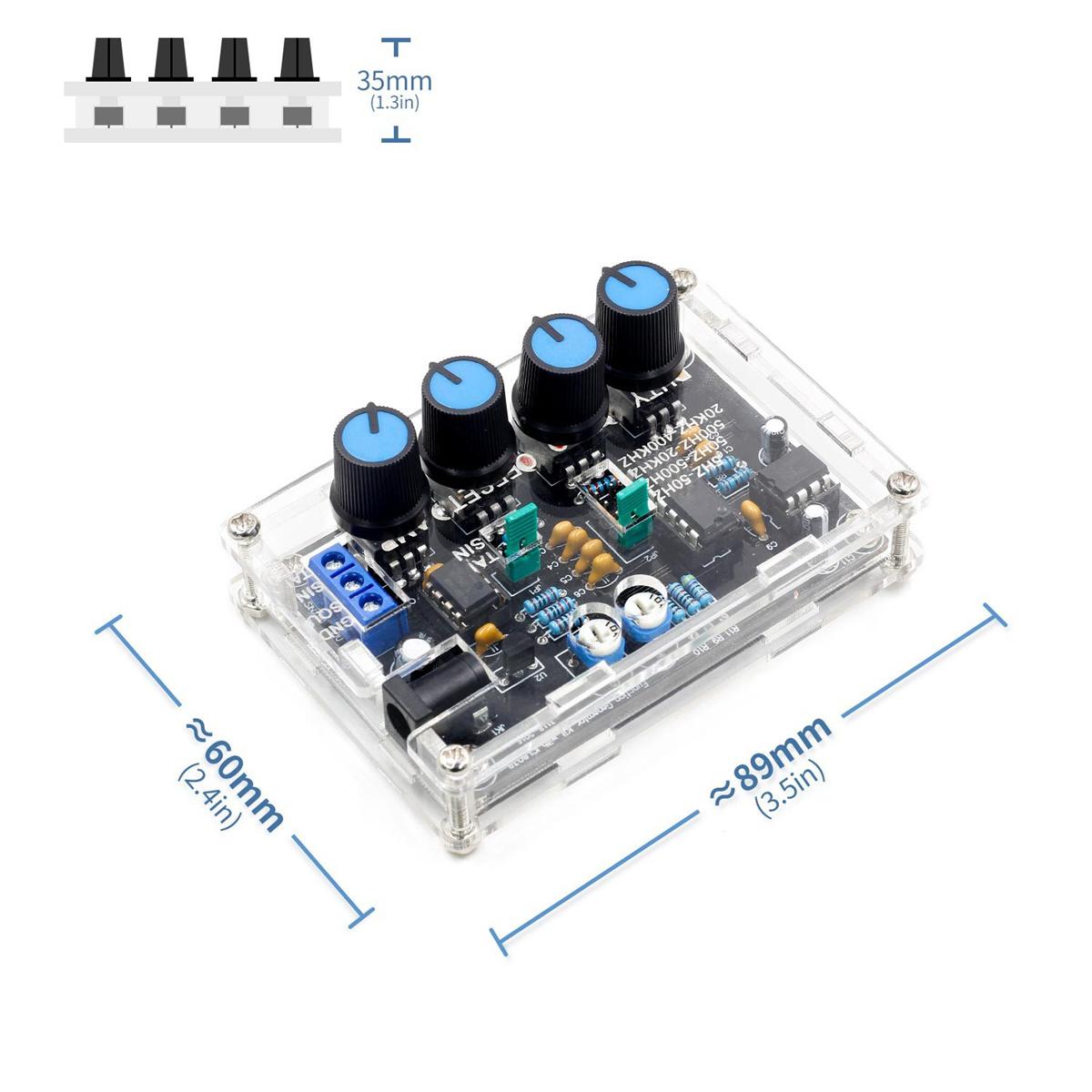

Board Size: Approx. 7.8 * 5cm / 3.07 * 1.97in

Finished Product Size: Approx. 8.7 * 6 * 1.7cm / 3.43 * 2.36 * 0.67in

Product Weight: 81g / 2.86oz

Package Size: Approx. 11 * 7 * 3cm / 4.33 * 2.76 * 1.18in

Package Weight: 95g / 3.35oz


Note:

The testing picture is just for reference, please in kind prevail!

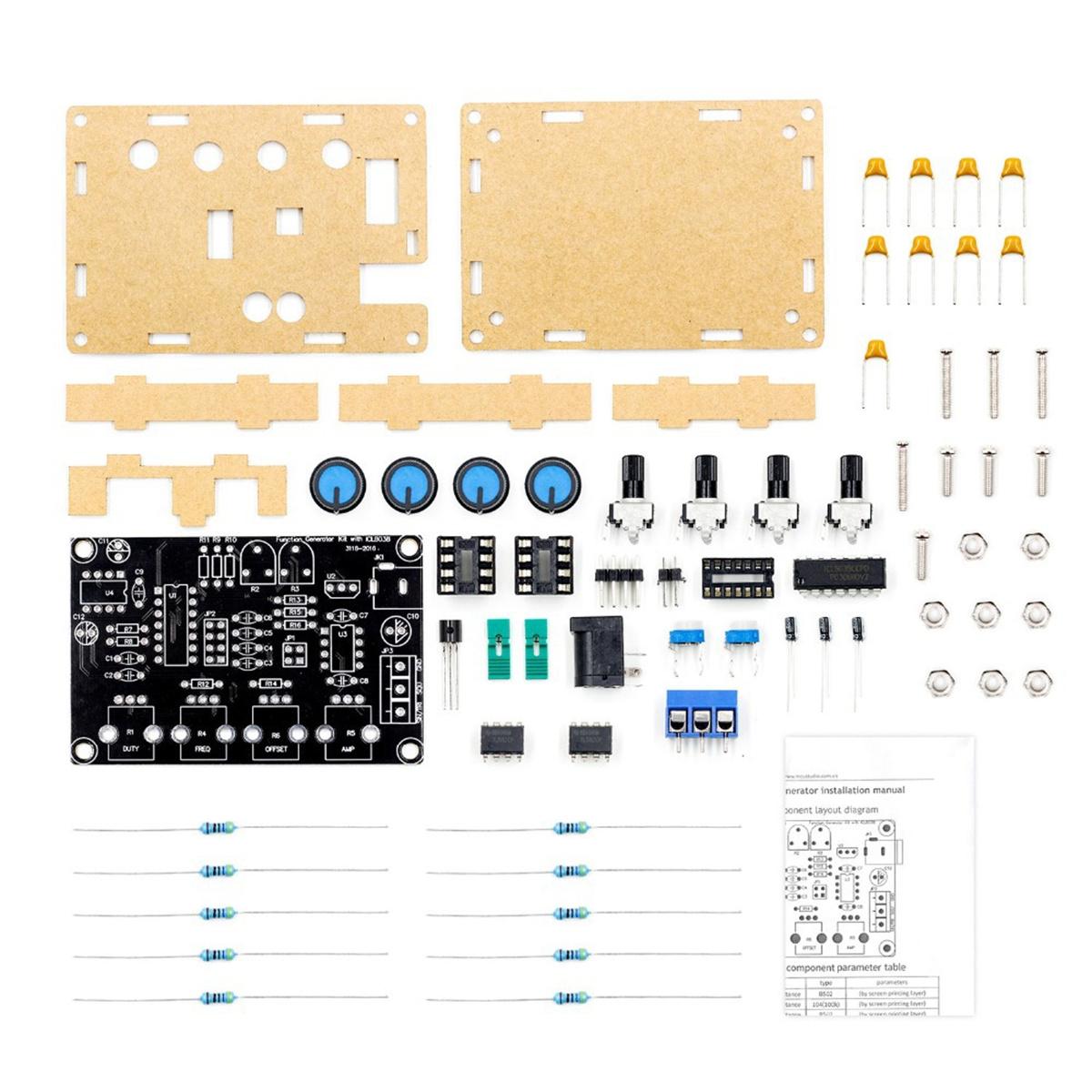

Package included:

1 x Signal Generator DIY Kit

1 x User Manual(English)
