Specifications

Other attributes
Condition	New
Place of Origin	Guangdong, China
Weight (KG)	230
warranty:	1 Year
Key Selling Points	Long Service Life
Use	Sheet
Showroom Location	India, Malaysia
Applicable Industries:	Manufacturing Plant, Other
Marketing Type	Hot Product 2019
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	PLC, Motor
Power	Optional
OEM/ODM	Yes
Feeder motor	NC Servo Feeder
Voltage	380V or Optional
Dimension(LWH)	Customization
After-sales Service Provided	Video technical support, Online support
Factory Engineer	more than 100 people
Type	Feeder Machine
Function	Feed metal strip to press machine
Control system	PLC(imported Brand)
Material	Stainless Steel
Color	White
Certificate:	CE SIO
Packaging and delivery
Packaging Details	Can provide wooden box, or plastic film package
Port	SHENZHEN
Supply Ability
Supply Ability	30 Set/Sets per Month

Description

MAIN FEATURES

● High precision feeding: Aiming at the arrival of hi-tech industry, it is controlled by computer closed-circuit feedback system. So that the precision can maintain within +/-0.03mm.

● Phase-style feeding function: It can input 20 sets of different feeding length, each group provides punching for 999 times to satisfy the processing and production of special products (option)

● Manual model: It can input 3 phases manual speed, which can let used operate more easily and feed materials more accuracy.

● High efficiency release device: It can set up release angle quickly, only match cam signal of and adjusted feed thickness can done.

● Feeding length setting: Input feed length on the controller panel directly.

● Feeding unit: The roll adopts middle-hollow style. Being light and with low inertia for electroplate. The surface hardness HRC is 58 and hard chrome plated.

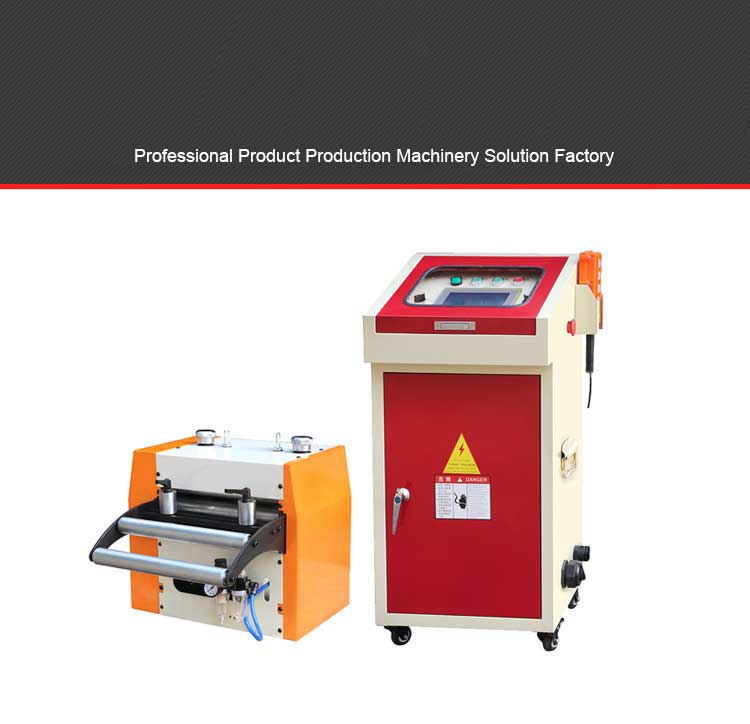

Feed Steel Sheet Coil Servo Feeder Coil Steel Stamping NC Servo Feeder

Thin Board Model

MODEL	NC-200	NC-300	NC-400	NC-500
Feed Width	0～200mm	0～300mm	0～400mm	0～500mm
Applicable Material Thickness	0.2～2.5mm	0.2～2.5mm	0.2～2.5mm	0.2～2.5mm
Feed Length	0～9999.99mm	0～9999.99mm	0～9999.99mm	0～9999.99mm
Feeding Speed	20m/min	20m/min	20m/min	20m/min
Way to Relax	Pneumatic relaxation	Pneumatic relaxation	Pneumatic relaxation	Pneumatic relaxation
Product Packaging	Thickened wooden box	Thickened wooden box	Thickened wooden box	Thickened wooden box

Thick Board Model

MODEL	NC-200A	NC-300A	NC-400A	NC-500A
Feed Width	0～200mm	0～300mm	0～400mm	0～500mm
Applicable Material Thickness	0.3～4.5mm	0.3～4.5mm	0.3～4.5mm	0.3～4.5mm
Feed Length	0～9999.99mm	0～9999.99mm	0～9999.99mm	0～9999.99mm
Feeding Speed	20m/min	20m/min	20m/min	20m/min
Way to Relax	Pneumatic relaxation	Pneumatic relaxation	Pneumatic relaxation	Pneumatic relaxation
Product Packaging	Thickened wooden box	Thickened wooden box	Thickened wooden box	Thickened wooden box
