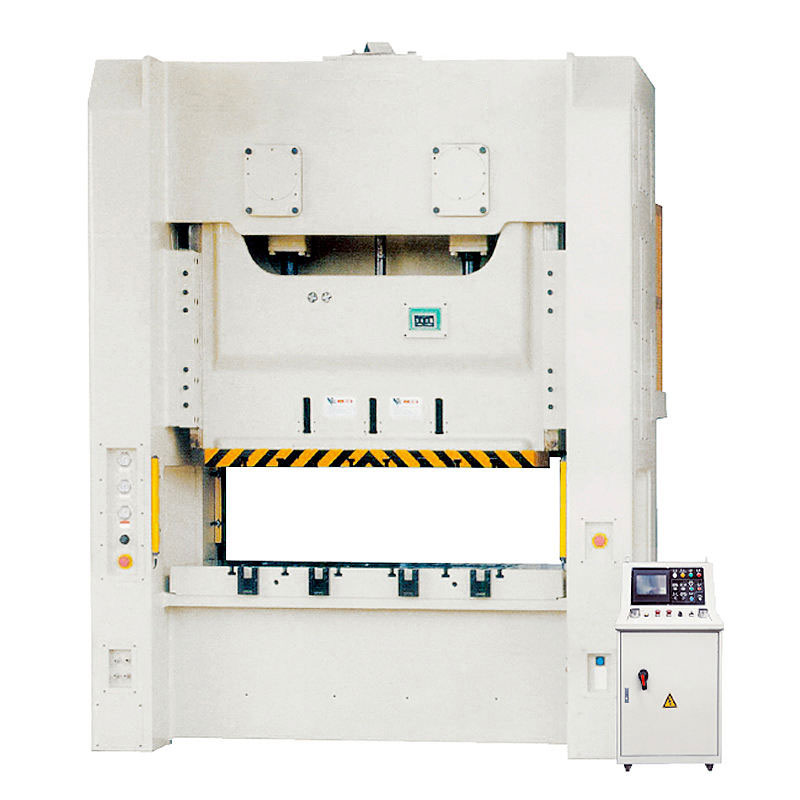

Frame Double Crank Power Press Machine 250 Ton Two Point H Punch Forming Punching Machine Pneumatic 300 Ton Power Press
from
$45,000.00
Ex Tax: $45,000.00
10 or more $35,000.00
- Stock: In Stock
- Model: SCJ006683
- SKU: SCJ006683
Products Sold: 0
Product Views: 130
Ask a Question About This Product
- Description
Product Description
Features
- With High rigidity rack design, they are welded with the use of high-quality steel plates, through relieving of internal stresses,sothat stability and reliability and
reliability of the whole machine in precision are enhanced. - Consistent driving center and machine center to guarantee accurate and stable punching.
- In order to guarantee relative stationarity of machine operation, it is necessary to balance twobalancers.
- Moulding-adjustment precision is as high as 0.1mm, safe,speedy ,and reliable.
- Through hard oxidation and grinding ,such parts as bent axles,gear sets,and connecting rods possesss higher combination property and tolerance.
- Adopt highly sensitive and reliable clutch/brake and internationally top duplex,to guarantee precision and safety for operation and stop of press rams.
- Machine's structural design shall be reasonable,for the convenience of realizing automatic production,reducing cost,and improving efficiency.
- Possess advanced design concepts, low noise, low consumption,and energy saving.
Specification
| Name | APE-160 | APE-200 | APE-250 | APE-300 | APE-400 | APE-500 | APE-600 | |||||||
| Model | S type | H type | S type | H type | S type | H type | S type | H type | S type | H type | S type | H type | S type | H type |
| Capacity(Ton) | 160 | 200 | 250 | 300 | 400 | 500 | 600 | |||||||
| Rated tonnage point(mm) | 6 | 3 | 6 | 3 | 7 | 3 | 7 | 3 | 7 | 3 | 10 | 6 | 10 | 6 |
| Stroke(mm) | 180 | 130 | 250 | 150 | 280 | 170 | 300 | 170 | 300 | 170 | 300 | 180 | 300 | 180 |
| Die height(mm) | 450 | 400 | 500 | 400 | 550 | 450 | 550 | 450 | 550 | 450 | 580 | 480 | 600 | 500 |
| Stroke per minute(S.P.M) | 35-55 | 40-85 | 20-50 | 35-70 | 30-60 | 20-35 | 20-35 | 30-50 | 20-30 | 20-40 | 18-25 | 20-30 | 15-25 | 20-30 |
| Slide adjustment(mm) | 100 | 120 | 120 | 120 | 120 | 120 | 120 | |||||||
| Slide area(mm) | 1600x650 | 1850x750 | 2100x900 | 2100x900 | 2800x1000 | 2900x1000 | 3100x1100 | |||||||
| Bolster area(mm) | 1800x760 | 2200x940 | 2500x1000 | 2500x1000 | 3200x1000 | 3300x1200 | 3500x1200 | |||||||
| Slide opening(mm) | 700x450 | 900x600 | 900X600 | 900X600 | 900x600 | 1000x750 | 1100x750 | |||||||
| Main motor(Kw.p) | 15x4 | 18.5x4 | 22x4 | 30x4 | 37x4 | 45x4 | 55x4 | |||||||
| Slide ajust device(Kw.p) | 1x4 | 2x5 | 2x4 | 2x4 | 2x4 | 3x4 | 3x4 | |||||||
| Air pressure(Kg/cm2) | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |||||||
| Presses precision | GB(JIS)1class | |||||||||||||
