CNC Turning Machine Horizontal - Linear Guideway

Buy Now

Specifications

Industry-specific attributes
Type	VERTICAL
Max. Length of Workpiece (mm)	250
Other attributes
Condition	New
Machining Capacity	Light Duty
CNC or Not	CNC
Spindle Bore(mm)	25
Place of Origin	Zhejiang, China
Spindle Motor Power(kW)	2.2
Weight (KG)	750
Number of Axes	2
Key Selling Points	High-accuracy
Travel (X Axis)(mm)	250 mm
Showroom Location	None
Travel (Z Axis)(mm)	250 mm
Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Marketing Type	Hot Product 2019
Tool Post Stations	4
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Core Components	Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, enquiry us
Model Number	GS-0625
Voltage	380v
Dimension(LWH)	120011001620mm
Max. Spindle Speed (r.p.m)	5000 r.p.m
Max. Weight of Workpiece(kg)	100
Name	High Precision CNC Lathe Machine
Width of bed (mm)	120 mm
No. of Spindles	12
Precision	0.003mm
Machine Type	Lathe Machine CNC
Positioning Accuracy (mm)	±0.003
Repeatability (X/Y/Z) (mm)	±0.003
Color	Customers' Requirement
Power(W)	2.2KW
Spindle Speed	1-5000
Max. Swing Diameter	250mm
Maximum workpiece length	250mm
Chuck	Manual 3 Jaw Chuck
Packaging and delivery
Packaging Details	one wooden box for cnc lathe
Port	ningbo
attribute-list
Supply Ability	500 Set/Sets per Month

Video

Description

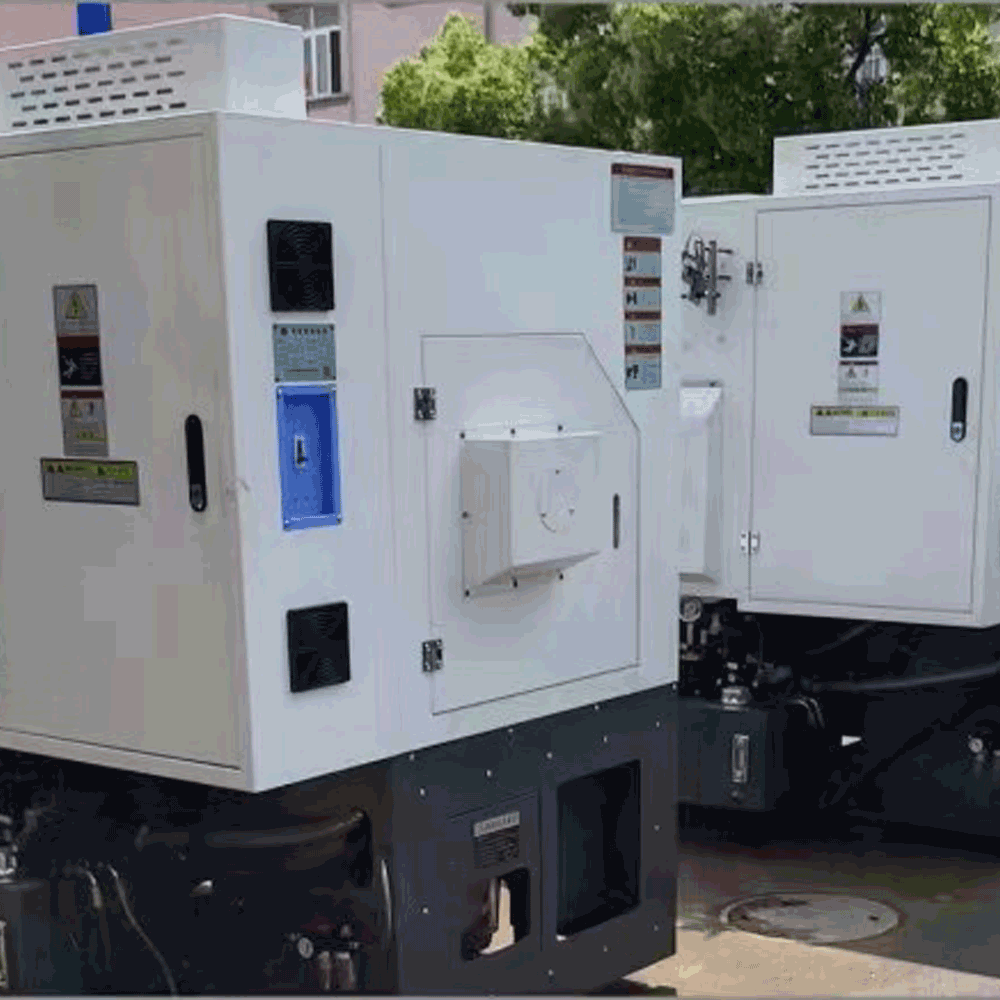

CNC Turning Machine - GS-0625 - Horizontal - Gang Type - Linear Guideway - Slant Bed

Product Description

item	value
No. of Spindles	12
Number of Axes	2
Travel (X Axis)(mm)	250mm
Travel (Z Axis)(mm)	250mm
Positioning Accuracy (mm)	±0.003
Repeatability (X/Y/Z) (mm)	±0.003
Dimension(LWH)	120011001620mm
Model Number	GS-0625
Voltage	380v
Tool Post Stations	4
Weight (KG)	750

GS-0625 Horizontal CNC Turning Machine Gang Type Linear Guideway Slant Bed High Speed
