H3 CNC Tool Grinding Machine Grinding Machines for Cutting Tools Step for Small And Medium Tool Diameters Factory
from
$106,660.00
Ex Tax: $106,660.00
5 or more $105,660.00
10 or more $104,660.00
- Stock: In Stock
- Model: SCJ007287
- SKU: SCJ007287
Products Sold: 0
Product Views: 135
Ask a Question About This Product
- Description
Product Description

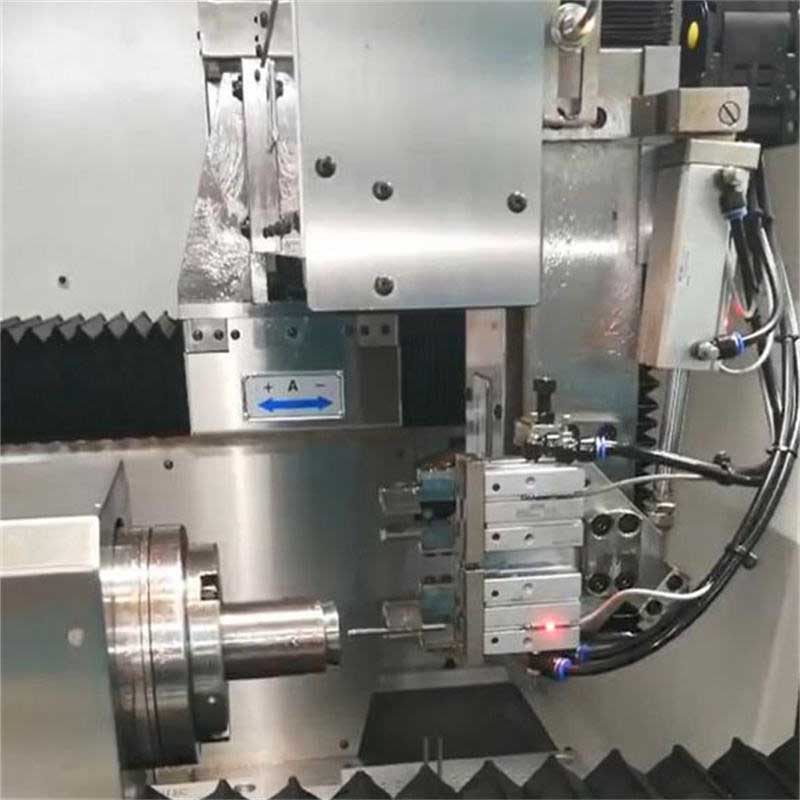

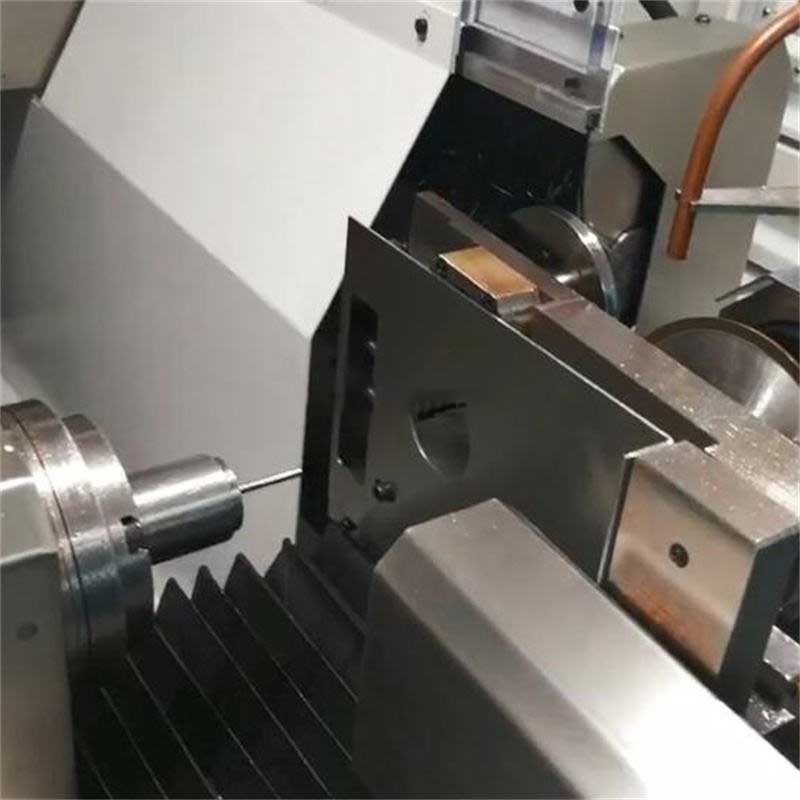

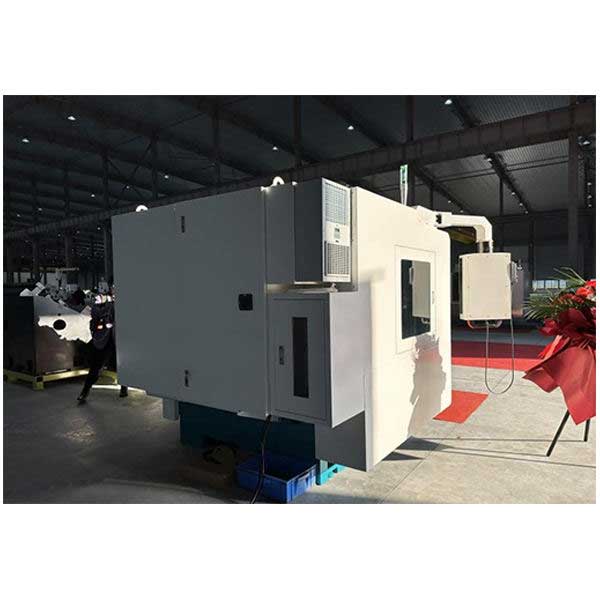

ANTISHICNC H3 CNC Tool Grinding Machine Grinding Machines for Cutting Tools Step for Small And Medium Tool Diameters Factory
1.The body and components are made of mihanna high-grade cast iron fc-30, which is subjected to manual normalization heat treatment and natural aging treatment. The component processing adopts world-class equipment such as yasda, Mitsui, Seiki, Toshiba and ELB for one-time clamping and processing, and the precision size can reach micron level, so as to ensure the high precision of equipment foundation components.
2.The structure of walking center grinder, which is the first in China, makes the grinding wheel processing get rid of the problems of small grinding amount and low efficiency from the cylindrical surface. Taking the end face as the initial surface of rough machining has the advantages of large machining volume and high machining efficiency. At the same time, it has more advantages for workpieces with small diameter segment difference.The first wandering type grinder structure in China (this grinder breaks the traditional grinding method and pushes the traditional grinding method to another height)
3.The Chinese secondary development highly automatic grinding system jointly developed by our company is adopted, which can move freely and rearrange buttons and icons. The creative interface of multi-step and complex segment difference workpieces can be realized without programming. The interactive touch screen technology with excellent performance can easily realize more advanced gesture instructions
4.The operator can quickly arrange and combine the graphics according to the defined shape diagrams and the shape of the workpiece, and input relevant parameters to complete the programmed machining graphics.
5.The precision linear guide rail and precision ball screw are continuously lubricated by the automatic lubrication system to ensure longer service life and long-term optimal accuracy. The cooling and lubrication systems are separated from the body to eliminate vibration and facilitate heat dissipation.
6.The high-precision motorized spindle is selected as the grinding wheel spindle. The spindle is kept constant temperature through internal oil cooling, and a speed regulating device is installed. The maximum speed of the grinding wheel can reach 90m / s. for workpieces with different diameters, the processing is convenient and fast to ensure efficiency.
ANTISHICNC H3 CNC Tool Grinding Machine Grinding Machines for Cutting Tools Step for Small And Medium Tool Diameters Factory Standard Parts
ITEM | Place of Origin | Brand/Model |
CNC control system | Australia | ANCA (7 axis)(Secondary development by us) |
X / Z axis feed servo motor | Australia | ANCA |
X / Z axis ball screw | Taiwan | PMI |
collect and clamping head | China Mainland | SHI JIN |
Rough grinding spindle | China Mainland | HAO ZHI |
Fine grinding spindle | China Mainland | HAO ZHI |
Manipulator servo | Australia | ANCA |
End face positioning device | Japan | KEYENCE |
Full automatic oiler | Taiwan,China | Proton |
Coupling | China Mainland | Hong Jun |
Water pump drive motor | Taiwan,China | Proton |
Switch button / contactor | France | Schneider |
Oil circuit components | China Mainland | MUHAO |
Bearing | Germany/Japan | FAG/NSK |
LED work light | China Mainland | ONN |
Cooling water tank | China Mainland | ANTISHICNC |
Foundation cushion block | China Mainland | ANTISHICNC |
ANTISHICNC H3 CNC Universal Tool Grinder Carbide PCD PCBN Tool Grinder for Drilling and Milling Tools Step Grinding Machine Requirement
Voltage | 380V |
Total installed power | 20KW/33KW |
Operating environment temperature | 5-40℃ |
Grinding fluid filtration method | Comprehensive filtration |
Cooling water pump | 0.25KW |
Cooling water tank | 450L |
