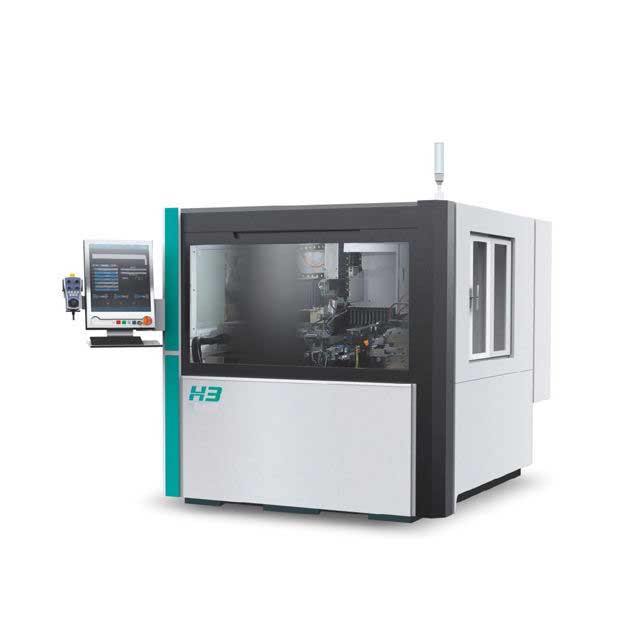

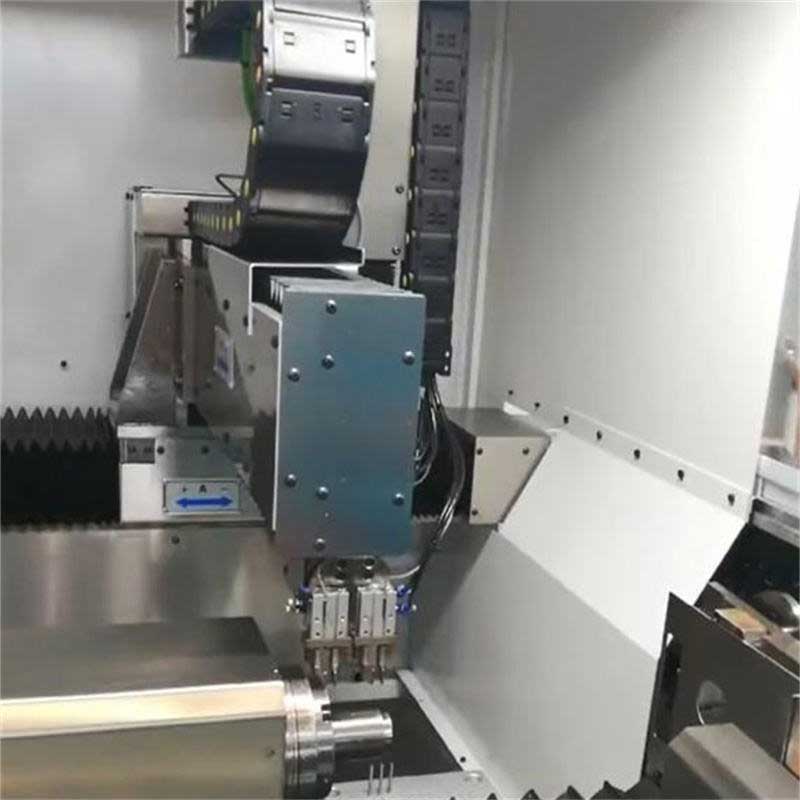

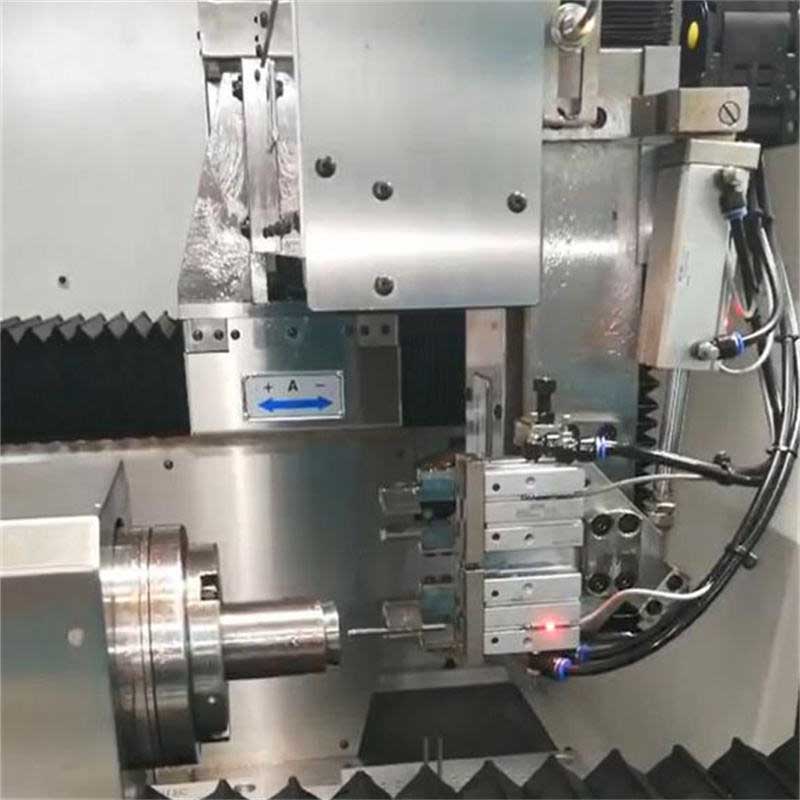

H3 CNC Universal Tool Grinder Carbide PCD PCBN Tool Grinder for Drilling and Milling Tools Step Grinding Machine

H3 CNC Universal Tool Grinder Carbide PCD PCBN Tool Grinder for Drilling and Milling Tools Step Grinding Machine
H3 CNC Universal Tool Grinder Carbide PCD PCBN Tool Grinder for Drilling and Milling Tools Step Grinding Machine
H3 CNC Universal Tool Grinder Carbide PCD PCBN Tool Grinder for Drilling and Milling Tools Step Grinding Machine
H3 CNC Universal Tool Grinder Carbide PCD PCBN Tool Grinder for Drilling and Milling Tools Step Grinding Machine
H3 CNC Universal Tool Grinder Carbide PCD PCBN Tool Grinder for Drilling and Milling Tools Step Grinding Machine
H3 CNC Universal Tool Grinder Carbide PCD PCBN Tool Grinder for Drilling and Milling Tools Step Grinding Machine
H3 CNC Universal Tool Grinder Carbide PCD PCBN Tool Grinder for Drilling and Milling Tools Step Grinding Machine
H3 CNC Universal Tool Grinder Carbide PCD PCBN Tool Grinder for Drilling and Milling Tools Step Grinding Machine
H3 CNC Universal Tool Grinder Carbide PCD PCBN Tool Grinder for Drilling and Milling Tools Step Grinding Machine
H3 CNC Universal Tool Grinder Carbide PCD PCBN Tool Grinder for Drilling and Milling Tools Step Grinding Machine
H3 CNC Universal Tool Grinder Carbide PCD PCBN Tool Grinder for Drilling and Milling Tools Step Grinding Machine
H3 CNC Universal Tool Grinder Carbide PCD PCBN Tool Grinder for Drilling and Milling Tools Step Grinding Machine
H3 CNC Universal Tool Grinder Carbide PCD PCBN Tool Grinder for Drilling and Milling Tools Step Grinding Machine
from
$93,300.00
Ex Tax: $93,300.00
5 or more $92,300.00
10 or more $89,990.00
  • Stock: In Stock
  • Model: SCJ007278
  • SKU: SCJ007278
Products Sold: 0
Product Views: 152

Available Options

  • Specifications
Other attributes
ConditionNew
CNC or NotCNC
Place of OriginShanghai, China
Weight (KG)5000
warranty:1 Year
Key Selling PointsCNC Step Tool Grinding Machine
Showroom LocationNone
Applicable Industries:Manufacturing Plant, Construction worksxa0, Energy & Mining, Machinery Repair Shops, Building Material Shops
Marketing TypeNew Product 2023
Machinery Test ReportProvided
Video outgoing-inspectionProvided
Warranty of core components1 Year
Wheel Size(mm)250*20*31.75
Core ComponentsMotor, Bearing, Engine, Other
VoltageAC 380V
Clamping workpiece diameter range0.5-20mm
Dimension(L*W*H)2450*1980*2000mm
Grinding workpiece diameter range0.05-20mm
Power (kW)8.5/20
After-sales Service ProvidedYes
Clamping/grinding workpiece Max. length300/200mm
PackingFactory Standard
Year2023
Rough grinding wheel size250*20*31.75mm
Rough grinding wheel speed0-8500 rpm (Motorized spindle)
Fine grinding wheel size150*20*31.75mm
TypeTool Grinding Machine
Fine grinding wheel speed0~12000 rpm (Motorized spindle)
PAYMENTT/T
Packaging and delivery
Packaging DetailsFactory ordinary packaging, please confirm with the ANTISHI for more details.
Supply Ability
Supply Ability300 Set/Sets per Month
  • Description
Product Description
ANTISHICNC H3 CNC Universal Tool Grinder Carbide PCD PCBN Tool Grinder for Drilling and Milling Tools Step Grinding Machine Features
1.The body and components are made of mihanna high-grade cast iron fc-30, which is subjected to manual normalization heat treatment and natural aging treatment. The component processing adopts world-class equipment such as yasda, Mitsui, Seiki, Toshiba and ELB for one-time clamping and processing, and the precision size can reach micron level, so as to ensure the high precision of equipment foundation components.
2.The structure of walking center grinder, which is the first in China, makes the grinding wheel processing get rid of the problems of small grinding amount and low efficiency from the cylindrical surface. Taking the end face as the initial surface of rough machining has the advantages of large machining volume and high machining efficiency. At the same time, it has more advantages for workpieces with small diameter segment difference.The first wandering type grinder structure in China (this grinder breaks the traditional grinding method and pushes the traditional grinding method to another height)
3.The Chinese secondary development highly automatic grinding system jointly developed by our company is adopted, which can move freely and rearrange buttons and icons. The creative interface of multi-step and complex segment difference workpieces can be realized without programming. The interactive touch screen technology with excellent performance can easily realize more advanced gesture instructions
4.The operator can quickly arrange and combine the graphics according to the defined shape diagrams and the shape of the workpiece, and input relevant parameters to complete the programmed machining graphics.
5.The precision linear guide rail and precision ball screw are continuously lubricated by the automatic lubrication system to ensure longer service life and long-term optimal accuracy. The cooling and lubrication systems are separated from the body to eliminate vibration and facilitate heat dissipation.
6.The high-precision motorized spindle is selected as the grinding wheel spindle. The spindle is kept constant temperature through internal oil cooling, and a speed regulating device is installed. The maximum speed of the grinding wheel can reach 90m / s. for workpieces with different diameters, the processing is convenient and fast to ensure efficiency.
ANTISHICNC H3 CNC Universal Tool Grinder Carbide PCD PCBN Tool Grinder for Drilling and Milling Tools Step Grinding Machine Standard Parts
ITEM
Place of Origin
Brand/Model
CNC control system
Australia
ANCA (7 axis)
X / Z axis feed servo motor
Australia
ANCA
X / Z axis ball screw
Japan
THK
collet and clamping head
Guangzhou
Hao Zhi
Rough grinding spindle
Guangzhou
DAKE
Fine grinding spindle
Guangzhou
DAKE
Manipulator servo
Australia
ANCA
End face positioning device
Japan
KEYENCE
Full automatic oiler
Taiwan,China
Proton
coupling
Taiwan,China
NBK
Wear resistant material
Germany
SKC
Water pump drive motor
Taiwan,China
Proton
Switch button / contactor
Japan
Japan FUJI
Belt
USA
GATES
Oil circuit components
Taiwan,China
Zhanghua Zhenrong
Bearing
Germany
FAG
LED work light
Shenzhen
ONN
Cooling water tank
Dongguan
ANTIS
Foundation cushion block
Dongguan
ANTIS
ANTISHICNC H3 CNC Universal Tool Grinder Carbide PCD PCBN Tool Grinder for Drilling and Milling Tools Step Grinding Machine Requirement
Voltage
380V
Total installed power
20KW/33KW
Operating environment temperature
5-40℃
Grinding fluid filtration method
Comprehensive filtration
Cooling water pump
0.25KW
Cooling water tank
450L

H3 CNC Universal Tool Grinder Carbide PCD PCBN Tool Grinder for Drilling and Milling Tools Step Grinding Machine

H3 CNC Universal Tool Grinder Carbide PCD PCBN Tool Grinder for Drilling and Milling Tools Step Grinding Machine

H3 CNC Universal Tool Grinder Carbide PCD PCBN Tool Grinder for Drilling and Milling Tools Step Grinding Machine
