High Precision 1 inch ~ 3/4 inch Series Round 5C Collet 0.0006 inch TIR Hardened

High Precision 1 inch ~ 3/4 inch Series Round 5C Collet 0.0006 inch TIR Hardened
High Precision 1 inch ~ 3/4 inch Series Round 5C Collet 0.0006 inch TIR Hardened
High Precision 1 inch ~ 3/4 inch Series Round 5C Collet 0.0006 inch TIR Hardened
High Precision 1 inch ~ 3/4 inch Series Round 5C Collet 0.0006 inch TIR Hardened
High Precision 1 inch ~ 3/4 inch Series Round 5C Collet 0.0006 inch TIR Hardened
High Precision 1 inch ~ 3/4 inch Series Round 5C Collet 0.0006 inch TIR Hardened
High Precision 1 inch ~ 3/4 inch Series Round 5C Collet 0.0006 inch TIR Hardened
from
$4.38
Ex Tax: $4.38
  • Stock: In Stock
  • Model: SCJ006019
  • SKU: SCJ006019
Products Sold: 0
Product Views: 299

Available Options

  • Specifications
attribute-list
Collet Category5C Collets
Collet StyleRound
TIR (INCH)0.0006"
Collet Material65Mn

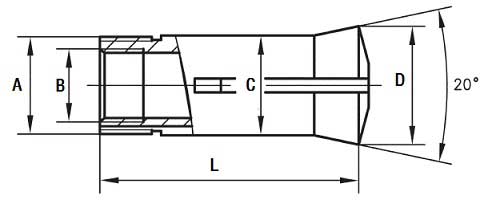

Drawbar Thread Size (B)1.041-24
Overall Length (L)3.28" (83.3mm)
External Thread Size (A)1.242-20
Dia. (C)1.25" (31.75mm)
Dia. (D)1.469" (37.3mm)
  • Description
About this product

1. Collet style: 5C Round

2. Material: 65Mn

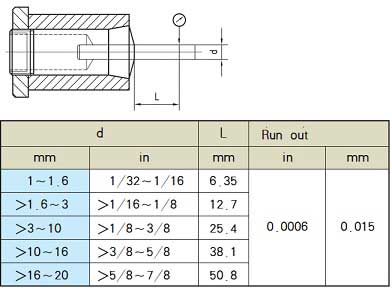

3. T.I.R.: 0.0006"

4. Widely used on lathe machine with 5C spindle and fixtures 5C hole

High Precision 1 inch ~ 3/4 inch Series Round 5C Collet 0.0006 inch TIR Hardened

High Precision 1 inch ~ 3/4 inch Series Round 5C Collet 0.0006 inch TIR Hardened

⒈ Material: 65Mn.
⒉ Hardness: clamping part HRC 55~60 elastic part HRC 40~45

⒊ This unit is applicable to all sorts of lathes, which spindle taper hole is 5C, such as automatic lathes, CNC lathes etc.
