High Precision 49 x 36 In 150W CO2 Laser Cutter Engraver Servo Motor
from
$9,600.00
Ex Tax: $9,600.00
- Stock: In Stock
- Model: SCJ004085
- SKU: SCJ004085
Products Sold: 0
Product Views: 183
Ask a Question About This Product
- Specifications
attribute-list | |
Model | MC-1250 |
Laser Power | 150W CO² |
Worktable dimension | 49" x 36" |
COOLING TYPE | Water Cooling |
Workbtable load | 330 lbs |
Cutting ability (Acrylic) | 1-3/16 inch |
Speed of positioning(X,Y) | 65.6 ft/min |
Positioning accuracy (X,Y) | ±0.002"/39.4" |
Gross power | ≤ 1500W |
Operating Temperature | 32℉-104℉ |
Repeatability accuracy | ±0.002" |
Data Transfer Interface | USB 2.0 |
Initial current | 13A |
System Environment | Windows XP/2000/7/8/10 |
Pressure of accessorial gas source | 0.6MPa |
Operating Humidity | 5-95% |
Position System | Red-light pointer |
Graphic Format Supported | DXF, AI, PLT etc. |
Overall dimensions(L×W×H) | 63" x 68.9" x 47.2" |
Machine net weight | 400kg |
- Description
About this product
1. Laser Power: CO2 Sealed Glass 150W, Maximum cutting thickness for acrylic: 1.2" (30mm)
2. Working Area: 49" x 36", Workbtable load: 330 lbs(150 kg)
3. Power Supply: AC 220 V ± 10%, single phase, 60 Hz
4. MITSUBISHI servo motor & driver
5. X,Y,Z Ball Screw & TBI linear Guide
6. Positioning accuracy (X,Y): ±0.002"/39.4"(±0.05mm/1000mm), Repeatability accuracy: ±0.002"(±0.05mm)
7. New frame structure, no deformation for at least 5 years

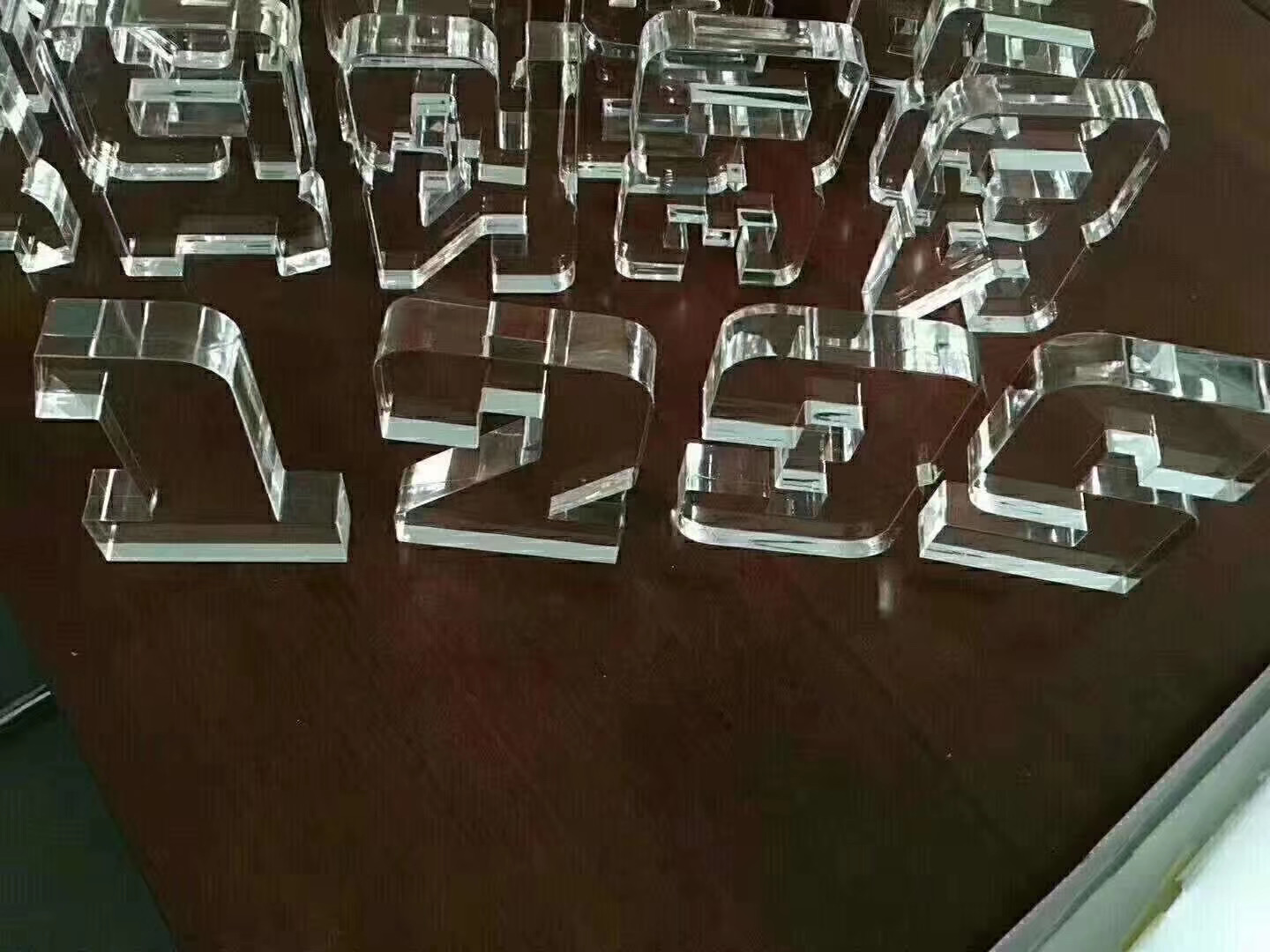

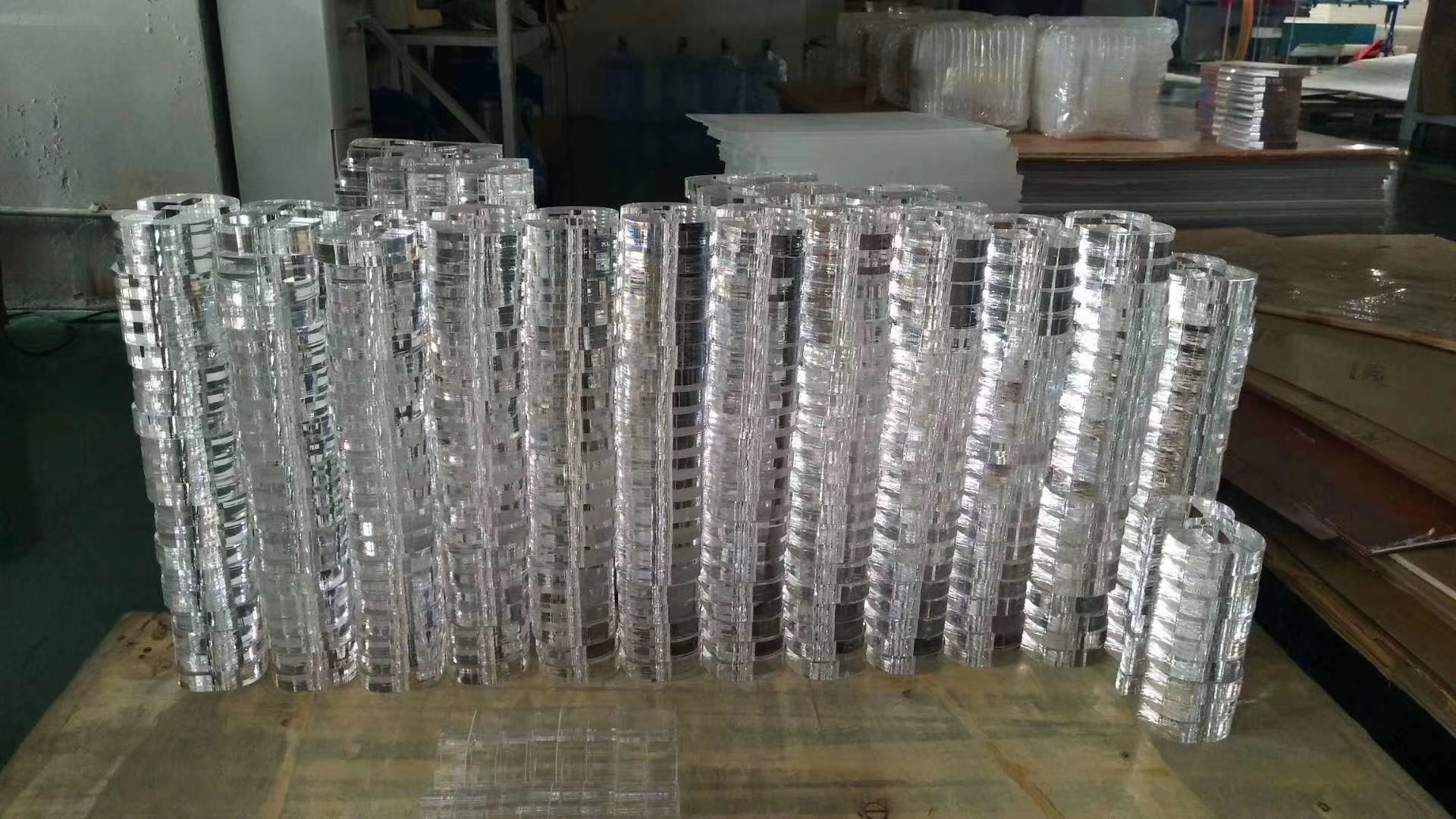

8. Perfect cutting thickness: Acrylic 30mm (1.2")
Packaging Method | Wooden Crate |
Packing size (L×W×H) | 72.8" x 70" x 66.1" |
Gross Weight | 1210 lbs (550kg) |
MC-1250/MC-2500 with high quality configuration: Here are industrial standard configuration including fixed beam optical laser system, cutting following system, Mitsubishi servo system, imported ball screw, water-cooling system, Red-light pointer,exhaust-air system, off-computer system so as to guarantee high precision and reliability meanwhile make the machine more cost-effective!
1. High precision, detailed capacity, and speed are key elements to obtain the best quality when laser cutting, this is why MINTECH incorporates Japanese Mitsubishi servo motors on the steel X and Y axis as well as digitally controlled Drivers. Servo technology is known for its high precision, smooth movements and the ability to operate without cogging at a high speed.
2. High qulity ball screw is a safe and fast movement system that delivers high precision and easy maintenance.
3. The machine comes with a USB input port for flash drives that allows you to load files into the internal memory and USB/Printer port (connection cable included) to connect it directly to a PC.
4. Perfect cutting thickness: Acrylic 30mm (1.2")
Main Accessories:
Packing List:
The number of package: 1 No.1 package No. Name specifications Remark 1 the main machine 1 MC-1250 2 air pipe 1 ODφ6 5m 3 surport unit 6 4 hoop 2 Ф200 5 vent-pipe 1 Ф200 6 support bar 50 7 toolbox 1 see toolbox below 8 water chiller 1 CW-5200 9 laser tube 1 150W 10 laser power 1 150W 11 fan 1 1.5KW 2640m³/h Toolobox 1 therm-hypersensitive paper 10 2 cross target 1 3 adhesive tape 1 4 absolute alcohol 1 5 clean paper 1 6 tampon 1 7 cutting head 1 including lock nuts 8 focus lens 2 9 nozzle 2 10 screwdriver+ 1 11 screwdrive- 1 12 monkey wrench 1 13 steel ruler 1 Length:150mm 14 hexagonal wrench 1 15 WF 10 For wire fixup 16 hoop 2 17 6-8 connecter 1 18 6-6 connecter 1 19 key 2 20 mirrors 5 21 Packing list 1 22 Limit switch 1 23 High voltage resistant tape 1 24 CD-ROM 1 Software
The number of package: 1 | ||||
No.1 package | ||||
No. | Name | specifications | Remark | |
1 | the main machine | 1 | MC-1250 | |
2 | air pipe | 1 | ODφ6 | 5m |
3 | surport unit | 6 | ||
4 | hoop | 2 | Ф200 | |
5 | vent-pipe | 1 | Ф200 | |
6 | support bar | 50 | ||
7 | toolbox | 1 | see toolbox below | |
8 | water chiller | 1 | CW-5200 | |
9 | laser tube | 1 | 150W | |
10 | laser power | 1 | 150W | |
11 | fan | 1 | 1.5KW | 2640m³/h |
Toolobox | ||||
1 | therm-hypersensitive paper | 10 | ||
2 | cross target | 1 | ||
3 | adhesive tape | 1 | ||
4 | absolute alcohol | 1 | ||
5 | clean paper | 1 | ||
6 | tampon | 1 | ||
7 | cutting head | 1 | including lock nuts | |
8 | focus lens | 2 | ||
9 | nozzle | 2 | ||
10 | screwdriver+ | 1 | ||
11 | screwdrive- | 1 | ||
12 | monkey wrench | 1 | ||
13 | steel ruler | 1 | Length:150mm | |
14 | hexagonal wrench | 1 | ||
15 | WF | 10 | For wire fixup | |
16 | hoop | 2 | ||
17 | 6-8 connecter | 1 | ||
18 | 6-6 connecter | 1 | ||
19 | key | 2 | ||
20 | mirrors | 5 | ||
21 | Packing list | 1 | ||
22 | Limit switch | 1 | ||
23 | High voltage resistant tape | 1 | ||
24 | CD-ROM | 1 | Software |

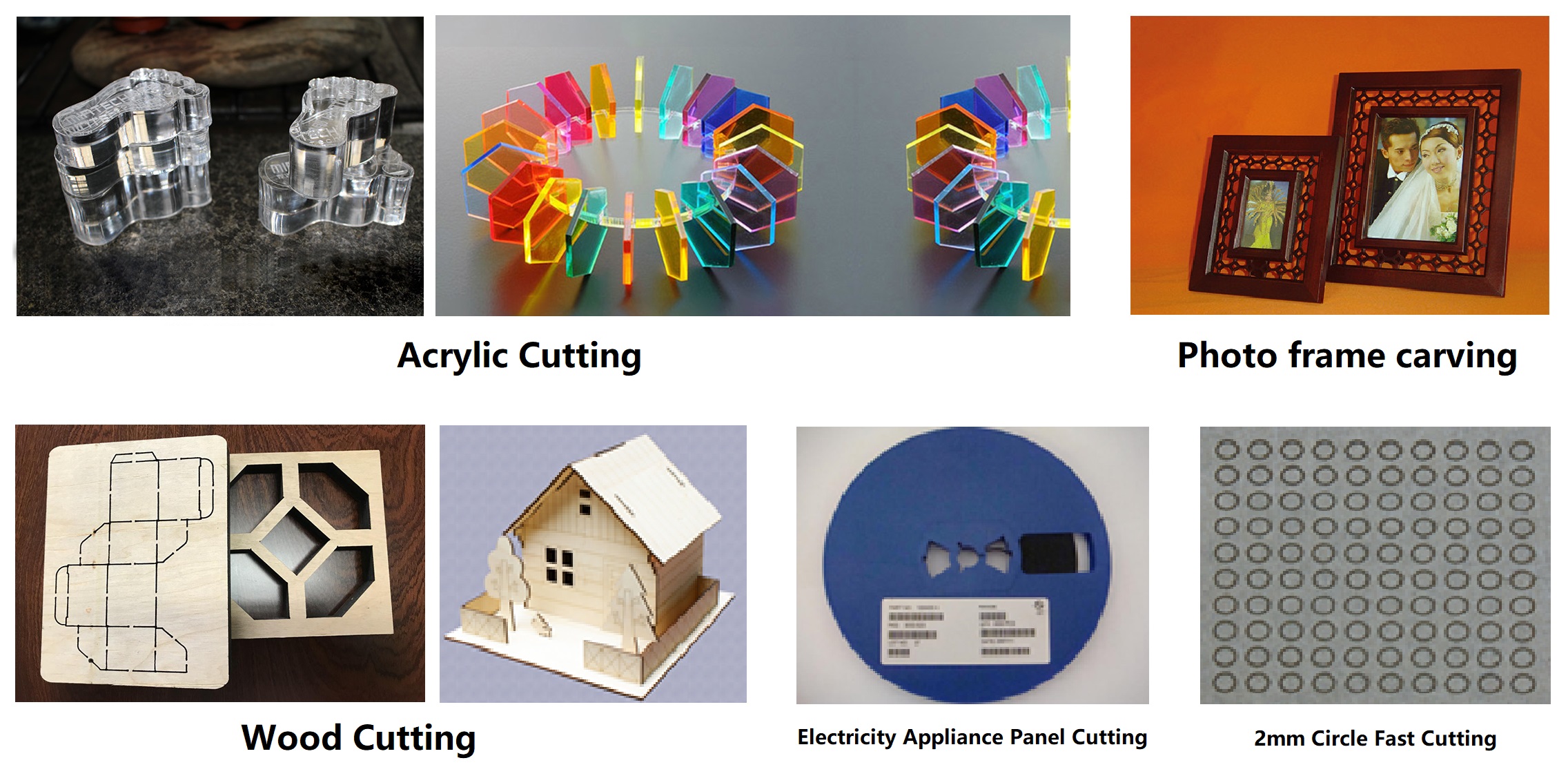

Applications:
Widely used in cutting and engraving acrylic, wood, leather, cloth and other non-metallic materials.
Attentions:
- When cut some materials such as acrylic,
some harmful gas, smoke or powder may be produced. A purge kit (option) is
recommended.
- The materials for machining or its
output gas may be combustible, and the preventive methods should be adopted.
- Do not cut the high reflectivity
material which wavelength is 10.6μm such as copper, gold, aluminum etc.
- Do not cut PVC (polyvinyl chloride) with
a laser beam. The chemical heat reaction in combination with the humidity in
the air will produce hydrochloric acid. Hydrochloric acid is hazardous to the
operator and the laser system.
