High Precision 5/16 inch, 9/32 inch, 19/32 inch, 23/32 inch, 25/32 inch, 27/32 inch Round R8 Collet 0.0006 inch TIR Hardened

High Precision 5/16 inch, 9/32 inch, 19/32 inch, 23/32 inch, 25/32 inch, 27/32 inch Round R8 Collet 0.0006 inch TIR Hardened
High Precision 5/16 inch, 9/32 inch, 19/32 inch, 23/32 inch, 25/32 inch, 27/32 inch Round R8 Collet 0.0006 inch TIR Hardened
High Precision 5/16 inch, 9/32 inch, 19/32 inch, 23/32 inch, 25/32 inch, 27/32 inch Round R8 Collet 0.0006 inch TIR Hardened
High Precision 5/16 inch, 9/32 inch, 19/32 inch, 23/32 inch, 25/32 inch, 27/32 inch Round R8 Collet 0.0006 inch TIR Hardened
High Precision 5/16 inch, 9/32 inch, 19/32 inch, 23/32 inch, 25/32 inch, 27/32 inch Round R8 Collet 0.0006 inch TIR Hardened
High Precision 5/16 inch, 9/32 inch, 19/32 inch, 23/32 inch, 25/32 inch, 27/32 inch Round R8 Collet 0.0006 inch TIR Hardened
High Precision 5/16 inch, 9/32 inch, 19/32 inch, 23/32 inch, 25/32 inch, 27/32 inch Round R8 Collet 0.0006 inch TIR Hardened
from
$4.08
Ex Tax: $4.08
  • Stock: In Stock
  • Model: SCJ006132
  • SKU: SCJ006132
Products Sold: 0
Product Views: 306

Available Options

  • Specifications
attribute-list

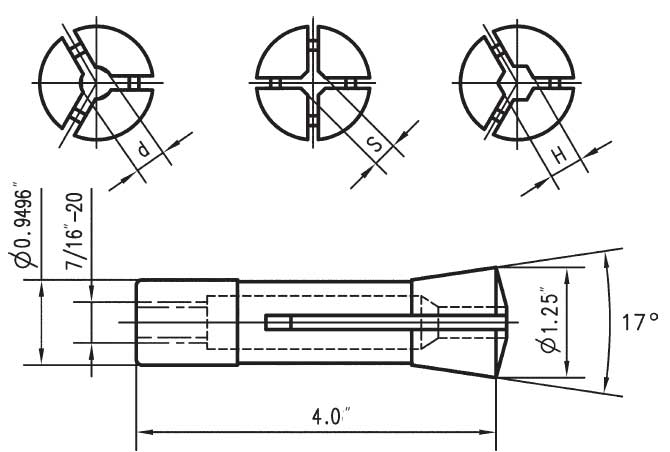

Collet StyleRound

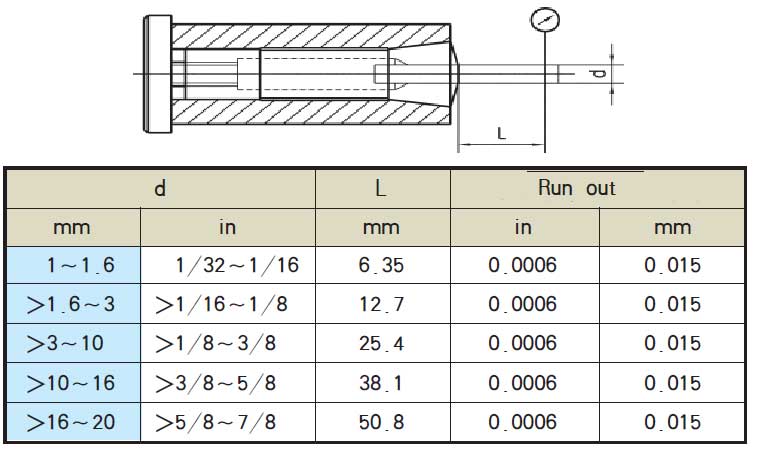

TIR (INCH)0.0006"
Collet Material65Mn
Drawbar Thread Size (B)7/16"-20
Overall Length (L)4.0" (101.6mm)
  • Description
About this product

1. Collet style: R8 Round

2. Material: 65Mn

3. T.I.R.: 0.0006"

4. Widely used on milling machine with R8 spindle and fixtures R8 hole

High Precision 9/32'' Round R8 Collet 0.0006'' TIR Hardened

High Precision 9/32'' Round R8 Collet 0.0006'' TIR Hardened

⒈ Material: 65Mn.
⒉ Hardness: clamping part HRC 55~60 elastic part HRC 40~45

⒊ This unit is applicable to all sorts of milling machines, which spindle taper hole is R8, such assuch as X6325、X5325 etc.
