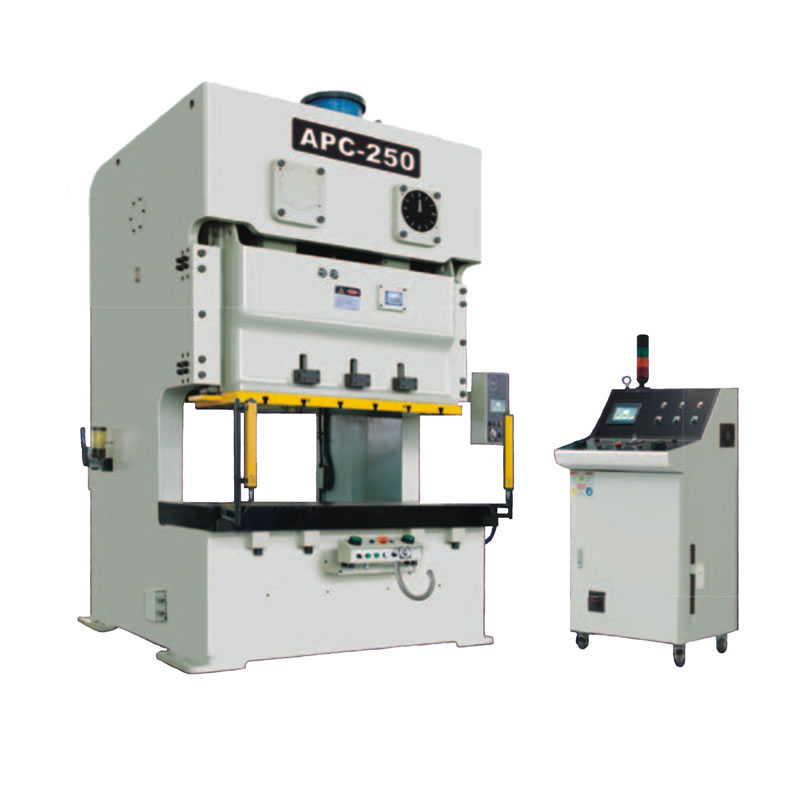

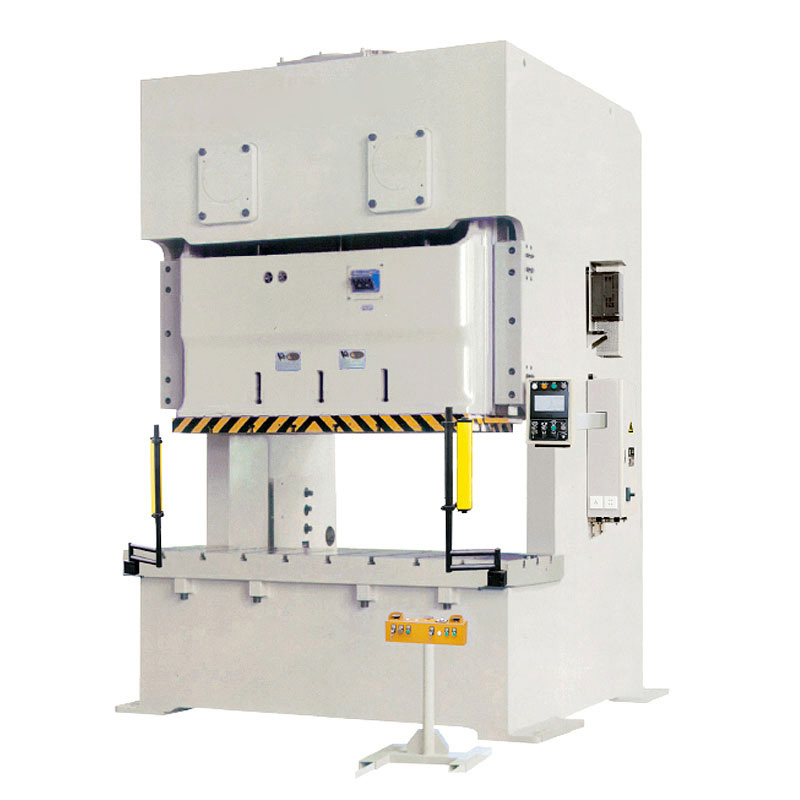

Name: High Precision Pneumatic Single Crank Stamping Press Punching Machine small pneumatic press machine
SKU: SCJ006686
Price: 35000.00 USD
Availability: InStock

Add to Cart

Buy Now

Specifications

Other attributes
Condition	New
Power Source	Pneumatic
CNC or Not	Normal
Place of Origin	Guangdong, China
warranty:	One Year
Weight (T)	20
Key Selling Points	High-accuracy
Showroom Location	India
Applicable Industries:	Manufacturing Plant
Marketing Type	Ordinary Product
Machinery Test Report	Not Available
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	Motor, PLC, Other
Motor Power (kw)	Optional
Slide Stroke (mm)	130-280mm
Model Number	APC
Voltage	380V/220V Optional
Capacity	110-250T
Dimension(LWH)	1236mmx830mmx1920mm
Motor Power	11/15/18.5/55 Kw * 4P
Product name:	Power Press Machine
Precision	GB(JIS)1class
Usage	Metal Press
Application	Metal Sheet Stamping
Function	Metal Processing
Machine Type	Punching Machine
Die Height	400-605 mm
If OEM/ODM	Yes
Keyword:	Mechanical Metal Punching Machine
Packaging and delivery
Packaging Details	HOT Oem Sheet Metal Stamping Parts Die Used Hydraulic Pipe Punching Press Rotor Cutting Machine 5 Ton For Aluminium Profile In wooden case
Port	SHENZHEN
Supply Ability
Supply Ability	10 Unit/Units per Month

Description

Product Description

Specification

Name	Unit	APC-110		APC-160		APC-200		EDS-260
Model	Type	V type	H type	V type	H type	V type	H type	V type	H type
Capacity	Ton	110		160		200		250
Rated tonnage point	mm	5	3	6	3	6	3	7	3.5
Stroke	mm	180	110	200	130	250	150	280	170
Stable speed	s.p.m	35-65	50-100	30-55	40-85	25-45	35-70	20-35	30-60
Die height	mm	400	435	450	455	500	550	550	605
Slide adjustment	mm	100		100		120		120
Bolster area	mm	1800x650x130		2000x760x150		2400x840x170		2700x900x170
Slide area	mm	1400x500x70		1600x550x70		1850x650x95		2100x700x95
Main motor	kw.p	11x4		15x4		18.5x4		22x4
Presses weight	Ton	14.2		20		27.5		45.5
Air pressure	kg/cm2	5		5		5		5
Presses precision	-	GB(JIS)1class
Die cushion capacity	-	Two plate & two cylinders
Capacity	Ton	3.6 x 2		6.3 x 2		10 x 2		14 x 2
Air pressure	kg/cm2	6		6		6		6
Stroke	mm	70		70		80		100
Die cusion work part dimension	mm2	350 x 235 x 2		410 x 260 x 2		540 x 350 x 2		640 x 470 x 2

Features

With High rigidity rack design, they are welded with the use of high-quality steel plates, through relieving of internal stresses,sothat stability and reliability and
reliability of the whole machine in precision are enhanced.
Consistent driving center and machine center to guarantee accurate and stable punching.
In order to guarantee relative stationarity of machine operation, it is necessary to balance twobalancers.
Moulding-adjustment precision is as high as 0.1mm, safe,speedy ,and reliable.
Through hard oxidation and grinding ,such parts as bent axles,gear sets,and connecting rods possesss higher combination property and tolerance.
Adopt highly sensitive and reliable clutch/brake and internationally top duplex,to guarantee precision and safety for operation and stop of press rams.
Machine's structural design shall be reasonable,for the convenience of realizing automatic production,reducing cost,and improving efficiency.
Possess advanced design concepts, low noise, low consumption,and energy saving.
