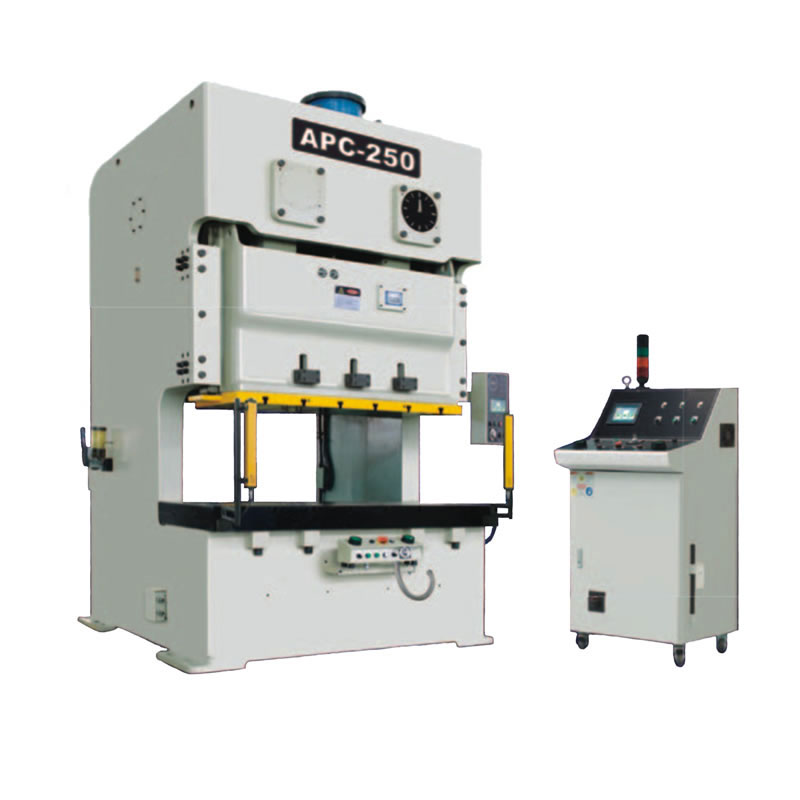

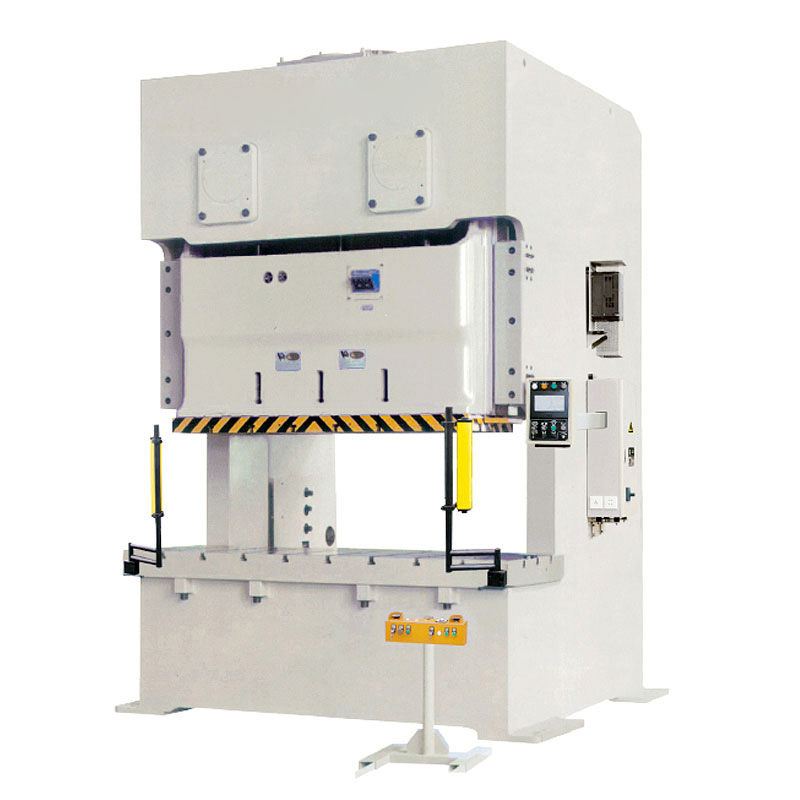

High Speed APC Series Double-Crank Precision Metal Stamping Press Punching Machine
from
$35,000.00
Ex Tax: $35,000.00
5 or more $30,000.00
- Stock: In Stock
- Model: SCJ006665
- SKU: SCJ006665
Products Sold: 0
Product Views: 132
Ask a Question About This Product
- Description
Product Description
Specification
| Name | Unit | APC-110 | APC-160 | APC-200 | EDS-260 | ||||
| Model | Type | V type | H type | V type | H type | V type | H type | V type | H type |
| Capacity | Ton | 110 | 160 | 200 | 250 | ||||
| Rated tonnage point | mm | 5 | 3 | 6 | 3 | 6 | 3 | 7 | 3.5 |
| Stroke | mm | 180 | 110 | 200 | 130 | 250 | 150 | 280 | 170 |
| Stable speed | s.p.m | 35-65 | 50-100 | 30-55 | 40-85 | 25-45 | 35-70 | 20-35 | 30-60 |
| Die height | mm | 400 | 435 | 450 | 455 | 500 | 550 | 550 | 605 |
| Slide adjustment | mm | 100 | 100 | 120 | 120 | ||||
| Bolster area | mm | 1800x650x130 | 2000x760x150 | 2400x840x170 | 2700x900x170 | ||||
| Slide area | mm | 1400x500x70 | 1600x550x70 | 1850x650x95 | 2100x700x95 | ||||
| Main motor | kw.p | 11x4 | 15x4 | 18.5x4 | 22x4 | ||||
| Presses weight | Ton | 14.2 | 20 | 27.5 | 45.5 | ||||
| Air pressure | kg/cm2 | 5 | 5 | 5 | 5 | ||||
| Presses precision | - | GB(JIS)1class | |||||||
| Die cushion capacity | - | Two plate & two cylinders | |||||||
| Capacity | Ton | 3.6 x 2 | 6.3 x 2 | 10 x 2 | 14 x 2 | ||||
| Air pressure | kg/cm2 | 6 | 6 | 6 | 6 | ||||
| Stroke | mm | 70 | 70 | 80 | 100 | ||||
| Die cusion work part dimension | mm2 | 350 x 235 x 2 | 410 x 260 x 2 | 540 x 350 x 2 | 640 x 470 x 2 | ||||
Features
- With High rigidity rack design, they are welded with the use of high-quality steel plates, through relieving of internal stresses,sothat stability and reliability and
reliability of the whole machine in precision are enhanced. - Consistent driving center and machine center to guarantee accurate and stable punching.
- In order to guarantee relative stationarity of machine operation, it is necessary to balance twobalancers.
- Moulding-adjustment precision is as high as 0.1mm, safe,speedy ,and reliable.
- Through hard oxidation and grinding ,such parts as bent axles,gear sets,and connecting rods possesss higher combination property and tolerance.
- Adopt highly sensitive and reliable clutch/brake and internationally top duplex,to guarantee precision and safety for operation and stop of press rams.
- Machine's structural design shall be reasonable,for the convenience of realizing automatic production,reducing cost,and improving efficiency.
- Possess advanced design concepts, low noise, low consumption,and energy saving.
