High quality decoiler and leveler 2 in 1 flattening machine metal coil leveling equipment

Other type uncoiler straightener 2 in 1 feeding system for reference.

 Features:

1,Material decoiler and straightener function together in one structure ,does not take up too much space.

2,Suitable for various of metal coils uncoiling and straightening .

3,It can adopt variable speed device , to control the discharge speed.

4,The material rack and straightener are integrated, chain drive, chrome plated roller, special endless speed change device controls the discharging speed, with strong durability.
5,The uncoiling adopts splint on both sides, driven by the feeding roller, which is pulled by leveling part to control the speed.

6,Leveling roller adopts chromium steel 40CR,after conditioning ,high frequency quenching ,hard chromium plating. Surface hardness HRC60 degree,chrome  plating thickness unilateral 0.05mm,high hardness, strong durability.
7,Leveling adjustment adopts four independent fine-tuning, which is controlled by scale, simple and practical.

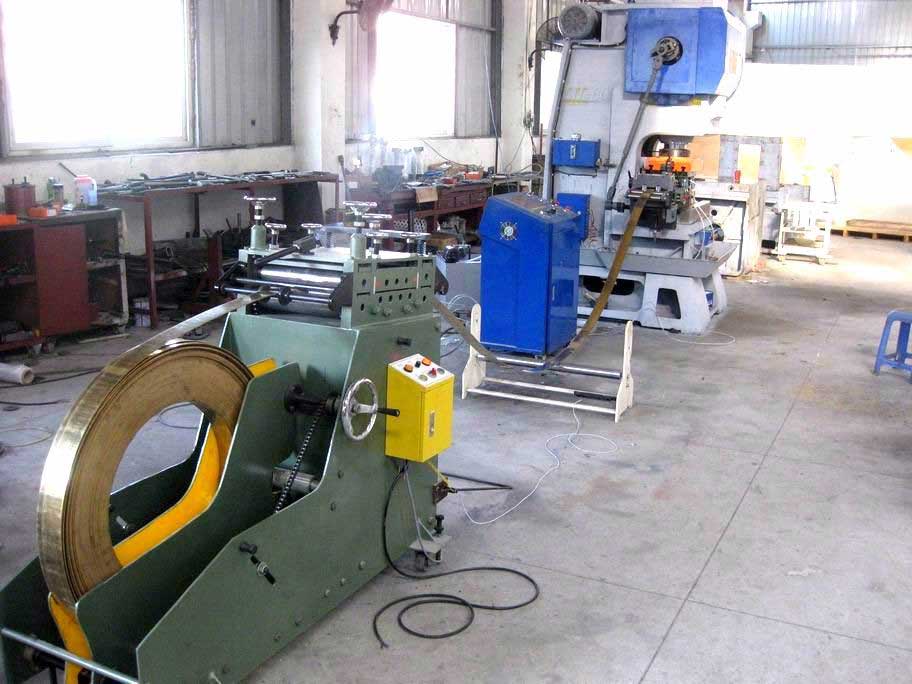

8,Use L type iron frame induction frame induction,Mainly suitable for the material is lighter and smaller, the surface requirements are not high stamping production,It is often used with air feeder, with an economical punching automatic production line.

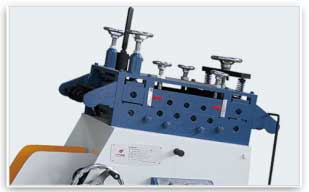

The dead of leveler

1.The head adopts design of parallel roller, the upper 3 rollers/lower 4 rollers, totally 7 refined roller structure

2.Adopting four point fine adjustment ,which is more suitable for processing high-precision products. Four point independent pressure is used to adjust the pressure of feeding wheel for incoming and outgoing materials, which can effectively prevent deviation and deformation of materials.

3.Support roller adopts galvanizing roller without power, material integrated forming,surface resistance to scraping grinding, using mechanical bearings, rotating flexible and durable.

4.It adopts cost iron hand wheel , and its surface is electroplated, it is the most traditional hand wheel..

5.The transmission part is protected by protective cover on both sides, equipped with window for convenient observation.

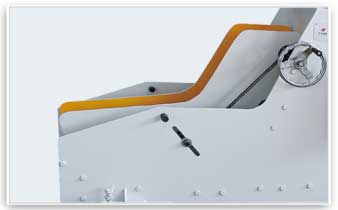

Rack section

1.The equipment adopts decoiler and straightener combine together ,improve the utilization rate of the site.

2. The rack is designed with cantilever beam, and all the plates are cut by laser plasma, with high precision and good interchangeability.

3. All plates are cut by laser plasma with high precision.

4.The overall structure is simple, general technical workers can assemble and replace equipment parts, convenient and fast ,greatly reduce the maintenance cost.

Leveler roller

1.The straightener wheel is made of solid bearing steel, thickened and electroplated after intermediate frequency, and the surface hardness is not low HRC58, to ensure the durability of material.

2.Forging round steel with GCr15, after preheating treatment( spheroidizing annealing),then turning , milling ,intermediate frequency treatment , rough grinding and cooling stabilization,then fine grinding ,finally electroplating ,maximize the gurantee of precision degree, concentricity, smoothness and hardness , extend the service life of straightener roller.

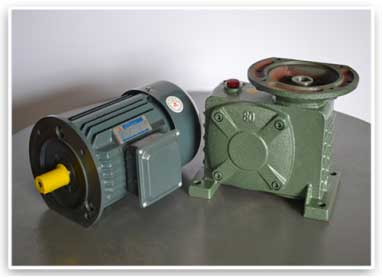

Power section

1. Adopt model 80 worm gear vertical reducer ,use the speed converter of gear , reduce the rotation number of motor to desired rotation number ,and get the mechanism with larger torque.

2.Adopt vertical motor, low vibration, low noise, fixed rotor part adopts pure copper coil, life is 10 times of ordinary coil, both ends are equipped with ball bearing ,low friction, low temperature.

Electrical section

1. Adopt silver alloy relay ,full copper coil ,flame retardant safety base, long lasting and durable.

2. Adopt safety protection adjustment circuit time delay ,silver alloy contact ,various and dial, satisfied different delay ranges.

3. The switch adopts sliding contact ,with self-cleaning function , normally open and normally closed contact adopts separate bonding structure, can work with different poles, equipped with anti-rotation positioning and stop loose mounting gasket.

4. Adopt self-duplex flat button, the force is light, the key range is moderate, the building block type combination structure. The contact is made up of keto-base composite points with strong conductivity and large current, with a life span of up to 1 million times.
