- Description

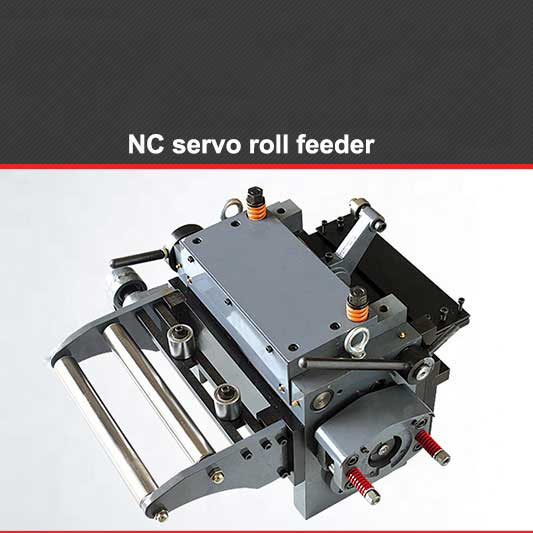

High speed roller feeder roll feeder metal steel feeding machine for press machine
Advantages:
1. Continuity: continuous processing for multiple engineering
2. High speed: up to 600 times per minute
3. Universality: regardless of the width and thickness of the material, just adjust the feeder to fit the mold can be used.
4. Simple and practical construction.
5. Low failure rate and easy maintenance.
Specification:
|
(mm) |
(mm) |
(mm) |
(mm) | capacity (Ton) | weight (kg) |
LH-105NS | 100 | 50 | 0-1.6 | 55-100 | 20 | 64 |
LH-205NS | 200 | 50 | 0-1.6 | 55-100 | 20 | 87 |
LH-305NS | 300 | 50 | 0-1.6 | 55-100 | 40 | 103 |
LH-405NS | 400 | 50 | 0-1.6 | 55-100 | 60 | 121 |
LH-138NS | 130 | 80 | 0-1.6 | 60-120 | 10-60 | 76 |
LH-1310NS | 130 | 100 | 0-3.5 | 70-140 | 40-60 | 142 |
Introduction:

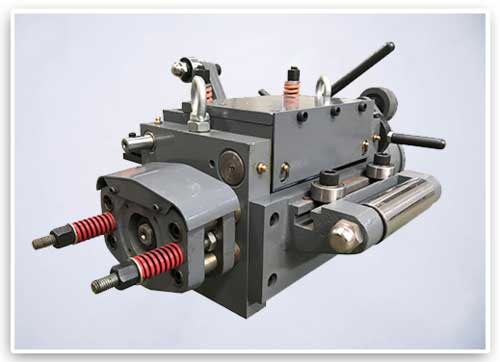

Structures
1. The unitasis is assembled and all components are secured with high-strength screws. No welding parts, convenient for future repair and replacement of accessories, saving time and cost.
2. The left and right panels are made directly of liquid metal casting and are adaptable and can be used for a variety of alloy molding, flexibility is good.
3. The overall structure is compact, the occupied area is small, the installation is simple and convenient.

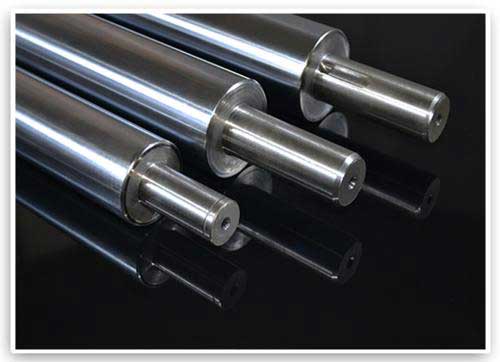

Straigjtening roller
1. Corrective wheel is made of solid bearing steel, medium frequency after thickening electroplating treatment, surface hardness is not lower than HRC58 ensures that the material is durable.
2. Applies GCr15 forge round steel , after preheating (globeded annealing), followed by grinding, milling, After medium frequency treatment, coarse grinding cold stabilization, then fine grinding, and finally electroplating.Maximum assurance Precision, concentricity, finish and hardness, extend the service life of the corrective roller.

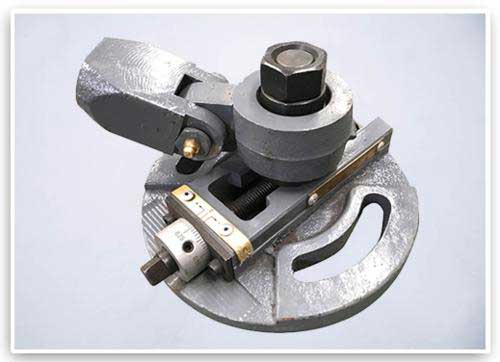

Eccentric disc
1. Applies casting iron, adaptable, flexible, not easy to break.
2. The cross joint is compactand, with NSK imported bearings and runs smoothly without a cadon.
3. The scale wire rod is made of high-strength material for smooth adjustment Eccentric disc with multiple scales as a whole for easy adjustment

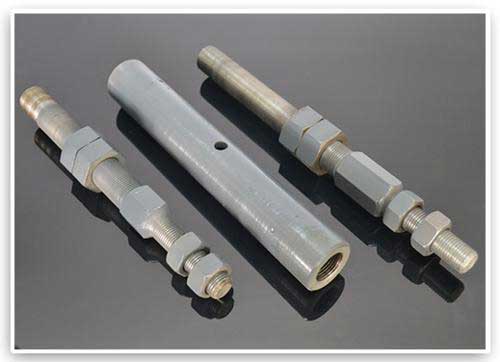

Pull rod
The mid-section of the pull rod is processed with a seamless tube and the material is highly hard.Two ends of the wire rod with round steel by the lathe finishing, to ensure that the processed workpiece in the middle section fixed tube fit to ensure stability during operation.The pull rod installation is easy to collect blood, two-way with double nuts for fixing, to prevent the two ends of the wire rod in the use of Increased safety due to long-term jitter in the process.
