from
$10,000.00
Ex Tax: $10,000.00
  • Stock: In Stock
  • Model: SCJ006660
  • SKU: SCJ006660
Products Sold: 0
Product Views: 151

Available Options

  • Specifications
Other attributes
ConditionNew
Power Sourcemotor
CNC or NotCNC
Place of OriginGuangdong, China
warranty:1 year
Weight (T)200
Key Selling PointsHigh-accuracy
Showroom LocationMalaysia
Applicable Industries:Manufacturing Plant
Marketing TypeHot Product 2019
Machinery Test ReportProvided
Video outgoing-inspectionProvided
Warranty of core components1 Year
Core ComponentsBearing, Gear, Motor, PLC, Engine
Model NumberJH21
Voltage220v, 380v, 415v, customized
Capacity15T
Dimension(L*W*H)1000mmx1000mmx1900mm
After-sales Service ProvidedEngineers available to service machinery overseas

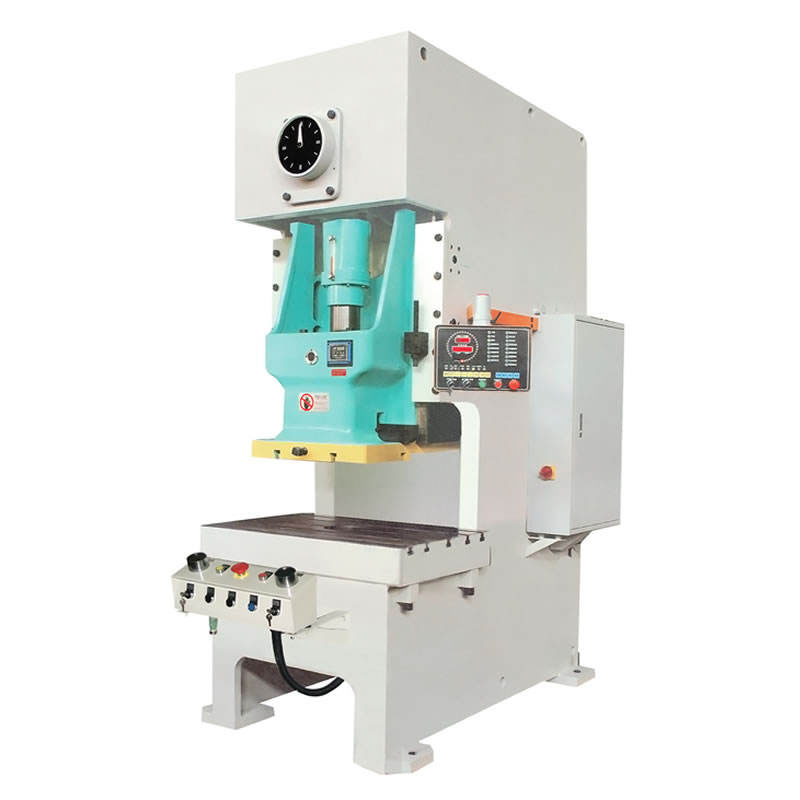

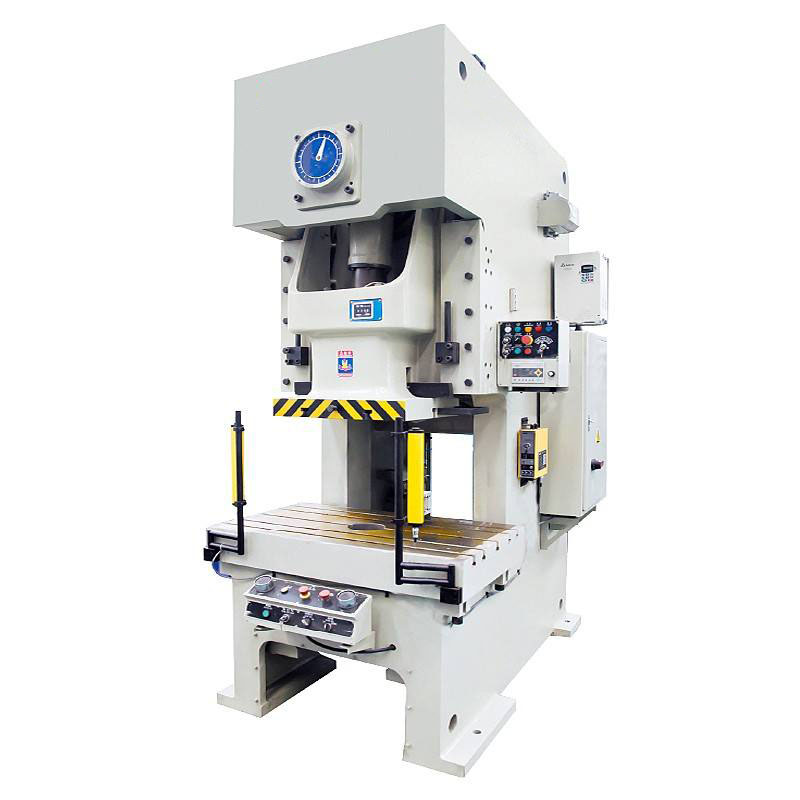

Product name:Automatic Blanking Machine Components Application Of Punching Machine
PrecisionGB(JIS)1class
Slide Stroke60mm
ApplicationMetal Sheet Stamping
Machine TypePunching Machine
SPM130
Max Die Set Height200mm
Keyword:Mechanical Metal Punching Machine
Packaging and delivery
Packaging DetailsHydraulic Pneumatic Hole Press Key Cutting Automatic Blanking Machine Components Application Of Punching Machine
PortShenzhen
Supply Ability
Supply Ability30 Unit/Units per Month
  • Description
Product Description



Performances and characteristics
1. Steel plates welded as machine body, treated to remove internal stress,marked with high rigidity;
2.Crankshaft longitudinally arranged, compact structure and beautiful outlook;
3. Hexagonal guide rails of extra length, guide in high precision;
4.Combined-type pneumatic friction clutch-brake, steady engagement, low noise level;
5.Hydraulic overload protection device for JH21 and rigid protection device for JF21 to prevent damage of the machine tools due to overload;
6.PLC-controlled electric circuit, safety duplex valve for air pipelines, flexible and highly sensitive in movement, safe and reliable, single time, inching and continuous operations for options, conforming to the safety standard for stamping machines.

Model JH21-25JH21-45JH21-60JH21-80JH21-125JH21-160JH21-200*JH21-200JH21-250JH21-315JH21-400
Nominal forceKN2504506008001250160020002000250031504000
Stroke of nominal forcemm34455666778
Stroke of sliding blockmm80120140160180200180250250250280
Number strokesmin10080706050453545403030

Maximun height

for die loading

mm250270300320350400390450500500530

Adjustment range

for die loading height

mm5060708090100110110120120120

Distance from

slid block centre

 to the frame

mm210225270310350390390430450450480

Space

between columns

mm4505005606206607208709009809801000

Bottom size

of sliding block

Left-right mm3604104805406207008008809509501000
Front-backmm250340400460520580600650700700750

Hole size

for die handle

Diametermm4050505070707070707070
Depthmm656060909010090100100100100

Size

of worktable

Left-right mm7008108709501070117014001390150015401700
Front-backmm400440520600680760760840880880940
Thicknessmm80110130140155160160180190190200
Blank-holding holemm150150150150160180200200200200250

Distance from

 worktable to ground

mm78080090090090090010001000100010001000

Distance

of ground bolts

Front-backmm835950110012351510166020202020215021502500
Left-right mm6907458409201040114013601360146015001550
Main motor capacitykw2.25.55.57.511151515223037
Press DimensionFront-backmm13461435168521252355238025802585282028803150
Left-right mm9451075120017601875145016901690171017501790
heightmm21202391257030403255325038103810390039204610
Weightkg27003800530066001050012800205002050023900268003300
