- Stock: In Stock
- Model: SCJ004393
- SKU: SCJ004393
Ask a Question About This Product
- Description

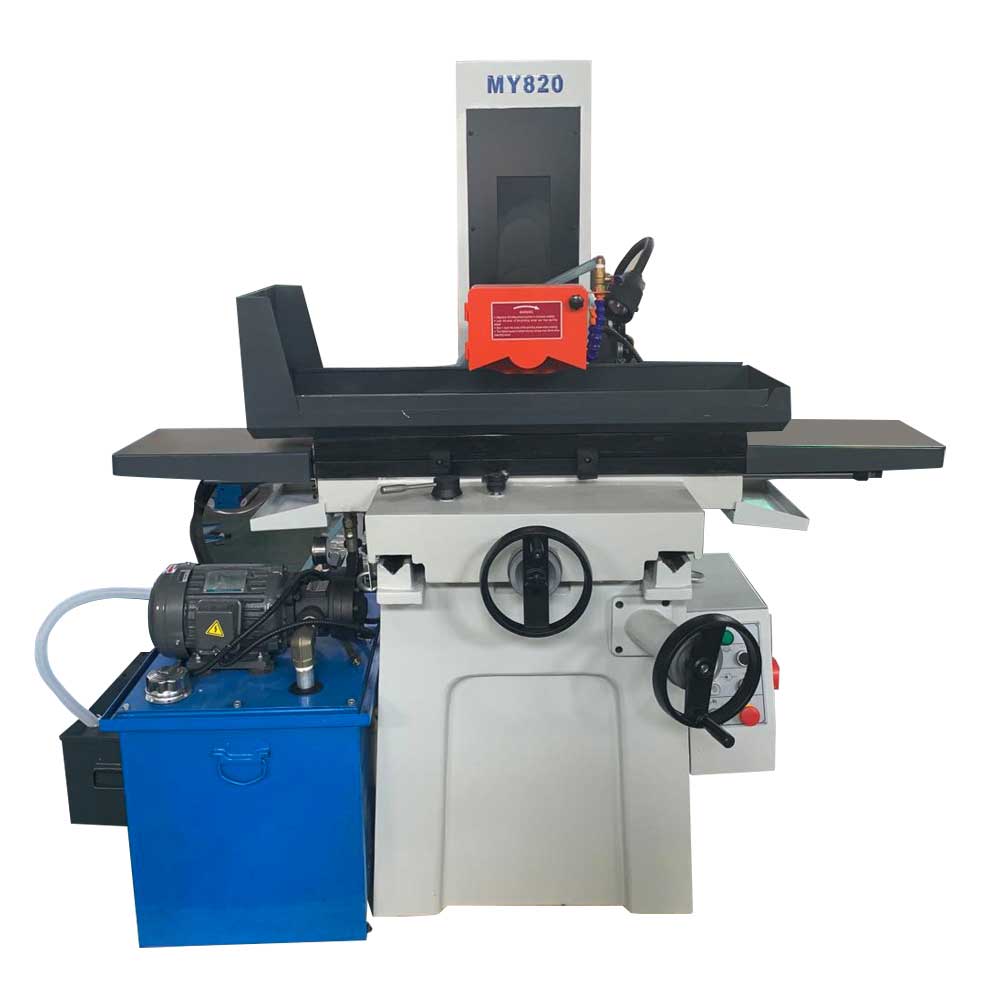

1. Hydraulic Surface Grinder Motor: Spindle motor 2HP+Hydraulic motor 2HP,230/460V, 3-phase
2. Hydraulic Surface Grinder Table surface: 7-7/8" x 18-57/64"
3. Hydraulic Surface Grinder Maximum distance table to wheel: 17.7"
4. Hydraulic Surface Grinder Approximate shipping weight: 1874 lbs.
5. Hydraulic Surface Grinder Grinding wheel: 7.87" x 0.79" x 1.25", Longitudinal travel: 8.6".
The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.
Longitudinal movement( left and right) adopts V shaped-flat slideway, hydraulic transmission and artificial precision scraping which can achieve stable running.
Hydraulic system adopts advanced vane pump and valve from China, including mechanical commutation and throttle governing. Throttle governing has unfloding function, it can control the start and stop of the table.
The machine can grind surface and molding surface.
Every model can be equipped with digital readout system, electromagnetic chuck, rapid lifting motor and hand micro feed according to the customer’s demands.
Motor: Spindle motor 2HP+Hydraulic motor 2HP, 230/460V, 3-phase
Table surface: 7-7/8" x 18-57/64"
Longitudinal travel: 8.6"
Cross travel: 20.8"
Maximum distance table to wheel: 17.7"
T-slot and size: 1x0.055"
Grinding wheel: 7.87" x 0.79" x 1.25"
Overall dimensions: 66.1" x 44.9" x 69.3"
Wheel speed: 2850
Approximate shipping weight: 1874 lbs.
