from
$4,098.00
Ex Tax: $4,098.00
  • Stock: In Stock
  • Model: SCJ004129
  • SKU: SCJ004129
Products Sold: 0
Product Views: 222
  • Specifications
attribute-list
Laser Power30W JPT fiber
Product name:handheld fiber laser marking machine
Working Area4.3" x 4.3" (110 mm x 110 mm)
Laser output1 - 100% software setting(adjustable)
Beam QualityM2 <1.4
Wave length of laser1064nm
Marking Depth≤0.5mm(depend on materials)
With an extra spare lens5.5" x 5.5" (140 mm x 140 mm)
Repeated Accuracy0.01mm
Minimum character0.2mm
Gross power≤1KW
Life time of fiber laser source100,000 hours
Minimum line width0.02mm
Marking Speed≤7000mm/s
Operating Temperature0 - 40°C
Cooling WayForce-air cooling
Operation systemWindows XP/Vista/7/8/10
Processing materialsAll metals and some plastics
Support formatPLT, BMP, DXF, JPG, PNG, TIF, AI etc
Warranty timeone years
Packaging size30.7" L × 18.9" W × 29.9" H (780 mm x 480 mm x 760 mm)
Total weight125.66 lbs (57 kg)
  • Description
30W Socoje Hand Held Fiber Laser Marking Machine Metal Laser Engraver 1 set

About this product

1. Laser Power: Fiber Laser 30W

2. Software: BJJCZ EZcad

3. Marking Area: 4.3" x 4.3" (110 mm x 110 mm)

4. With an extra spare lens: 5.5" x 5.5" (140 mm x 140 mm)

5. Certification: FDA Certified

6. Power Supply: AC 110 V ± 10%, 60 Hz

7. System Environment: Windows XP/2000/7/8/10

8. 8G USB flash disk(usermanual and training videos)


Packing list:


Items

Specifications

Quantity

Laser marking machine

ST-F30

1

Control card

BJJCZ

1

Software program

EZcad

1

User manual & training video

USB flash disk

1

Power cable

110V power supply

1

USB cable

USB2.0

1

Pedal switch

1.5 meters

1

Alignment bars

Alloy aluminum

2

Alignment screws

Stainless steel

4

Ruler

Stainless steel

1

Hex key wrench

Stainless steel

1

Laser safety goggle

1064nm laser only

1


Machine dimension(approximately)

28.7" L × 14.9" W × 25.9" H

(730 mm x 380 mm x 660 mm)

Machine net weight

110 lbs (50 kg)

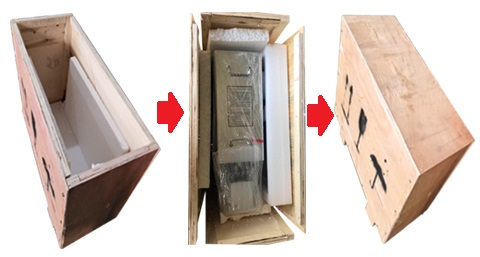

Packaging method

free-fumigation wooden box

Package dimension

30.7" L × 18.9" W × 29.9" H

(780 mm x 480 mm x 760 mm)

Package weight

125.66 lbs (57 kg)

30W Hand Held Fiber Laser Marking Machine Metal Laser Engraver


Note:

1. It does not include computer. You can use your own laptop or desktop computer.

Machine come with USB flash disk, which has the installation software, user manual and training videos. You could install the software on your computer.



Applicablematerials:

1. All metal materials: gold, silver, titanium, copper, alloy, aluminum, steel, stainless steel, carbon steel, zinc and etc.

2. Some non-metals: hard plastic, ABS, PVC, Nylon, PES, Makrolon.


Features:

1. The machine comes with a handheld marking head which could be extended 2 meters away from machine body.

2. It is portable and handheld. Easy to carry, take away and transport.

3. Its movable marking operation allows user to mark on large pieces or some pieces not movable.

4. Laser marking machine is a type of laser engraving system, it is the practice of using lasers to engrave an object.

5. Non-contact process, the laser head doesn’t touch the object being engraved, so it won’t scratch the object surface and the marking effect is perfect.

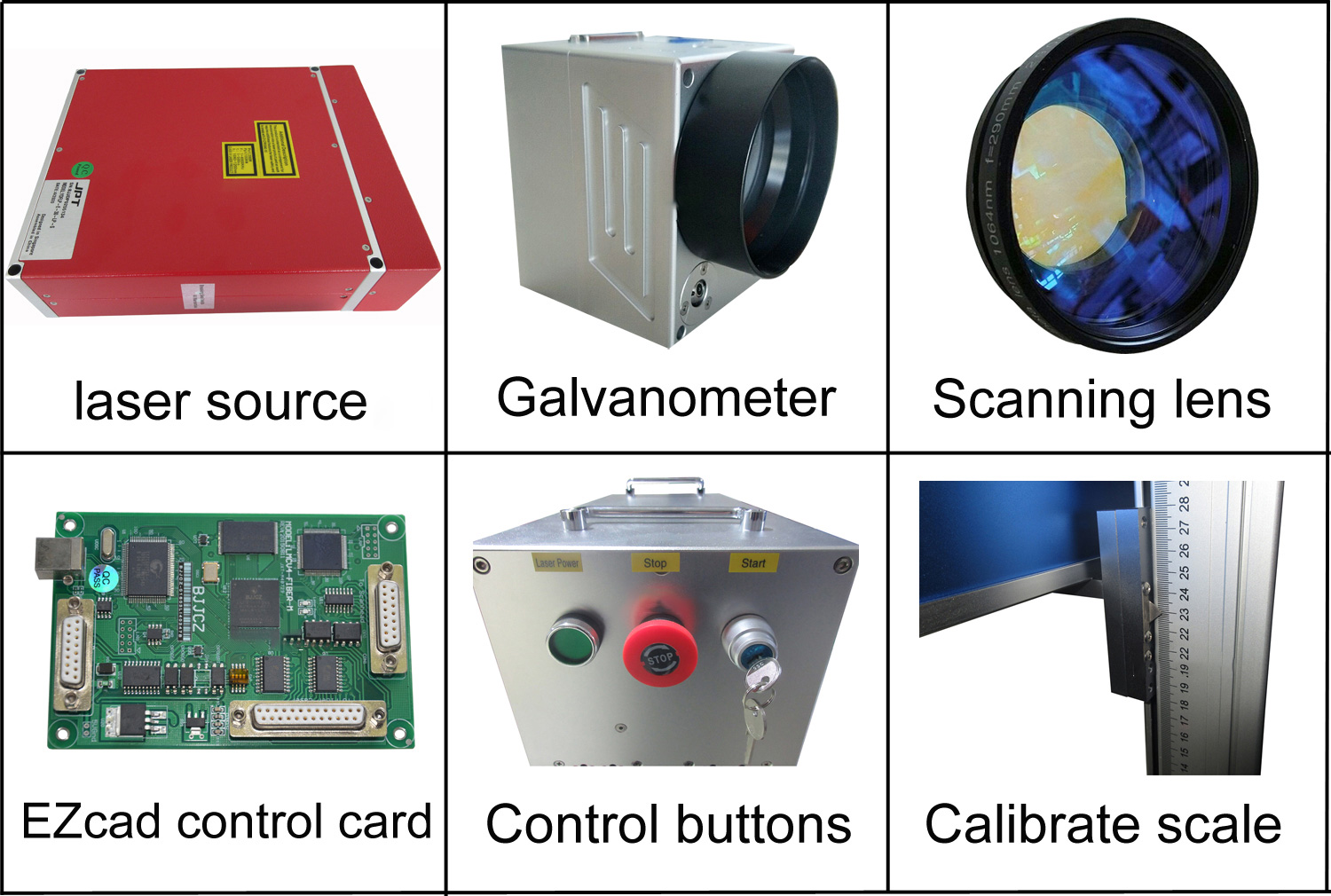

6. Adopt digital high-speed galvanometer scanner, small size, high speed and excellent stability.

7. Singapore imported field lens, fast speed, high transparent rate.

8. JCZ EZcad controller, USB interface, swift and stable transmission, easy software operation, strong functions.


30W Hand Held Fiber Laser Marking Machine Metal Laser Engraver
