- Stock: In Stock
- Model: SCJ004158
- SKU: SCJ004158
Ask a Question About This Product
- Description
Laser Power: 50W+Lens(Marking Area): 175*175mm+80mm Rotary Axis
Laser Source: LP+; Repetition Rate Frequency: 1-600kHZ; Pulse Duration: 200ns
Application Advantage: Silicone buttons -Metal Deep Carving -Stainless steel black -Metal Surface Treatment -High Frequency Line Processing

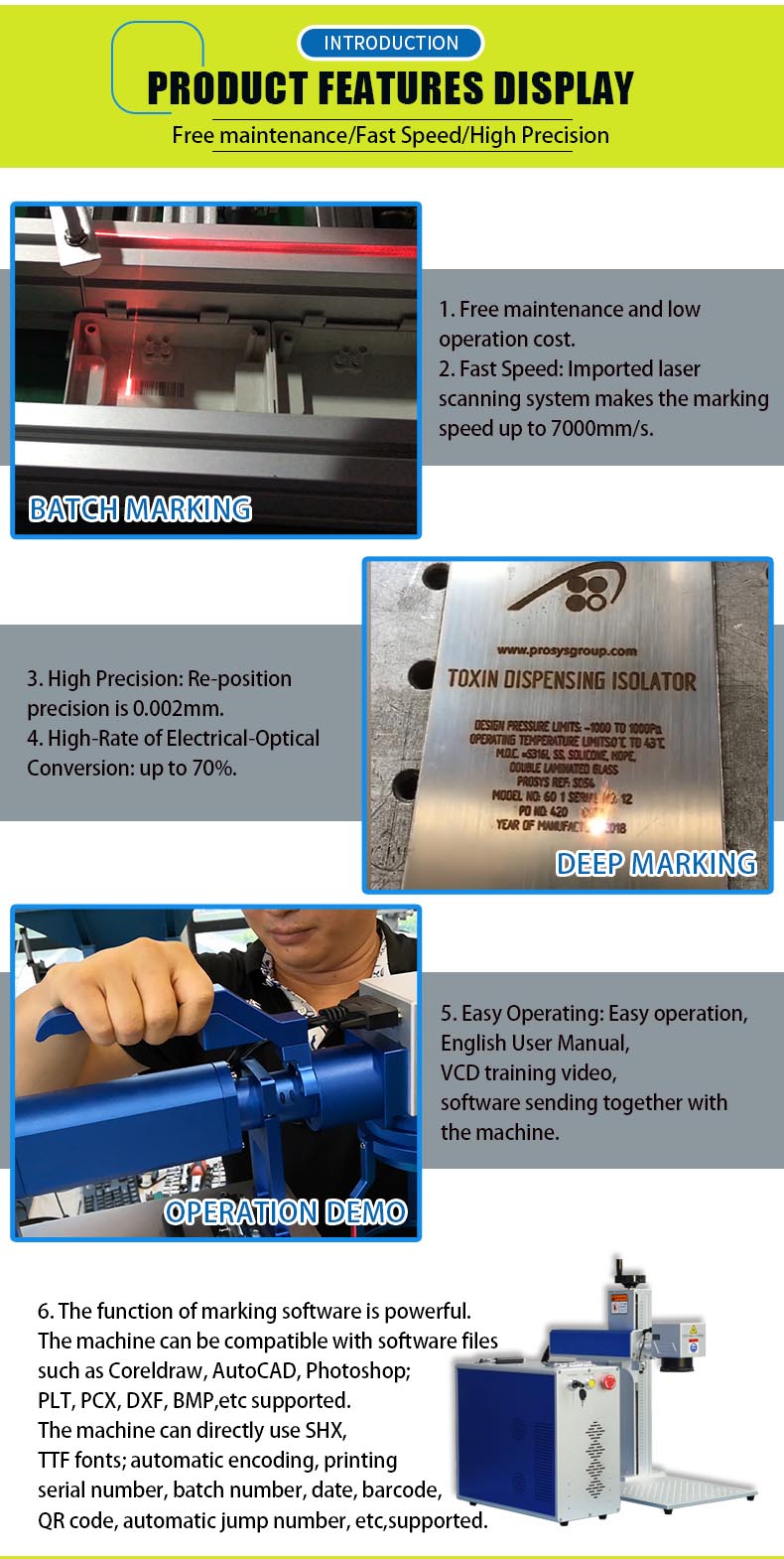

High-Rate of Electrical-Optical Conversion: up to 70%; Imported laser scanning system makes the marking speed up to 7m/s. Re-position precision is 0.002mm
Customer and Technical Support; Easy Operation, English User Manual, VCD training video, software sending together with the machine
Laser Power: 50W
Marking Area: 175*175mm
Max. Material Thinkness: 206mm
Laster Source: LP+
Repetition Rate Frequency : 1-600kHZ@
Pulse Duration: 200ns
Output power adjustment range 10%-100%
Marking Speed: 7m/s
Engraving Depth:≤1.0mm
Min. Line Width: ≤0.01mm(Depends on the material)
Min. Character: 0.2mm(Depends on the material)
Input Voltage: 110V-240V/50-60Hz
Complete Power Consumption: 1000W
Communication Mode for Automation TCP/IP, IO,RS232

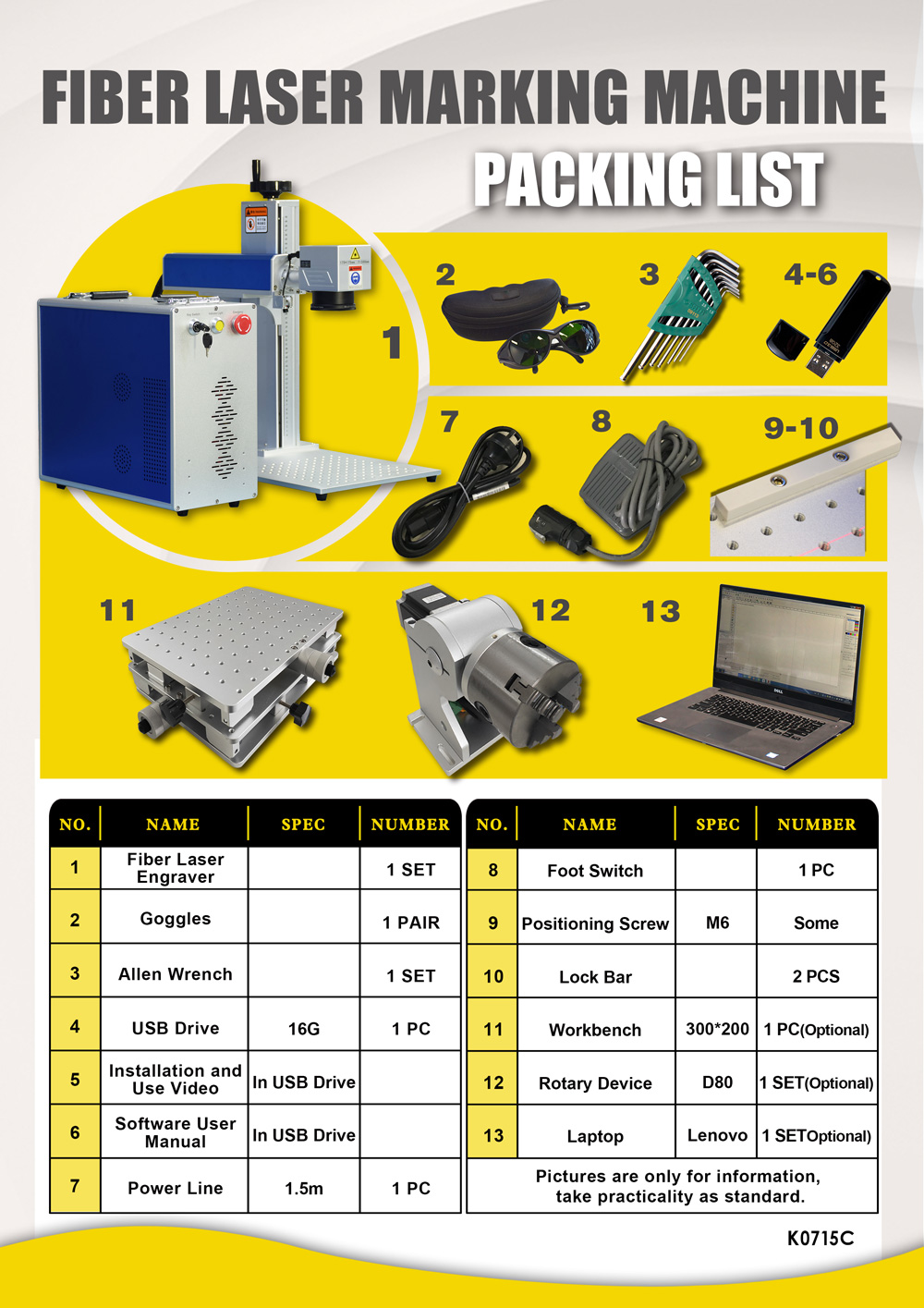

Packing Details:

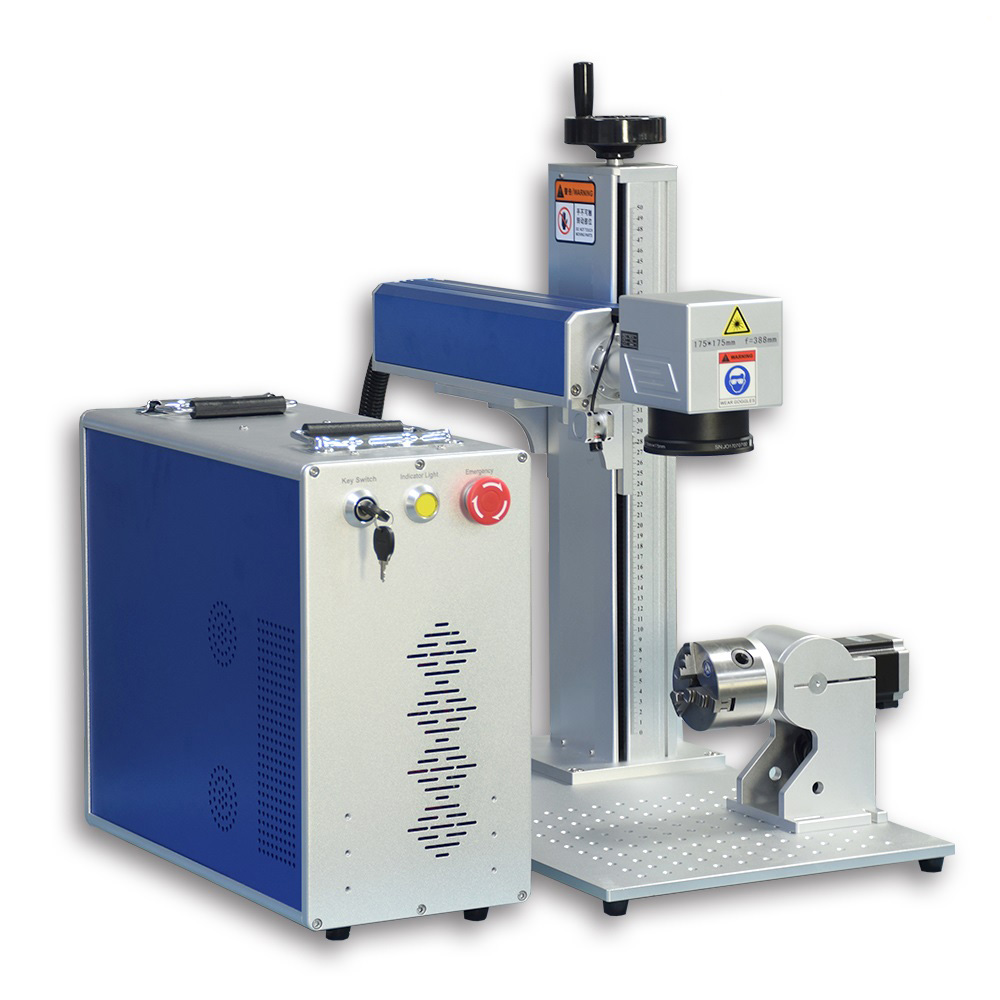

50W Fiber Laser Engraver with 175*175mm Lens

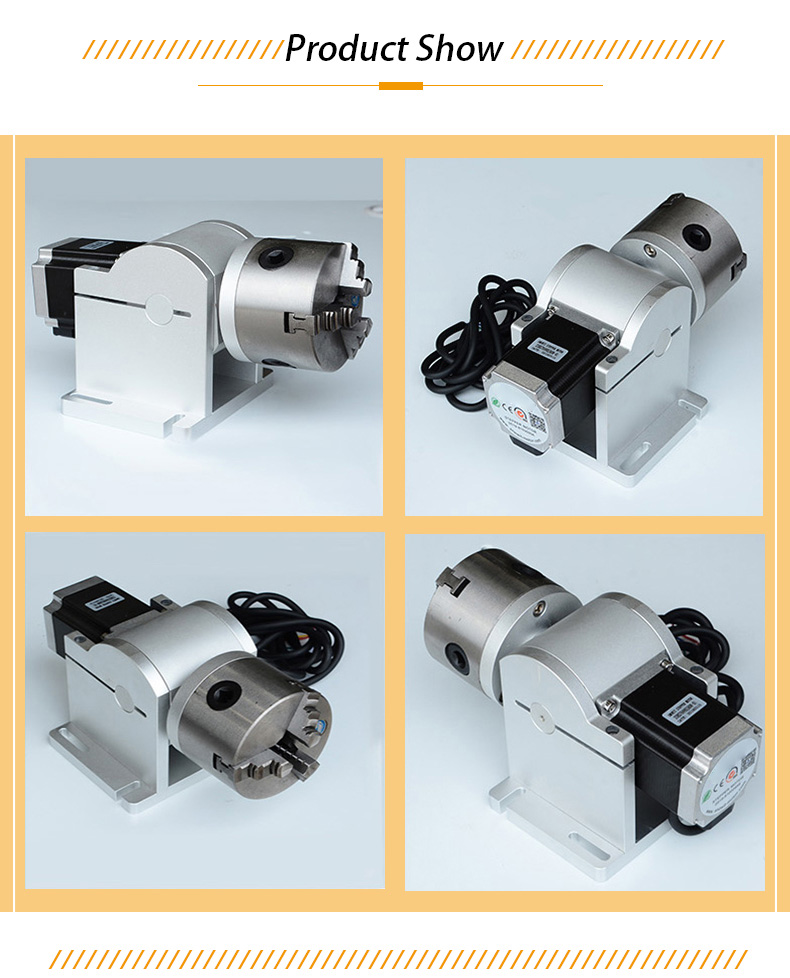

80mm Rotary Axis
Technical Parameters:
◉Laser Power: 50W
Marking Area: 175*175mm
Max. Material Thinkness: 206mm
Laster Source: LP+
Repetition Rate Frequency : 1-600kHZ@
Pulse Duration: 200ns
Output power adjustment range 10%-100%
Marking Speed: 7m/s
Engraving Depth:≤1.0mm
Min. Line Width: ≤0.01mm(Depends on the material)
Min. Character: 0.2mm(Depends on the material)
Input Voltage: 110V-240V/50-60Hz
Complete Power Consumption: 1000W
Communication Mode for Automation TCP/IP, IO,RS232
Application Advantages:
Silicone Keypad Marking
Metal Deep Engraving
Metal Surface Processing
High Frequency Line Processing
Communication Mode for Automation TCP/IP, IO,RS232
The machine can be compatible with software files such as Coredraw, AutoCAD, Photoshop;PLT,PCX,DXF,BMP,etc supported.

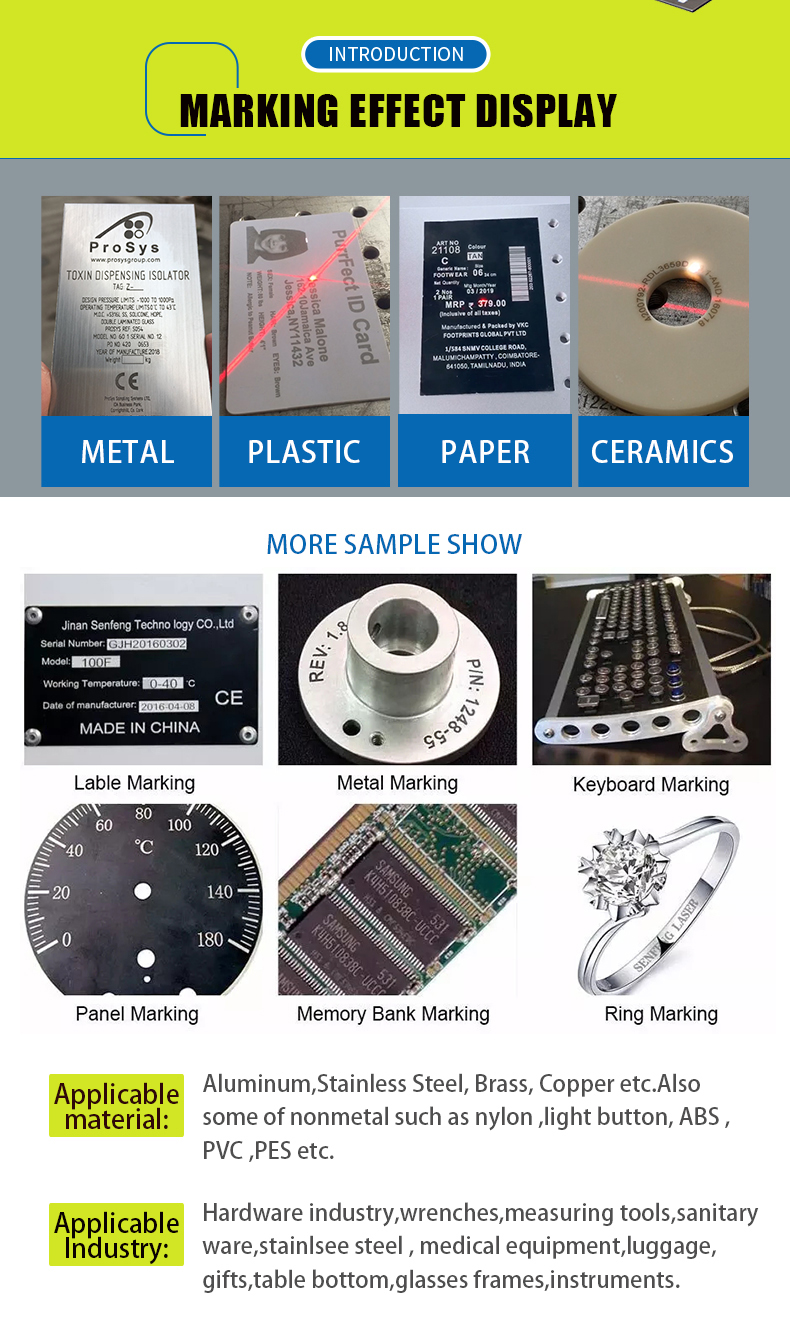

Applicable Material: Aluminum, Stainless Steel, Brass, Copper,etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.
