Laser 50W Fiber Laser Marking Machine,Fiber Laser Engraver 6.9in

Laser 50W Fiber Laser Marking Machine,Fiber Laser Engraver 6.9in
Laser 50W Fiber Laser Marking Machine,Fiber Laser Engraver 6.9in
Laser 50W Fiber Laser Marking Machine,Fiber Laser Engraver 6.9in
Laser 50W Fiber Laser Marking Machine,Fiber Laser Engraver 6.9in
Laser 50W Fiber Laser Marking Machine,Fiber Laser Engraver 6.9in
Laser 50W Fiber Laser Marking Machine,Fiber Laser Engraver 6.9in
Laser 50W Fiber Laser Marking Machine,Fiber Laser Engraver 6.9in
Laser 50W Fiber Laser Marking Machine,Fiber Laser Engraver 6.9in
Laser 50W Fiber Laser Marking Machine,Fiber Laser Engraver 6.9in
Laser 50W Fiber Laser Marking Machine,Fiber Laser Engraver 6.9in
Laser 50W Fiber Laser Marking Machine,Fiber Laser Engraver 6.9in
from
$6,249.00
Ex Tax: $6,249.00
  • Stock: In Stock
  • Model: SCJ004116
  • SKU: SCJ004116
Products Sold: 0
Product Views: 215

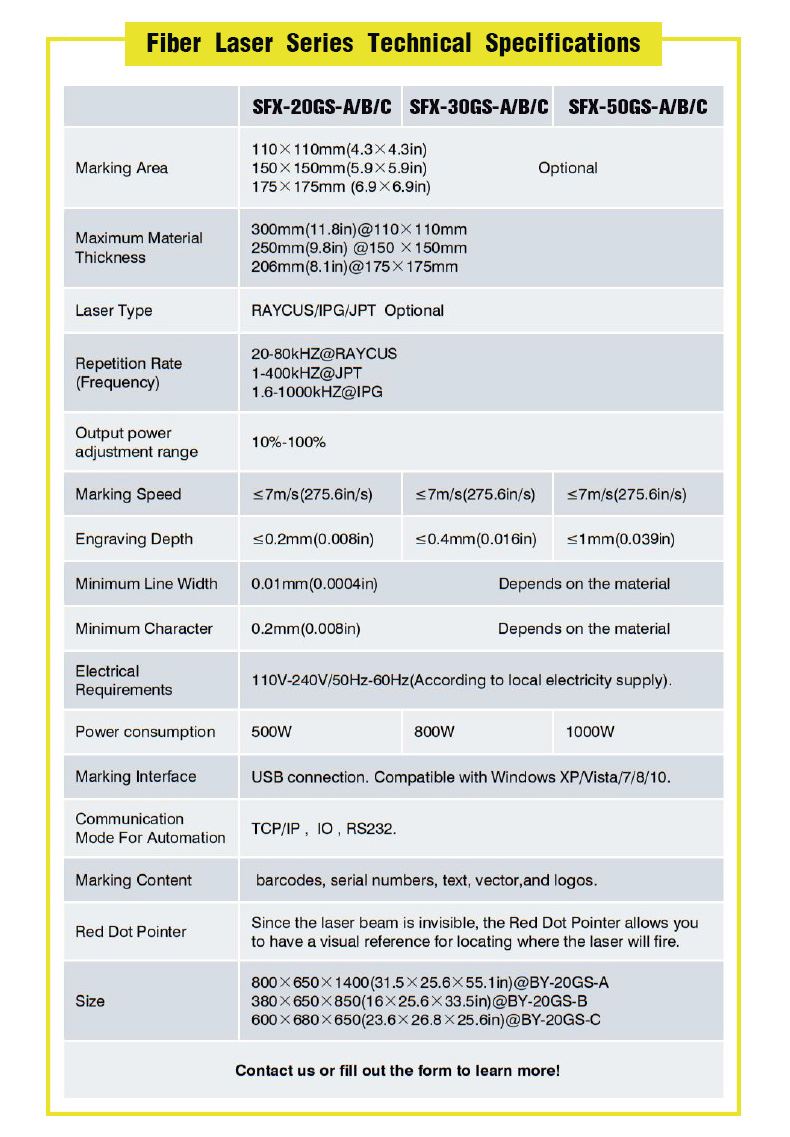

  • Specifications
attribute-list
Laser Power50W
Laser TypeJPT
Marking Area175*175mm(6.9*6.9in)
Lens Size175*175mm(6.9*6.9in) 1064nm
Lens BrandSOCOJE
Max. Material Thickness206mm(8.1in)
Repetition Rate1-600kHZ.
Pulse Duration Modulation200ns
Control boardBJ JCZ board(Original)
Package Weight62KG by Wooden Box
ProgramEZCAD Stable performance and high reliability.
Engraving Depth≤1mm(0.039in)
Output Power Adjustment Range10%-100%
Marking Speed7m/s(275.6in/s)
Min. Line Width0.01mm(0.0004in) Depends on the material
MIn. Character0.2mm(0.008in) Depends on the material
Electrical Requirements110V 50hz
PACKAGE SIZE785*485*810cm
Marking InterfaceUSB connection.Compatible with Windows XP/Vista/7/8/10.
Power Consumption1000W
Communication MODE For AutomationTCP/IP, IO, RS232
Marking ContentBarcodes,serial number,text,vector,and logos
  • Description
About this product

1. Metal Deep Engraving

2.Metal Surface Processing

3.High Frequency Line Processing

4.Silicone Keypad Marking

5.F-theta Scan Lens.Typically distortion less than 1%, Air-spaced design and high efficiency AR coatings excellent throughput and durability.

6.EZCAD Stable performance and high reliability,ensuring higher stability and shield-utilizing part of complex functions. Compatible with Windows XP/Vista/7/8/10.

7.Quickly find the focal length without using a ruler, just to see if the red dots and red lines overlap on the surface of the product which you want to mark.

8.Customer and Technical Support. Easy Operation, English User Manual and Video

SFX 50W Fiber Laser Engraver Equiped 80mm Rotary Axis,175mm (6.9in) Lens Laser Marking Machine fits Gun/Pistol/dogtag/Jewelry

Laser 50W Fiber Laser Marking Machine,Fiber Laser Engraver 6.9in

  • Marking Area:175×175mm(6.9×6.9in)     Maximum Material Thickness: 206mm(8.1in)
  • Control board : BJ JCZ board(Original)
  • Software Program : EZCAD2 (Compatible with Windows XP/Vista/7/8/10)
  • Laser Type: LP+ Lasers Repetition Rate:1-600kHZ
  • Pulse Duration: 200ns
  • Output poweradjustment range:10%-100%
  • Marking Speed:≤7000mm/s(275.6in/s)
  • Engraving Depth:≤1mm(0.024in)
  • Power consumption: 1000W
  • Electrical Requirements:110V-240V/50Hz-60Hz(According to local electricity supply).
  • Connection:USB Connection.Compatible with Windows XP/Vista/7/8/10.
Focus finder can quickly find the focal length without using a ruler, just to see if the red dots and red lines overlap on the surface of the product which you want to mark.

Laser 50W Fiber Laser Marking Machine,Fiber Laser Engraver 6.9in Laser 50W Fiber Laser Marking Machine,Fiber Laser Engraver 6.9in Laser 50W Fiber Laser Marking Machine,Fiber Laser Engraver 6.9in Laser 50W Fiber Laser Marking Machine,Fiber Laser Engraver 6.9in Laser 50W Fiber Laser Marking Machine,Fiber Laser Engraver 6.9in
