Jeans Metal Snap Button Making Machine/Snap Attaching Machine Automatic Stamping Press

Jeans Metal Snap Button Making Machine/Snap Attaching Machine Automatic Stamping Press
Jeans Metal Snap Button Making Machine/Snap Attaching Machine Automatic Stamping Press
Jeans Metal Snap Button Making Machine/Snap Attaching Machine Automatic Stamping Press
Jeans Metal Snap Button Making Machine/Snap Attaching Machine Automatic Stamping Press
Jeans Metal Snap Button Making Machine/Snap Attaching Machine Automatic Stamping Press
Jeans Metal Snap Button Making Machine/Snap Attaching Machine Automatic Stamping Press
Jeans Metal Snap Button Making Machine/Snap Attaching Machine Automatic Stamping Press
Jeans Metal Snap Button Making Machine/Snap Attaching Machine Automatic Stamping Press
Jeans Metal Snap Button Making Machine/Snap Attaching Machine Automatic Stamping Press
Jeans Metal Snap Button Making Machine/Snap Attaching Machine Automatic Stamping Press
Jeans Metal Snap Button Making Machine/Snap Attaching Machine Automatic Stamping Press
Jeans Metal Snap Button Making Machine/Snap Attaching Machine Automatic Stamping Press
Jeans Metal Snap Button Making Machine/Snap Attaching Machine Automatic Stamping Press
Jeans Metal Snap Button Making Machine/Snap Attaching Machine Automatic Stamping Press
Jeans Metal Snap Button Making Machine/Snap Attaching Machine Automatic Stamping Press
from
$28,000.00
Ex Tax: $28,000.00
  • Stock: In Stock
  • Model: SCJ006658
  • SKU: SCJ006658
Products Sold: 0
Product Views: 141

Available Options

  • Specifications
Other attributes
ConditionNew
Power SourcePneumatic
CNC or NotNormal
Place of OriginGuangdong, China
warranty:1 Year
Weight (T)14
Key Selling PointsAutomatic
Showroom LocationMalaysia
Applicable Industries:Manufacturing Plant
Marketing TypeHot Product 2019
Machinery Test ReportProvided
Body Material:Hard chromo plated
Stroke20mm/25mm/30mm
Video outgoing-inspectionProvided
Warranty of core components1 Year
Core ComponentsBearing, Pump, Gear, Motor, Gearbox, PLC, Pressure vessel, Engine
Power5.5kw
Model NumberC Type
Voltage380V/220V Optional
Capacity30Ton,45 ton, 60 ton
Dimension(L*W*H)860mm*1240mm*2188mm
Machine TypePunching Machine
Lubrication systemAuto
SPM200-900
Keyword:button making machine
Weight2909KG
Certificate:CE Certificate
Packaging and delivery
Packaging DetailsFilm package
PortSHENZHEN
Supply Ability
Supply Ability10 Set/Sets per Month
  • Description
Product Description

Jeans Metal Snap Button Making Machine/Snap Attaching Machine Automatic Stamping Press

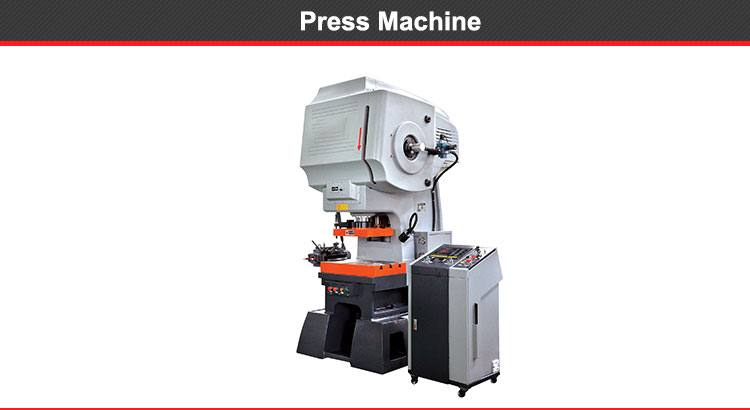

                           C-Type Precision High-Speed Press Machine

 Performances and characteristics:

Ø  Body material: used with high strength casting, hard chrome plated to make sure of high precision.

Ø  Lubrication system: special structure with automatic closed lubrication, special industrial design so those main bodies, get quicker and more natural cooling.

Ø  High precision processing equipment, strict processing guarantee, many kinds of filtration system to make sure of coefficient of kinetic friction <0.03.

Ø  Equipped with reverse dynamic balanced device to realize high speed operation and prolong useful life of main parts.

Ø  Microcomputer control system: display working status and fault. Top dead center control to remove fault easily.Misfeed detection consent.

Ø  Air pressure system: use with standard parts to make system stable.

Ø  Adjustment mould operation control system, separate structure and function to be safer, stable and precision.

Ø  For main system (air, lubrication and air pressure locked) equipped with pressure show and pressure switch protector device to make all system more stable.

Ø  Use with force cooling circulation system in the main parts to prefect transfer mechanism, meanwhile prolong useful.Operation manual

Ø  Equipped with location direction for direction device to be more precision, easy test and repair.



Model

C-30

C-45

C-60

Capacity

30T

45T

60T

Stroke of slide

20mm

25mm

30mm

20mm

30mm

40mm

25mm

30mm

40mm

50mm

SPM

200-1000

200-900

200-800

200-800

200-700

200-600

200-800

200-700

200-600

200-500

Die-Height

190-220mm

210mm-240mm

220mm-270mm

Bolster

620x300x76mm

700mmx430mmx95mm

950mmx470mmx115mm

Area of slide

320x220mm

450mmx340mm

540mmx380mm

Slide adjustment

30mm

30mm

50mm

Bed opening

100mmx300mm(400mm)

100mmx400mm(500mm)

100mmx550mm(610mm)

Motor

5.5KWx4/380V

7.5KWx4/380V

11KWx4/380V

Gross weight

2909KG

4852KG

9000KG

Lubrication

Forceful Automation

Forceful Automation

Forceful Automation

Lubricate electrical engineering

1/4HPx4P/380V

1/4HPX4P/380V

1/4HPX4P/380V

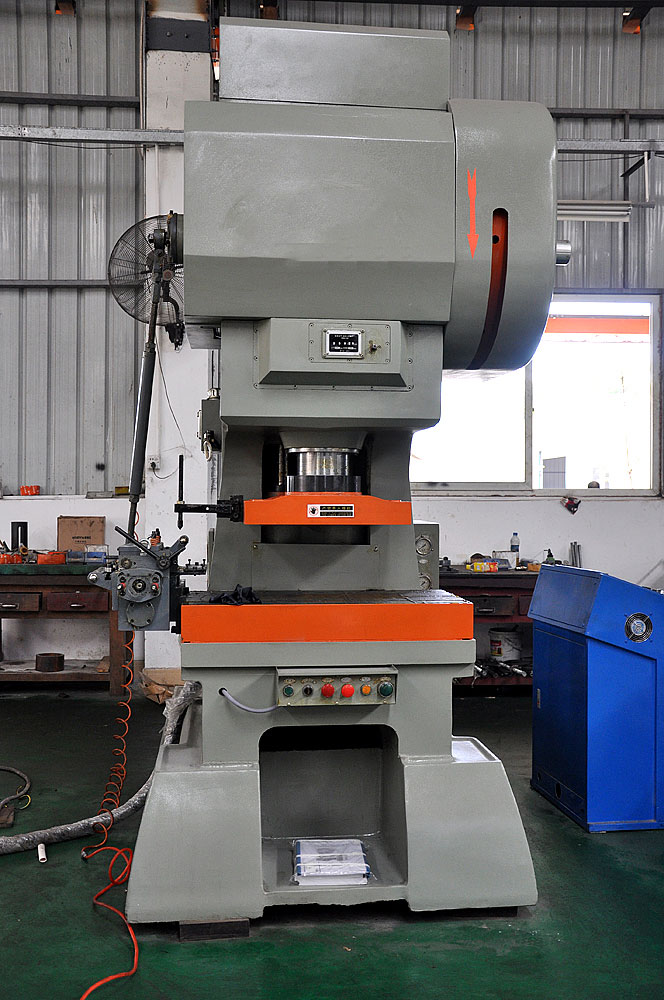

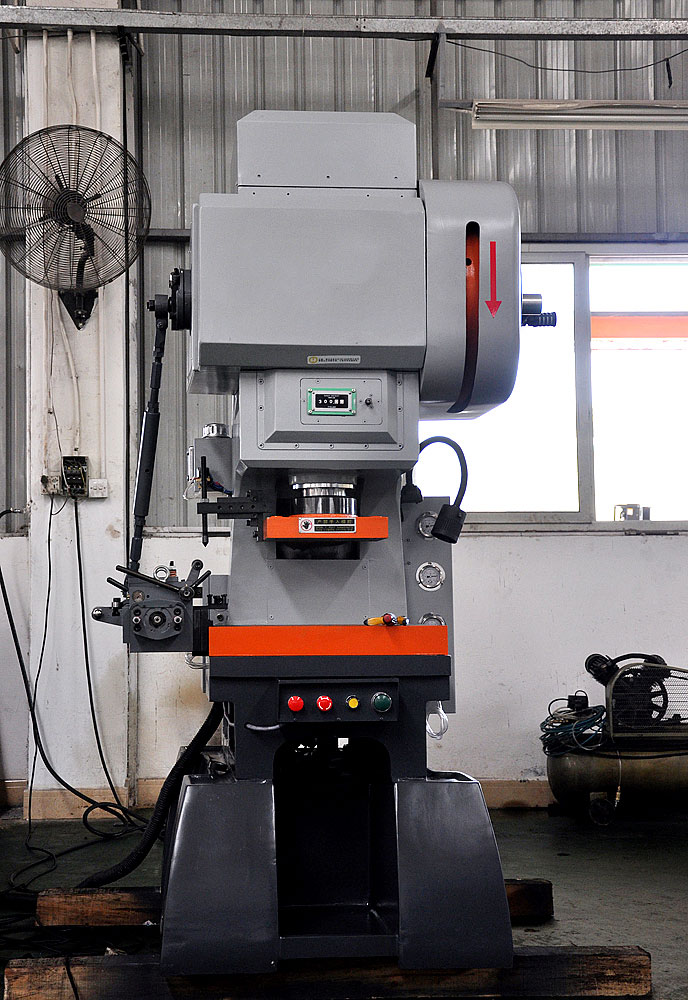

Detailed Images

 Jeans Metal Snap Button Making Machine/Snap Attaching Machine Automatic Stamping PressJeans Metal Snap Button Making Machine/Snap Attaching Machine Automatic Stamping Press
